Brake Fluid Reservoir

Maintaining your vehicle's braking system is crucial for safety and performance. One often overlooked component is the brake fluid reservoir. This small but vital part plays a significant role in ensuring your brakes function correctly. Understanding its importance, how to check it, and when to replace the brake fluid can save you from potential hazards on the road.

Table of Contents

Understanding the Brake Fluid Reservoir

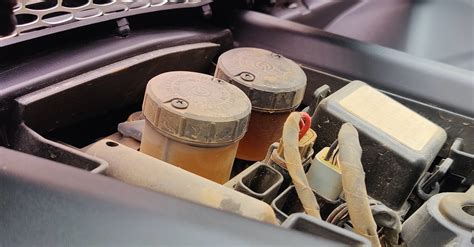

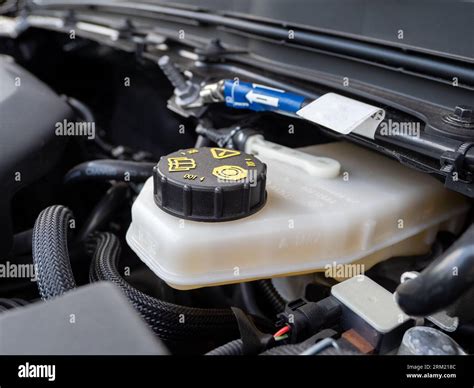

The brake fluid reservoir is a small container usually located under the hood of your vehicle. It stores the brake fluid that is essential for the hydraulic braking system to operate. When you press the brake pedal, the force is transmitted through the brake fluid to the brake calipers or wheel cylinders, which then apply pressure to the brake pads or shoes, causing the vehicle to slow down or stop.

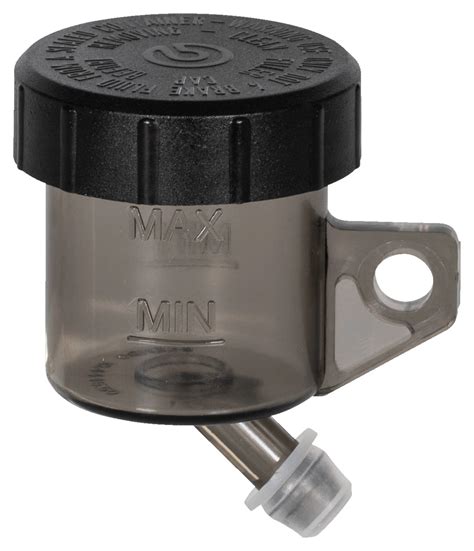

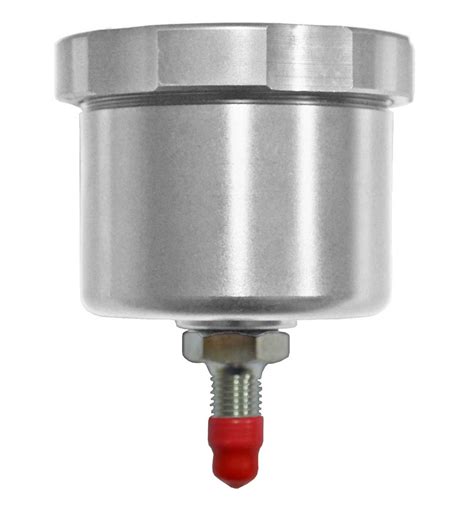

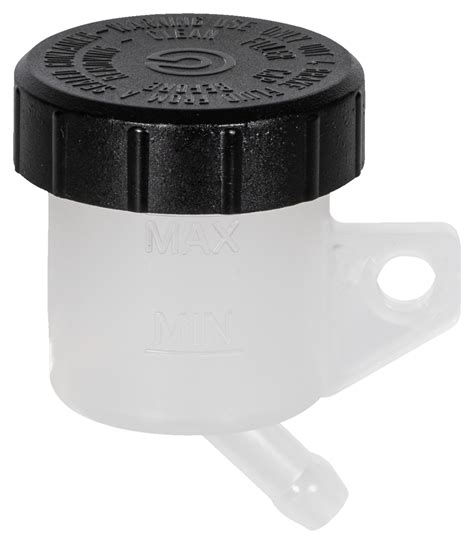

The brake fluid reservoir is typically made of plastic or metal and is designed to be transparent or semi-transparent. This allows you to easily check the fluid level. The reservoir is usually marked with "MIN" and "MAX" levels to guide you on how much fluid should be in the system.

Importance of Checking the Brake Fluid Reservoir

Regularly checking the brake fluid reservoir is a simple yet essential part of vehicle maintenance. Here are some reasons why:

Safety: Ensuring the brake fluid level is within the recommended range is crucial for the braking system to function correctly. Low brake fluid levels can lead to reduced braking performance, increasing the risk of accidents.
Preventing Damage: Brake fluid is hygroscopic, meaning it absorbs moisture over time. This can lead to corrosion and damage to the braking system components. Regular checks and fluid changes can prevent costly repairs.
Early Detection: Checking the brake fluid reservoir can help detect leaks or other issues early. If you notice a significant drop in fluid level, it could indicate a leak in the system that needs immediate attention.

How to Check the Brake Fluid Reservoir

Checking the brake fluid reservoir is a straightforward process that you can do yourself. Here are the steps:

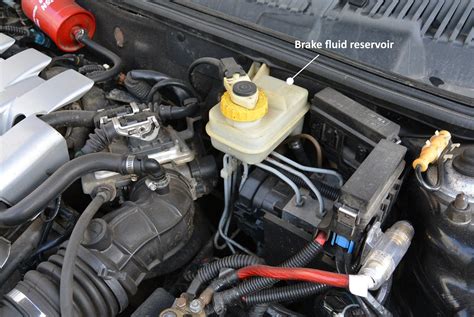

Locate the Reservoir: Open the hood of your vehicle and find the brake fluid reservoir. It is usually near the brake master cylinder and is clearly labeled.
Check the Fluid Level: Look at the side of the reservoir. You should see markings for "MIN" and "MAX." The fluid level should be between these two marks. If it is below the "MIN" mark, you need to add more brake fluid.
Inspect the Fluid Condition: The brake fluid should be clear or slightly yellowish. If it is dark brown or has a burnt smell, it may be contaminated and needs to be replaced.
Top Up if Necessary: If the fluid level is low, use a funnel to add the recommended type of brake fluid to the reservoir. Be careful not to overfill it.

🔧 Note: Always use the type of brake fluid recommended by your vehicle's manufacturer. Mixing different types of brake fluid can cause damage to the braking system.

When to Replace Brake Fluid

Brake fluid does not last forever and needs to be replaced periodically. The frequency of replacement depends on various factors, including driving conditions and the type of brake fluid used. Here are some general guidelines:

Every 2-3 Years: Most manufacturers recommend replacing the brake fluid every 2-3 years, regardless of mileage. This is because brake fluid absorbs moisture over time, which can reduce its effectiveness.
After Major Repairs: If you have had major repairs or replacements in the braking system, it is a good idea to flush and replace the brake fluid.
Contamination: If the brake fluid appears dark or has a burnt smell, it is likely contaminated and should be replaced immediately.

Signs of Brake Fluid Issues

Paying attention to the signs of brake fluid issues can help you address problems before they become serious. Here are some common indicators:

Spongy Brake Pedal: If the brake pedal feels soft or spongy when you press it, it could indicate air in the brake lines or low brake fluid levels.
Brake Warning Light: Many modern vehicles have a brake warning light that comes on if there is a problem with the braking system. This could be due to low brake fluid levels or other issues.
Leaks: If you notice a puddle of fluid under your vehicle, it could be a brake fluid leak. Brake fluid is usually clear or slightly yellowish and has a sweet smell.
Reduced Braking Performance: If your vehicle takes longer to stop or the brakes feel less responsive, it could be a sign of low or contaminated brake fluid.

Flushing the Brake Fluid

Flushing the brake fluid involves removing the old fluid and replacing it with new fluid. This process is more involved than simply topping up the reservoir and should be done by a professional if you are not comfortable doing it yourself. Here is a basic overview of the process:

Prepare the Vehicle: Park the vehicle on a level surface and engage the parking brake. Allow the engine to cool down if it has been running.
Locate the Bleeder Valves: These are usually located on the brake calipers or wheel cylinders. You will need to bleed each wheel in turn.
Attach a Bleeder Wrench: Use a bleeder wrench to open the bleeder valve slightly. Have a helper press the brake pedal slowly and hold it down.
Collect the Old Fluid: Place a container under the bleeder valve to collect the old brake fluid as it is pushed out by the pressure from the brake pedal.
Close the Valve: Once the old fluid has been expelled, close the bleeder valve and have your helper release the brake pedal.
Repeat the Process: Repeat the process for each wheel until all the old fluid has been replaced with new fluid.

🔧 Note: Always dispose of old brake fluid responsibly. It is toxic and should not be poured down drains or onto the ground.

Common Brake Fluid Types

There are several types of brake fluid, each with its own properties and recommended uses. The most common types are:

Type	Description	Recommended Use
DOT 3	Glycol-based fluid with a boiling point of around 401°F (205°C).	Most common type used in modern vehicles.
DOT 4	Glycol-based fluid with a higher boiling point of around 446°F (230°C).	Used in high-performance vehicles and some European cars.
DOT 5	Silicone-based fluid with a very high boiling point of around 500°F (260°C).	Used in some classic cars and vehicles with ABS systems.
DOT 5.1	Glycol-based fluid with a boiling point similar to DOT 4 but with improved properties.	Used in some high-performance and racing vehicles.

It is essential to use the type of brake fluid recommended by your vehicle's manufacturer. Mixing different types of brake fluid can cause damage to the braking system.

Maintaining Your Brake Fluid Reservoir

Maintaining the brake fluid reservoir is a crucial part of overall vehicle maintenance. Here are some tips to keep your brake fluid reservoir in good condition:

Regular Checks: Check the brake fluid level and condition regularly, especially before long trips.
Avoid Contamination: Keep the reservoir cap tightly closed to prevent contamination from dirt, moisture, and other debris.
Use High-Quality Fluid: Always use high-quality brake fluid that meets the specifications recommended by your vehicle's manufacturer.
Flush Periodically: Flush the brake fluid periodically to remove moisture and contaminants.

By following these tips, you can ensure that your brake fluid reservoir and the entire braking system remain in good working condition, providing you with safe and reliable braking performance.

In summary, the brake fluid reservoir is a vital component of your vehicle’s braking system. Regularly checking and maintaining it can prevent potential hazards and ensure your brakes function correctly. Understanding the signs of brake fluid issues and knowing when to replace the fluid can save you from costly repairs and keep you safe on the road. By following the guidelines and tips outlined in this post, you can maintain your brake fluid reservoir and enjoy reliable braking performance for years to come.
