Understanding the principles of gas laws is fundamental in the fields of chemistry and physics. One of the most crucial gas laws is Boyle's Law, which describes the relationship between the pressure and volume of a gas. This law is particularly useful in various scientific and industrial applications, from designing pneumatic systems to understanding respiratory mechanics. In this post, we will delve into the intricacies of Boyle's Law, explore how to create a Boyle's Law Graph, and discuss its practical applications.
Understanding Boyle’s Law

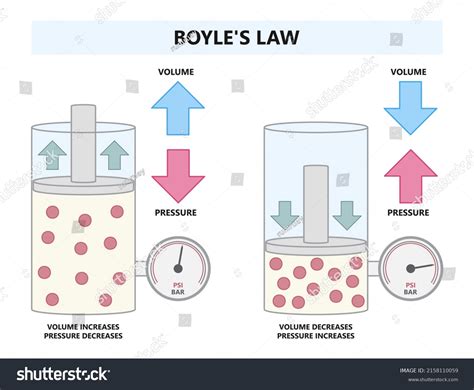

Boyle’s Law, named after the Irish physicist Robert Boyle, states that for a fixed amount of an ideal gas kept at a constant temperature, the pressure (P) and volume (V) are inversely proportional. This relationship can be mathematically expressed as:
P1V1 = P2V2
Where:
- P1 and P2 are the initial and final pressures, respectively.
- V1 and V2 are the initial and final volumes, respectively.
This law is applicable under the assumption that the gas behaves ideally, meaning that the gas molecules do not interact with each other and the volume of the molecules themselves is negligible compared to the volume of the container.

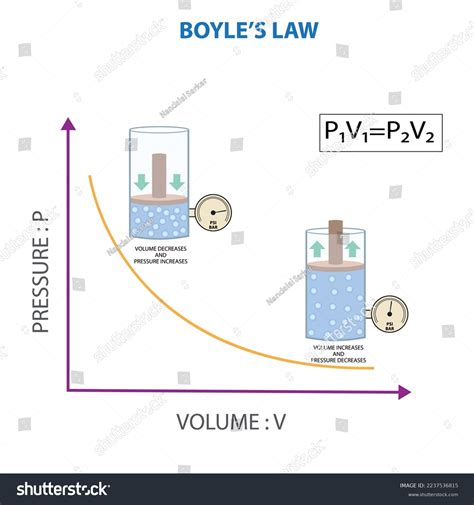

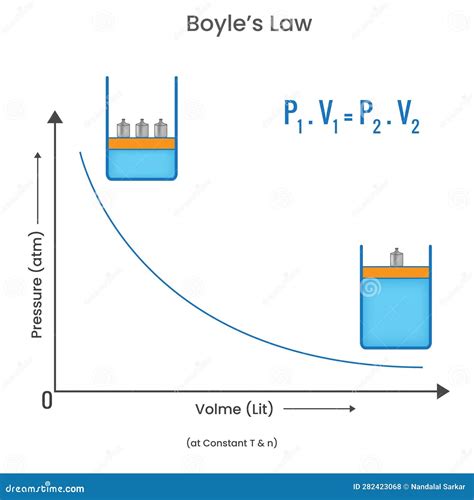

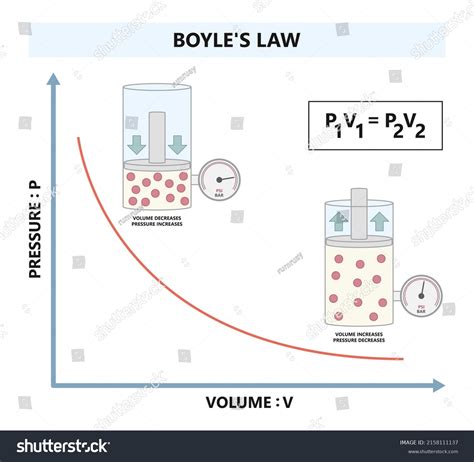

Creating a Boyle’s Law Graph
To visualize the relationship described by Boyle’s Law, a Boyle’s Law Graph is an essential tool. This graph plots the pressure of a gas against its volume, providing a clear illustration of their inverse proportionality. Here’s a step-by-step guide to creating a Boyle’s Law Graph:
Step 1: Gather Data
Collect data points that represent different pressures and corresponding volumes of a gas. Ensure that the temperature remains constant throughout the experiment. For example, you might have the following data:
| Pressure (P) | Volume (V) |
|---|---|
| 1 atm | 2 L |
| 2 atm | 1 L |
| 3 atm | 0.67 L |
| 4 atm | 0.5 L |
| 5 atm | 0.4 L |
Step 2: Plot the Data
Using graphing software or a simple spreadsheet, plot the pressure on the y-axis and the volume on the x-axis. Each data point should be plotted as a coordinate (V, P).
Step 3: Analyze the Graph
Once the data points are plotted, you should observe a hyperbolic curve. This curve illustrates the inverse relationship between pressure and volume. As the volume increases, the pressure decreases, and vice versa. The curve will approach the axes but never touch them, indicating that the pressure and volume cannot be zero simultaneously.
📝 Note: Ensure that the units for pressure and volume are consistent throughout the experiment to maintain accuracy in the graph.
Applications of Boyle’s Law
Boyle’s Law has numerous practical applications across various fields. Some of the most notable applications include:
Respiratory Mechanics
In the human body, Boyle’s Law plays a crucial role in respiratory mechanics. During inhalation, the diaphragm contracts, increasing the volume of the thoracic cavity. According to Boyle’s Law, this increase in volume leads to a decrease in pressure, allowing air to flow into the lungs. Conversely, during exhalation, the diaphragm relaxes, decreasing the volume of the thoracic cavity and increasing the pressure, which forces air out of the lungs.
Pneumatic Systems
Pneumatic systems, which use compressed air to transmit power, rely heavily on Boyle’s Law. In these systems, the pressure of the air is controlled to perform various tasks, such as operating machinery or tools. Understanding the relationship between pressure and volume is essential for designing efficient and safe pneumatic systems.
Scuba Diving
Scuba divers must be aware of Boyle’s Law to ensure their safety underwater. As a diver descends, the pressure of the water increases, compressing the air in their lungs and equipment. Divers must equalize the pressure in their bodies and equipment to avoid injuries such as decompression sickness. Boyle’s Law helps divers calculate the necessary adjustments to their equipment and breathing patterns at different depths.
Industrial Processes
In industrial settings, Boyle’s Law is used in various processes that involve gases. For example, in the production of chemicals, gases are often compressed or expanded to achieve specific reactions or conditions. Understanding Boyle’s Law allows engineers to design and optimize these processes for maximum efficiency and safety.

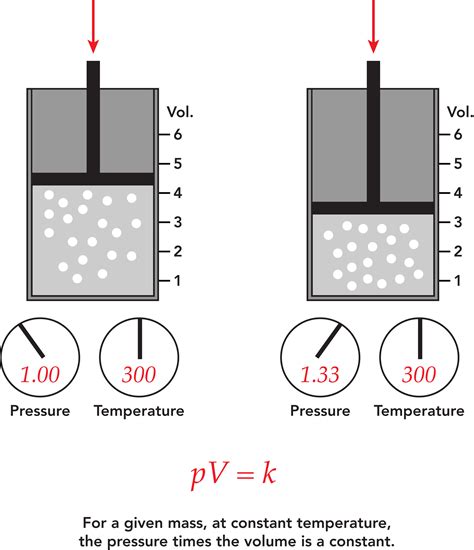

Experimental Verification of Boyle’s Law
To further illustrate the principles of Boyle’s Law, let’s consider an experimental setup to verify the law. This experiment involves measuring the pressure and volume of a gas at different conditions while keeping the temperature constant.
Materials Needed
- Gas syringe or a similar device to measure volume
- Pressure gauge
- Constant temperature bath or insulated container
- Gas (e.g., air or nitrogen)
Procedure
1. Fill the gas syringe with a known volume of gas.
2. Measure the initial pressure using the pressure gauge.
3. Gradually compress the gas by pushing the plunger of the syringe, recording the volume and corresponding pressure at each step.
4. Repeat the process for different volumes and pressures, ensuring the temperature remains constant.
5. Plot the data on a Boyle’s Law Graph to visualize the relationship between pressure and volume.
📝 Note: Ensure that the gas syringe and pressure gauge are calibrated for accurate measurements.

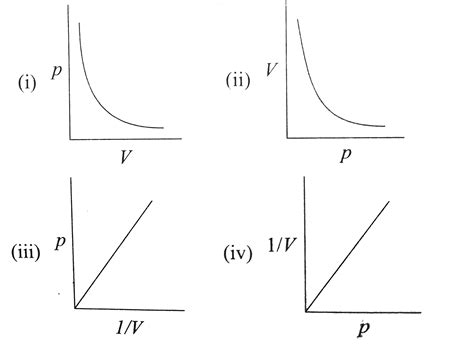

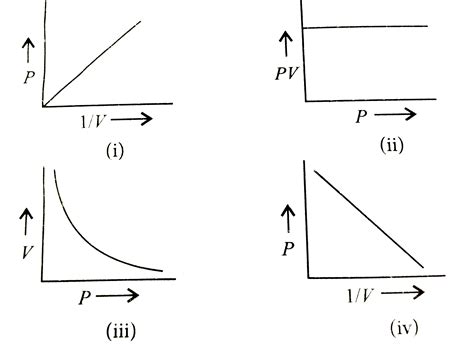

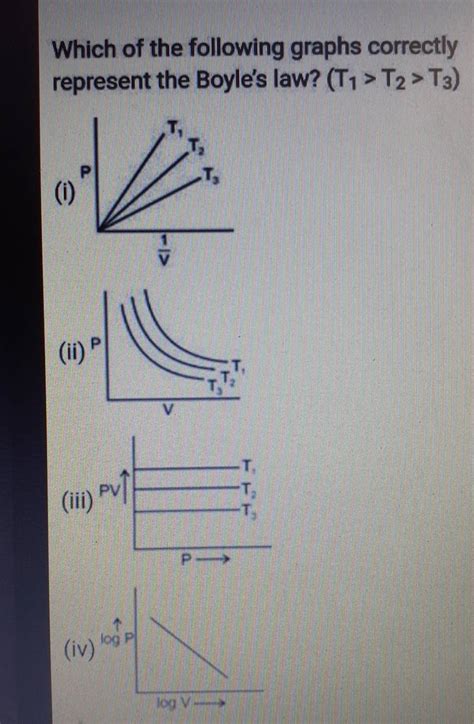

Interpreting the Boyle’s Law Graph
Interpreting a Boyle’s Law Graph involves understanding the inverse relationship between pressure and volume. The graph typically shows a hyperbolic curve, where:
- The pressure increases as the volume decreases.
- The pressure decreases as the volume increases.
This relationship is crucial for various applications, as it allows scientists and engineers to predict the behavior of gases under different conditions. For example, in respiratory mechanics, understanding this relationship helps in designing ventilators and other respiratory support devices.
In pneumatic systems, the Boyle's Law Graph aids in optimizing the performance of machinery and tools by ensuring the correct pressure and volume conditions are maintained. Similarly, in scuba diving, divers use this relationship to adjust their equipment and breathing patterns to avoid decompression sickness.
In industrial processes, the Boyle's Law Graph is essential for designing and optimizing gas compression and expansion processes. By understanding the relationship between pressure and volume, engineers can ensure that these processes are efficient and safe.
In summary, the Boyle's Law Graph is a powerful tool for visualizing and understanding the principles of Boyle's Law. It provides a clear illustration of the inverse relationship between pressure and volume, which is crucial for various scientific and industrial applications.
By conducting experiments and plotting data on a Boyle's Law Graph, scientists and engineers can verify the law and apply it to real-world problems. This understanding is essential for designing efficient and safe systems that involve gases, from respiratory support devices to industrial processes.
Boyle’s Law and its graphical representation are fundamental concepts in the study of gases. By understanding the inverse relationship between pressure and volume, we can apply this knowledge to a wide range of fields, from medicine to engineering. The Boyle’s Law Graph serves as a visual aid, helping us to comprehend and utilize this important principle in our daily lives and professional endeavors.
