Bowen's Reaction Series

Understanding the formation and composition of igneous rocks is a fundamental aspect of geology. One of the key concepts that helps geologists decipher the complexities of igneous rock formation is Bowen's Reaction Series. This series, developed by Norman L. Bowen in the early 20th century, provides a systematic framework for understanding the sequence in which minerals crystallize from a cooling magma. By examining this series, we can gain insights into the mineralogical and chemical evolution of igneous rocks.

Table of Contents

What is Bowen's Reaction Series?

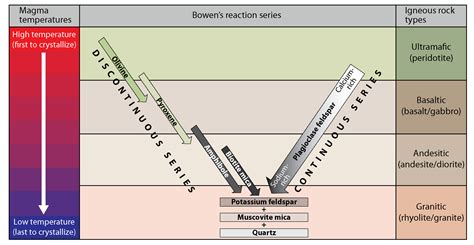

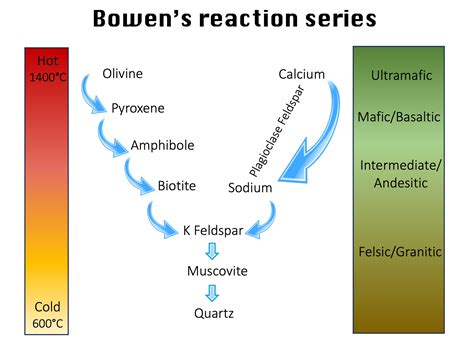

Bowen's Reaction Series is a conceptual model that describes the order in which minerals crystallize from a magma as it cools. The series is divided into two main branches: the discontinuous series and the continuous series. Each branch represents a different pathway of mineral crystallization, influenced by the chemical composition of the magma and the cooling conditions.

The Discontinuous Series

The discontinuous series, also known as the mafic series, involves the crystallization of minerals that are rich in iron and magnesium. These minerals include olivine, pyroxene, amphibole, and biotite. The sequence of crystallization in the discontinuous series is as follows:

Olivine
Pyroxene
Amphibole
Biotite

As the magma cools, these minerals crystallize in the order listed above. Each mineral has a specific temperature range at which it begins to form, and as the temperature decreases, the next mineral in the series starts to crystallize. This process continues until the magma solidifies completely.

The Continuous Series

The continuous series, also known as the felsic series, involves the crystallization of minerals that are rich in silica and aluminum. These minerals include plagioclase feldspar and potassium feldspar. The sequence of crystallization in the continuous series is as follows:

Calcium-rich plagioclase (anorthite)
Sodium-rich plagioclase (albite)
Potassium feldspar (orthoclase)

In the continuous series, the composition of the plagioclase feldspar changes gradually as the magma cools. Initially, calcium-rich plagioclase (anorthite) crystallizes. As the temperature decreases, the plagioclase becomes increasingly sodium-rich (albite). Finally, potassium feldspar (orthoclase) crystallizes. This gradual change in composition is what gives the continuous series its name.

Implications of Bowen's Reaction Series

Bowen's Reaction Series has several important implications for understanding igneous rock formation:

Mineral Composition: The series helps predict the mineral composition of igneous rocks based on the cooling history of the magma. For example, rocks formed from rapidly cooling magma will have a different mineral composition than those formed from slowly cooling magma.
Rock Classification: The series aids in the classification of igneous rocks. By identifying the minerals present in a rock and their relative abundances, geologists can determine the rock's position in the Bowen's Reaction Series and classify it accordingly.
Magma Evolution: The series provides insights into the evolution of magma. As magma cools and crystallizes, its composition changes. The minerals that crystallize first are removed from the magma, altering its chemical makeup. This process can lead to the formation of different types of igneous rocks from a single magma source.

Applications of Bowen's Reaction Series

Bowen's Reaction Series has practical applications in various fields of geology and related sciences. Some of the key applications include:

Petrology: In the study of rocks, Bowen's Reaction Series is used to understand the formation and evolution of igneous rocks. It helps petrologists interpret the mineralogical and chemical data obtained from rock samples.
Volcanology: In the study of volcanoes, the series is used to predict the types of rocks that will form from erupting magma. This information is crucial for understanding the behavior of volcanoes and assessing their potential hazards.
Economic Geology: In the search for mineral resources, Bowen's Reaction Series is used to identify potential ore deposits. Certain minerals that crystallize early in the series, such as olivine and pyroxene, are often associated with valuable metals and gemstones.

Bowen's Reaction Series and Magma Differentiation

Magma differentiation is the process by which a single magma source can produce a variety of igneous rocks with different compositions. Bowen's Reaction Series plays a crucial role in understanding this process. As magma cools and crystallizes, the early-forming minerals are removed from the magma, leaving behind a residual liquid that is enriched in certain elements. This residual liquid can then crystallize to form rocks with different mineral compositions.

For example, consider a magma that initially contains equal amounts of silica and magnesium. As the magma cools, olivine (a magnesium-rich mineral) will crystallize first. This removes magnesium from the magma, leaving behind a residual liquid that is enriched in silica. As the magma continues to cool, the residual liquid will crystallize to form rocks that are richer in silica, such as granite.

This process of magma differentiation can lead to the formation of a wide range of igneous rocks, from mafic rocks like basalt to felsic rocks like granite. Bowen's Reaction Series provides a framework for understanding how this differentiation occurs and the types of rocks that can be produced.

Bowen's Reaction Series and Plate Tectonics

Bowen's Reaction Series is also relevant to the study of plate tectonics, the theory that describes the global-scale motion of Earth's lithosphere. The series helps explain the types of igneous rocks that form at different plate boundaries. For example:

Divergent Boundaries: At divergent boundaries, where tectonic plates move apart, magma rises from the mantle and forms new crust. The magma at these boundaries is typically mafic, and the rocks that form are often basaltic. Bowen's Reaction Series helps explain the mineral composition of these basaltic rocks.
Convergent Boundaries: At convergent boundaries, where tectonic plates collide, magma can form through the melting of subducted oceanic crust. The magma at these boundaries is often more felsic, and the rocks that form can include granite and rhyolite. Bowen's Reaction Series helps explain the mineral composition of these felsic rocks.

By understanding the types of igneous rocks that form at different plate boundaries, geologists can gain insights into the processes that drive plate tectonics and the evolution of Earth's crust.

Bowen's Reaction Series and the Study of Extraterrestrial Rocks

Bowen's Reaction Series is not limited to the study of Earth's igneous rocks. It is also applied to the study of extraterrestrial rocks, such as those found on the Moon, Mars, and meteorites. By analyzing the mineral composition of these rocks and comparing them to Bowen's Reaction Series, scientists can gain insights into the formation and evolution of other planetary bodies.

For example, the study of lunar rocks has shown that the Moon's crust is primarily composed of anorthosite, a rock rich in calcium-rich plagioclase. This suggests that the Moon's magma ocean underwent a process of fractional crystallization, similar to the discontinuous series in Bowen's Reaction Series. By understanding this process, scientists can learn more about the early history of the Moon and its formation.

Similarly, the study of Martian meteorites has revealed that Mars has a more complex geological history than previously thought. The mineral composition of these meteorites suggests that Mars has undergone multiple episodes of magma differentiation, leading to the formation of a variety of igneous rocks. Bowen's Reaction Series provides a framework for understanding these processes and the evolution of Mars' crust.

📝 Note: The application of Bowen's Reaction Series to extraterrestrial rocks is an active area of research, and new discoveries continue to expand our understanding of the solar system.

Bowen's Reaction Series and the Study of Igneous Intrusions

Igneous intrusions are bodies of igneous rock that form when magma cools and solidifies beneath the Earth's surface. These intrusions can take various forms, including dikes, sills, and plutons. Bowen's Reaction Series is used to understand the mineral composition and structure of these intrusions.

For example, consider a pluton, a large igneous intrusion that forms deep within the Earth's crust. As the magma cools and crystallizes, the minerals that form will follow the sequence described in Bowen's Reaction Series. The early-forming minerals, such as olivine and pyroxene, will crystallize first and form the core of the pluton. As the magma continues to cool, the later-forming minerals, such as plagioclase and potassium feldspar, will crystallize and form the outer layers of the pluton.

This process of crystallization can lead to the formation of a zoned pluton, where the mineral composition changes from the core to the outer layers. By studying the mineral composition and structure of these zoned plutons, geologists can gain insights into the cooling history of the magma and the processes that led to the formation of the intrusion.

Bowen's Reaction Series also helps explain the formation of other types of igneous intrusions, such as dikes and sills. These intrusions form when magma is injected into fractures or between layers of rock. The mineral composition of these intrusions will depend on the cooling history of the magma and the sequence of crystallization described in Bowen's Reaction Series.

By understanding the formation and structure of igneous intrusions, geologists can gain insights into the processes that shape the Earth's crust and the evolution of the planet's geological history.

Bowen's Reaction Series and the Study of Volcanic Rocks

Volcanic rocks are igneous rocks that form from the rapid cooling and solidification of lava at the Earth's surface. These rocks can take various forms, including lava flows, pyroclastic deposits, and volcanic ash. Bowen's Reaction Series is used to understand the mineral composition and texture of these volcanic rocks.

For example, consider a lava flow that forms from the eruption of a basaltic magma. As the lava cools rapidly at the Earth's surface, the minerals that form will follow the sequence described in Bowen's Reaction Series. The early-forming minerals, such as olivine and pyroxene, will crystallize first and form the groundmass of the lava flow. As the lava continues to cool, the later-forming minerals, such as plagioclase and potassium feldspar, will crystallize and form the phenocrysts, which are larger crystals embedded in the groundmass.

This process of crystallization can lead to the formation of a porphyritic texture, where phenocrysts are surrounded by a fine-grained groundmass. By studying the mineral composition and texture of these porphyritic rocks, geologists can gain insights into the cooling history of the lava and the processes that led to the formation of the volcanic rock.

Bowen's Reaction Series also helps explain the formation of other types of volcanic rocks, such as pyroclastic deposits and volcanic ash. These rocks form from the fragmentation and rapid cooling of magma during explosive eruptions. The mineral composition of these rocks will depend on the cooling history of the magma and the sequence of crystallization described in Bowen's Reaction Series.

By understanding the formation and texture of volcanic rocks, geologists can gain insights into the processes that drive volcanic activity and the hazards associated with volcanic eruptions.

Bowen's Reaction Series is a fundamental concept in the study of igneous rocks. It provides a framework for understanding the sequence of mineral crystallization from a cooling magma and the processes that lead to the formation of different types of igneous rocks. By applying this series to the study of igneous intrusions, volcanic rocks, and extraterrestrial rocks, geologists can gain insights into the evolution of the Earth's crust and the geological history of other planetary bodies.

Bowen's Reaction Series is a powerful tool for understanding the complexities of igneous rock formation. By examining the mineral composition and texture of igneous rocks, geologists can decipher the cooling history of the magma and the processes that led to the formation of the rock. This information is crucial for understanding the geological history of the Earth and the evolution of other planetary bodies.

Bowen's Reaction Series is not just a theoretical concept; it has practical applications in various fields of geology and related sciences. By understanding the sequence of mineral crystallization and the processes that lead to the formation of different types of igneous rocks, geologists can gain insights into the behavior of volcanoes, the search for mineral resources, and the evolution of the Earth's crust. This knowledge is essential for addressing the challenges posed by natural hazards, resource depletion, and environmental change.

In conclusion, Bowen’s Reaction Series is a cornerstone of igneous petrology. It provides a systematic framework for understanding the formation and composition of igneous rocks, from the crystallization of minerals in a cooling magma to the evolution of the Earth’s crust. By applying this series to the study of igneous intrusions, volcanic rocks, and extraterrestrial rocks, geologists can gain insights into the geological history of the Earth and the processes that shape our planet. This knowledge is essential for addressing the challenges posed by natural hazards, resource depletion, and environmental change, and for advancing our understanding of the solar system and beyond.
