Pressure measurement is a critical aspect of various industries, from manufacturing and automotive to aerospace and healthcare. One of the most reliable and widely used instruments for this purpose is the Bourdon Tube Pressure Gauge. This device has been a staple in industrial settings for over a century due to its accuracy, durability, and simplicity. In this post, we will delve into the workings, types, applications, and maintenance of the Bourdon Tube Pressure Gauge, providing a comprehensive guide for professionals and enthusiasts alike.
Understanding the Bourdon Tube Pressure Gauge
The Bourdon Tube Pressure Gauge operates on the principle of the elastic deformation of a flattened, coiled tube. When pressure is applied to the tube, it tends to straighten out, and this movement is translated into a readable measurement on a dial. The design is simple yet effective, making it a popular choice for various applications.
How Does a Bourdon Tube Pressure Gauge Work?

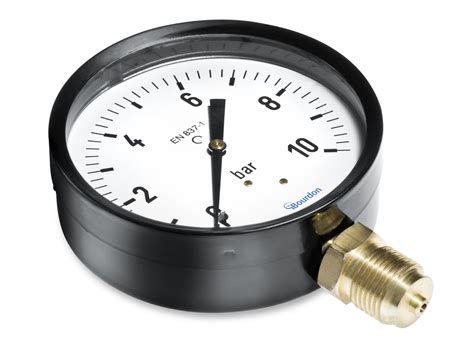

The core component of a Bourdon Tube Pressure Gauge is the Bourdon tube itself, which is a thin, flattened, and coiled tube made of materials like bronze, stainless steel, or other alloys. The tube is sealed at one end and connected to the pressure source at the other. When pressure is applied, the tube tends to straighten, and this movement is amplified through a linkage mechanism connected to a pointer on a calibrated dial.
The movement of the pointer indicates the pressure on the dial, which is typically calibrated in units such as pounds per square inch (psi), bar, or kilopascals (kPa). The gauge can measure both positive and negative pressures, making it versatile for different applications.
Types of Bourdon Tube Pressure Gauges
Bourdon Tube Pressure Gauges come in various types, each designed for specific applications and pressure ranges. Some of the most common types include:
- C-Type Gauges: These are the most common and feature a C-shaped Bourdon tube. They are suitable for general-purpose applications and can measure both low and high pressures.
- Spiral Tube Gauges: These gauges use a spiral-shaped Bourdon tube and are ideal for measuring very high pressures. They are often used in industrial settings where precision is crucial.
- Helical Tube Gauges: These gauges feature a helical (coiled) Bourdon tube and are designed for measuring very low pressures. They are commonly used in vacuum and low-pressure applications.
Each type of Bourdon Tube Pressure Gauge has its unique advantages and is chosen based on the specific requirements of the application.
Applications of Bourdon Tube Pressure Gauges
The versatility of the Bourdon Tube Pressure Gauge makes it suitable for a wide range of applications across various industries. Some of the key areas where these gauges are commonly used include:
- Industrial Manufacturing: Used to monitor pressure in pipelines, tanks, and machinery to ensure safe and efficient operation.
- Automotive: Employed in engines, brakes, and other systems to monitor pressure levels and prevent failures.
- Aerospace: Critical for monitoring pressure in aircraft systems, including hydraulic and pneumatic systems.
- Healthcare: Used in medical devices and equipment to measure pressure in various applications, such as blood pressure monitors and respiratory equipment.
- Oil and Gas: Essential for monitoring pressure in pipelines, wells, and refineries to ensure safety and efficiency.
In each of these applications, the Bourdon Tube Pressure Gauge provides accurate and reliable pressure measurements, contributing to the overall safety and efficiency of the systems.
Maintenance and Calibration of Bourdon Tube Pressure Gauges
To ensure the accuracy and longevity of a Bourdon Tube Pressure Gauge, regular maintenance and calibration are essential. Here are some key steps to follow:
- Regular Inspection: Inspect the gauge for any signs of damage, such as cracks, leaks, or corrosion. Ensure that the dial and pointer are in good condition and that the glass cover is intact.
- Cleaning: Clean the gauge to remove any dirt, dust, or debris that could affect its performance. Use a soft cloth and a mild cleaning solution to avoid damaging the gauge.
- Calibration: Calibrate the gauge periodically to ensure accurate readings. This involves comparing the gauge's readings to a known standard and adjusting the pointer as necessary. Calibration should be performed by a qualified technician to maintain the gauge's accuracy.
- Protection: Protect the gauge from extreme temperatures, vibrations, and other environmental factors that could affect its performance. Use protective covers or enclosures if necessary.
By following these maintenance steps, you can extend the lifespan of your Bourdon Tube Pressure Gauge and ensure that it continues to provide accurate and reliable pressure measurements.
🔧 Note: Always refer to the manufacturer's guidelines for specific maintenance and calibration procedures for your Bourdon Tube Pressure Gauge.
Advantages and Disadvantages of Bourdon Tube Pressure Gauges
Like any measurement instrument, the Bourdon Tube Pressure Gauge has its advantages and disadvantages. Understanding these can help you make an informed decision when choosing a pressure gauge for your application.
Advantages
- Accuracy: Bourdon Tube Pressure Gauges are known for their high accuracy and precision, making them suitable for critical applications.
- Durability: These gauges are robust and can withstand harsh environmental conditions, making them ideal for industrial settings.
- Simplicity: The design is simple and easy to understand, requiring minimal training to operate and maintain.
- Versatility: Available in various types and pressure ranges, Bourdon Tube Pressure Gauges can be used in a wide range of applications.
Disadvantages
- Limited Range: Some types of Bourdon Tube Pressure Gauges may have limited pressure ranges, making them unsuitable for very high or very low pressures.
- Sensitivity to Vibration: These gauges can be affected by vibrations, which may lead to inaccurate readings in certain environments.
- Calibration Requirements: Regular calibration is necessary to maintain accuracy, which can be time-consuming and costly.
Despite these limitations, the Bourdon Tube Pressure Gauge remains a popular choice due to its reliability and accuracy.
Choosing the Right Bourdon Tube Pressure Gauge
Selecting the right Bourdon Tube Pressure Gauge for your application involves considering several factors. Here are some key points to keep in mind:
- Pressure Range: Determine the pressure range you need to measure and choose a gauge that can handle this range.
- Material: Consider the material of the Bourdon tube, as it affects the gauge's durability and compatibility with the measured fluid.
- Environmental Conditions: Assess the environmental conditions where the gauge will be used, such as temperature, humidity, and vibration, and choose a gauge that can withstand these conditions.
- Accuracy Requirements: Determine the level of accuracy required for your application and select a gauge that meets these requirements.
- Cost: Consider the cost of the gauge, including initial purchase price, maintenance, and calibration costs.
By carefully evaluating these factors, you can choose a Bourdon Tube Pressure Gauge that best suits your needs and ensures accurate and reliable pressure measurements.
Troubleshooting Common Issues with Bourdon Tube Pressure Gauges
Even with proper maintenance, Bourdon Tube Pressure Gauges can sometimes encounter issues. Here are some common problems and their potential solutions:
- Inaccurate Readings: If the gauge is providing inaccurate readings, it may need calibration. Check the gauge against a known standard and adjust the pointer as necessary.
- Pointer Sticking: If the pointer is sticking or not moving smoothly, it may be due to dirt or debris. Clean the gauge thoroughly and lubricate the moving parts if necessary.
- Leaks: If you notice leaks around the gauge, it may be due to a damaged seal or cracked tube. Inspect the gauge for any signs of damage and replace the affected parts.
- Glass Cover Damage: If the glass cover is cracked or broken, it can affect the gauge's performance. Replace the glass cover with a new one to restore the gauge's functionality.
Regular inspection and maintenance can help prevent these issues and ensure the longevity of your Bourdon Tube Pressure Gauge.
🛠️ Note: Always follow safety procedures when handling and maintaining Bourdon Tube Pressure Gauges to avoid injuries or accidents.
Comparing Bourdon Tube Pressure Gauges with Other Types of Pressure Gauges
While the Bourdon Tube Pressure Gauge is a popular choice, there are other types of pressure gauges available. Understanding the differences can help you make an informed decision. Here is a comparison of Bourdon Tube Pressure Gauges with some other common types:
| Type of Gauge | Working Principle | Advantages | Disadvantages |
|---|---|---|---|
| Bourdon Tube Pressure Gauge | Elastic deformation of a coiled tube | High accuracy, durability, simplicity | Limited range, sensitivity to vibration |
| Diaphragm Gauge | Deflection of a flexible diaphragm | Suitable for low pressures, corrosion-resistant | Less accurate, limited pressure range |
| Piston Gauge | Movement of a piston in a cylinder | High accuracy, suitable for high pressures | Complex design, higher cost |
| Digital Pressure Gauge | Electronic sensors and displays | Easy to read, data logging capabilities | Dependent on power supply, higher cost |
Each type of pressure gauge has its unique features and is suitable for different applications. The choice depends on your specific requirements, including accuracy, pressure range, and environmental conditions.
In summary, the Bourdon Tube Pressure Gauge is a reliable and accurate instrument for measuring pressure in various applications. Its simplicity, durability, and versatility make it a popular choice in many industries. By understanding its workings, types, applications, and maintenance requirements, you can ensure that your Bourdon Tube Pressure Gauge provides accurate and reliable pressure measurements for years to come.
In conclusion, the Bourdon Tube Pressure Gauge remains a cornerstone in the field of pressure measurement, offering a blend of precision, durability, and simplicity that is hard to match. Whether you are in industrial manufacturing, automotive, aerospace, healthcare, or any other field, understanding and utilizing this gauge can significantly enhance the efficiency and safety of your operations. Regular maintenance, proper calibration, and careful selection based on your specific needs will ensure that your Bourdon Tube Pressure Gauge continues to serve you well, providing accurate and reliable pressure readings in even the most demanding environments.
