Body Tube Microscope

Exploring the microscopic world has always been a fascinating endeavor for scientists, students, and enthusiasts alike. One of the most versatile and widely used tools in this field is the Body Tube Microscope. This instrument has revolutionized the way we observe and study tiny organisms, cells, and other microscopic structures. Whether you are a professional researcher or a curious hobbyist, understanding the intricacies of a Body Tube Microscope can greatly enhance your exploration of the microscopic realm.

Table of Contents

Understanding the Body Tube Microscope

A Body Tube Microscope is a type of optical microscope that uses a series of lenses to magnify images of small objects. The body tube, which houses the optical system, is a crucial component that determines the microscope's performance and versatility. This type of microscope is often used in educational settings, laboratories, and even in some industrial applications.

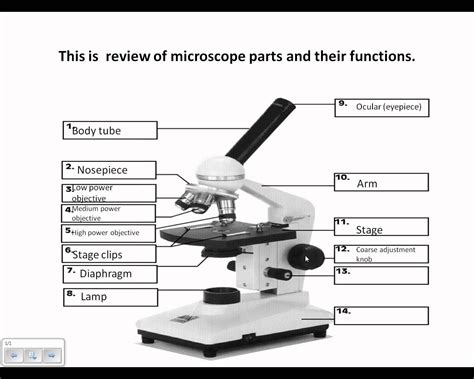

Components of a Body Tube Microscope

The Body Tube Microscope consists of several key components, each playing a vital role in its functionality:

Eyepiece (Ocular Lens): This is the lens at the top of the microscope that you look through. It typically has a magnification power of 10x or 15x.

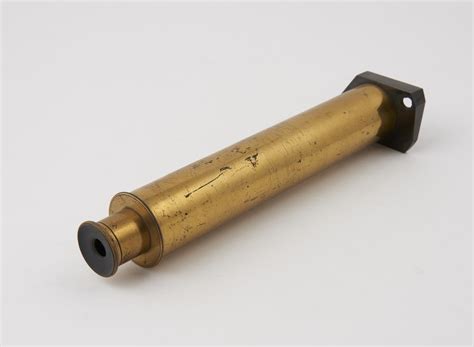

Body Tube: This is the main tube that connects the eyepiece to the objective lenses. It houses the optical system and ensures that the light path is correctly aligned.
Objective Lenses: These are the lenses closest to the specimen. They come in various magnifications, usually 4x, 10x, 40x, and 100x. The objective lenses are responsible for the primary magnification of the specimen.
Stage: This is the flat platform where you place the specimen. It often has clips to hold the slide in place and can be moved up and down to focus the image.
Illuminator: This is the light source, usually a bulb or LED, that provides the light necessary to view the specimen.
Diaphragm or Iris: This controls the amount of light that reaches the specimen. It is essential for adjusting the contrast and brightness of the image.
Coarse and Fine Adjustment Knobs: These knobs are used to focus the microscope. The coarse adjustment knob moves the stage up and down in larger increments, while the fine adjustment knob makes smaller, more precise movements.
Base: This is the bottom part of the microscope that provides stability and support.

Types of Body Tube Microscopes

There are several types of Body Tube Microscopes, each designed for specific purposes:

Compound Microscopes: These are the most common type of Body Tube Microscope. They use a combination of objective lenses and an eyepiece to achieve high magnification levels, typically up to 1000x.
Stereo Microscopes: Also known as dissecting microscopes, these provide a three-dimensional view of the specimen. They are often used for examining larger specimens or for tasks that require depth perception.
Inverted Microscopes: These microscopes have the light source and condenser above the stage, with the objective lenses below. They are commonly used in cell culture and microbiology.
Phase-Contrast Microscopes: These microscopes use phase contrast to enhance the contrast of transparent specimens, making them ideal for viewing living cells.

Setting Up a Body Tube Microscope

Setting up a Body Tube Microscope correctly is essential for obtaining clear and accurate images. Here are the steps to follow:

Place the Microscope on a Stable Surface: Ensure the microscope is on a flat, stable surface to avoid vibrations that can affect the image quality.
Connect the Power Source: If your microscope has an electric illuminator, plug it in and turn it on.
Adjust the Light Intensity: Use the diaphragm or iris to control the amount of light reaching the specimen. Start with a low light intensity and adjust as needed.
Prepare the Specimen: Place the specimen on a slide and secure it with clips on the stage.
Focus the Microscope: Start with the lowest power objective lens (usually 4x). Use the coarse adjustment knob to bring the specimen into focus, then switch to the fine adjustment knob for a clearer image.
Switch to Higher Magnification: Once the specimen is in focus with the lowest power objective, you can switch to higher power objectives for more detailed viewing. Always use the fine adjustment knob when switching to higher magnifications.

🔍 Note: Always start with the lowest power objective lens and gradually increase the magnification to avoid damaging the specimen or the microscope.

Maintaining a Body Tube Microscope

Proper maintenance of a Body Tube Microscope is crucial for ensuring its longevity and performance. Here are some tips for maintaining your microscope:

Clean the Lenses: Use lens paper and a suitable lens cleaning solution to clean the eyepiece and objective lenses. Avoid using tissues or cloth that can scratch the lenses.
Store Properly: When not in use, store the microscope in a dry, dust-free environment. Cover it with a dust cover to protect it from dust and debris.
Handle with Care: Always handle the microscope with care. Avoid dropping or bumping it, as this can damage the delicate optical components.
Regular Inspections: Regularly inspect the microscope for any signs of wear or damage. Replace any worn-out parts promptly to maintain optimal performance.

Applications of Body Tube Microscopes

The Body Tube Microscope has a wide range of applications across various fields. Some of the most common applications include:

Educational Institutions: Schools and universities use Body Tube Microscopes for teaching students about cellular structures, microorganisms, and other microscopic entities.
Medical Laboratories: These microscopes are essential for diagnosing diseases by examining blood samples, tissue samples, and other biological specimens.
Research Laboratories: Researchers use Body Tube Microscopes to study cellular processes, genetic material, and other microscopic phenomena.
Industrial Applications: In industries such as semiconductor manufacturing and quality control, Body Tube Microscopes are used to inspect small components and ensure product quality.

Choosing the Right Body Tube Microscope

Selecting the right Body Tube Microscope depends on your specific needs and budget. Here are some factors to consider when choosing a microscope:

Magnification Power: Determine the level of magnification you need. For general use, a microscope with 40x to 1000x magnification is sufficient. For more specialized tasks, higher magnification may be required.
Optical Quality: High-quality optics ensure clear and sharp images. Look for microscopes with high-quality lenses and coatings.
Durability: Choose a microscope made from durable materials that can withstand regular use and handling.
Ease of Use: Consider the ease of use, especially if the microscope will be used by students or beginners. Features like ergonomic design and intuitive controls can make a significant difference.
Budget: Determine your budget and look for a microscope that offers the best value for your money. Keep in mind that higher-priced models often come with better features and durability.

💡 Note: It's essential to read reviews and seek recommendations from professionals in your field to ensure you choose a microscope that meets your specific needs.

Advanced Features of Body Tube Microscopes

Modern Body Tube Microscopes come with advanced features that enhance their functionality and usability. Some of these features include:

Digital Imaging: Many microscopes now come with digital cameras that allow you to capture and analyze images digitally. This feature is particularly useful for research and documentation purposes.
LED Illumination: LED illumination provides brighter and more consistent light compared to traditional bulbs. It also reduces heat, which can be beneficial for observing living specimens.
Motorized Stages: Motorized stages allow for precise and automated movement of the specimen, making it easier to navigate and capture images.
Software Integration: Some microscopes come with software that allows for image analysis, measurement, and documentation. This can be particularly useful for research and educational purposes.

Common Issues and Troubleshooting

Even with proper care, Body Tube Microscopes can encounter issues. Here are some common problems and their solutions:

Issue	Solution
Blurry Images	Check the focus and ensure the specimen is properly placed. Clean the lenses if necessary.
Low Contrast	Adjust the diaphragm or iris to control the amount of light reaching the specimen.
Flickering Light	Check the power source and ensure the bulb or LED is functioning correctly.
Difficulty Focusing	Ensure the microscope is on a stable surface and that the specimen is properly secured.

🛠️ Note: Regular maintenance and proper handling can prevent many common issues. Always refer to the manufacturer's guidelines for specific troubleshooting steps.

In conclusion, the Body Tube Microscope is an indispensable tool for exploring the microscopic world. Whether you are a student, researcher, or enthusiast, understanding the components, setup, and maintenance of a Body Tube Microscope can greatly enhance your ability to observe and study microscopic structures. By choosing the right microscope and taking proper care of it, you can ensure that your exploration of the microscopic realm is both rewarding and efficient.
