Blowing Out Sprinkler System

Maintaining a sprinkler system is crucial for keeping your lawn lush and green, especially during the hot summer months. One essential task that often gets overlooked is blowing out sprinkler system. This process is vital for preventing damage from freezing temperatures and ensuring the system's longevity. This guide will walk you through the steps of blowing out your sprinkler system, providing tips and best practices to make the process smooth and effective.

Table of Contents

Understanding the Importance of Blowing Out Your Sprinkler System

Blowing out your sprinkler system is a critical maintenance task that should be performed annually, typically in the fall before the first frost. The primary goal is to remove any water that may be trapped in the pipes, valves, and sprinkler heads. If water freezes inside the system, it can expand and cause significant damage, leading to costly repairs. By properly blowing out the system, you can prevent these issues and ensure that your sprinkler system is ready to go when spring arrives.

Gathering the Necessary Equipment

Before you begin the process of blowing out your sprinkler system, it's essential to gather all the necessary equipment. Here's a list of items you'll need:

Air compressor with a CFM (cubic feet per minute) rating suitable for your sprinkler system size
Air compressor hose
Quick-connect adapter
Safety glasses
Ear protection
Gloves

Ensure that your air compressor is in good working condition and has the appropriate CFM rating for your sprinkler system. A typical residential system requires an air compressor with a CFM rating of at least 80-100. If you're unsure about the specific requirements, consult the manufacturer's guidelines or a professional.

Preparing Your Sprinkler System for Blowing Out

Before you start blowing out the system, there are several preparatory steps you should follow:

Turn off the water supply to the sprinkler system. This is usually done at the main water shut-off valve.
Open all the manual drain valves to allow any remaining water to drain out.
Turn on the sprinkler system manually to release any water trapped in the pipes and sprinkler heads.
Disconnect the sprinkler system from the main water supply. This step is crucial to prevent any water from entering the system during the blowing out process.

Once you've completed these steps, you're ready to connect the air compressor to your sprinkler system.

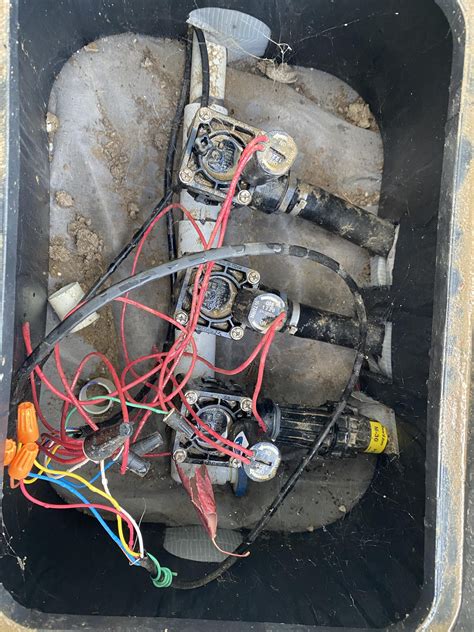

Connecting the Air Compressor

Connecting the air compressor to your sprinkler system involves a few straightforward steps:

Attach the quick-connect adapter to the air compressor hose.
Connect the other end of the hose to the sprinkler system's main water supply line. Ensure the connection is secure to prevent air leaks.
Put on your safety glasses, ear protection, and gloves to protect yourself from debris and noise.

With the air compressor connected, you're now ready to begin blowing out the sprinkler system.

Blowing Out the Sprinkler System

Blowing out the sprinkler system involves using the air compressor to force air through the pipes, valves, and sprinkler heads, removing any remaining water. Follow these steps for an effective blowing out process:

Start the air compressor and set the pressure to around 50-60 PSI. This pressure range is generally safe for most residential sprinkler systems.
Open the nearest zone valve to the air compressor and allow the air to flow through the system. Listen for the sound of water being forced out of the sprinkler heads.
Continue this process for each zone in your sprinkler system, moving from the closest to the farthest from the air compressor.
After blowing out each zone, close the zone valve and move on to the next one.

It's essential to monitor the air pressure and adjust it as needed to ensure that all water is removed from the system. If you notice that the air pressure is too high, reduce it to prevent damaging the sprinkler heads or pipes.

Once you've blown out all the zones, turn off the air compressor and disconnect the hose from the sprinkler system.

🔧 Note: If you encounter any resistance or hear unusual noises while blowing out the system, it may indicate a blockage or damage. In such cases, consult a professional to inspect and repair the system.

Final Steps and Winterization

After blowing out the sprinkler system, there are a few final steps to ensure it's properly winterized:

Turn off the air compressor and disconnect the hose from the sprinkler system.
Close all manual drain valves to prevent water from entering the system during the winter.
Cover any exposed sprinkler heads or pipes with insulation to protect them from freezing temperatures.
Store any removable components, such as quick-connect adapters or hoses, in a dry place to prevent damage.

By following these steps, you can ensure that your sprinkler system is properly winterized and ready to withstand the cold temperatures.

Blowing out your sprinkler system is a crucial maintenance task that should not be overlooked. By removing any remaining water from the pipes, valves, and sprinkler heads, you can prevent damage from freezing temperatures and ensure the system's longevity. With the right equipment and a systematic approach, you can effectively blow out your sprinkler system and prepare it for the winter months.

If you're unsure about any aspect of the process or encounter issues, it's always a good idea to consult a professional. They can provide expert guidance and ensure that your sprinkler system is properly maintained and winterized.

In addition to blowing out the system, regular inspections and maintenance can help extend the life of your sprinkler system. Check for any signs of wear and tear, such as leaks, clogs, or damaged sprinkler heads, and address them promptly to prevent more significant issues.

By taking care of your sprinkler system and performing regular maintenance, you can enjoy a lush, green lawn year after year. Properly blowing out the system is just one part of a comprehensive maintenance plan that includes regular inspections, repairs, and winterization.

In conclusion, blowing out your sprinkler system is an essential task that should be performed annually to prevent damage from freezing temperatures. By following the steps outlined in this guide, you can effectively remove any remaining water from the system and ensure its longevity. With the right equipment and a systematic approach, you can prepare your sprinkler system for the winter months and enjoy a healthy lawn when spring arrives.
