Pulleys are simple machines that have been used for centuries to make work easier. Among the various types of pulleys, Block and Tackle Pulleys stand out due to their efficiency and versatility. These systems are designed to lift heavy loads with minimal effort, making them indispensable in various industries, from construction to marine applications. This blog post will delve into the mechanics, types, applications, and benefits of Block and Tackle Pulleys, providing a comprehensive understanding of these essential tools.
Understanding Block and Tackle Pulleys

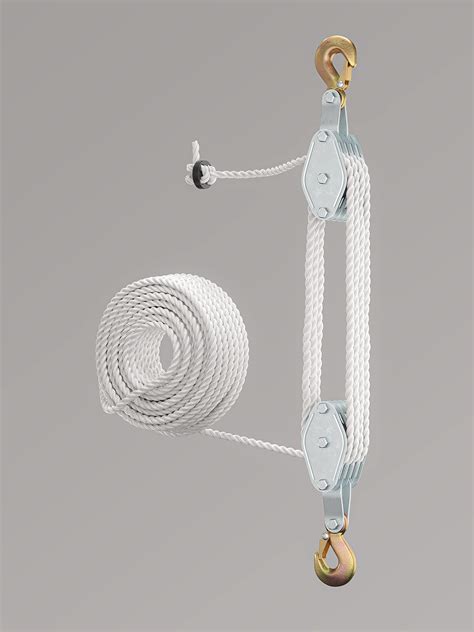

Block and Tackle Pulleys consist of two main components: the block and the tackle. The block is a set of pulleys mounted on a frame, while the tackle is the rope or cable that runs through the pulleys. The system works by distributing the weight of the load across multiple pulleys, reducing the amount of force required to lift it. This mechanical advantage is what makes Block and Tackle Pulleys so effective.
Mechanics of Block and Tackle Pulleys

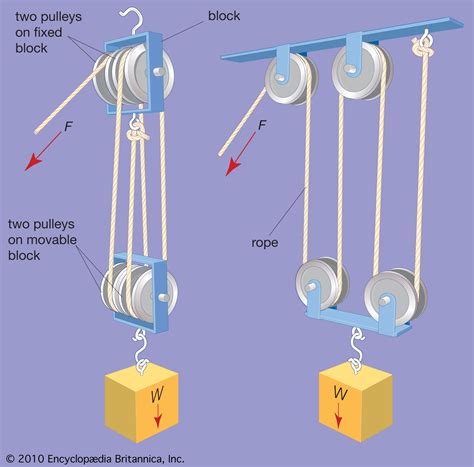

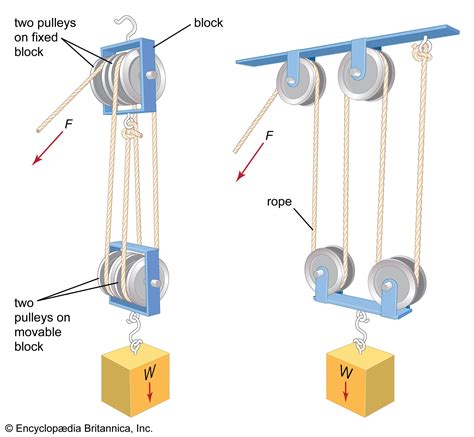

The mechanical advantage of a Block and Tackle system is determined by the number of pulleys in the block. The more pulleys there are, the greater the mechanical advantage. The formula to calculate the mechanical advantage (MA) is:
MA = Number of supporting strands
For example, a system with three pulleys in the block and one pulley in the tackle will have a mechanical advantage of 4. This means that the force required to lift the load is one-fourth of the load's weight.
Types of Block and Tackle Pulleys
Block and Tackle Pulleys come in various configurations, each suited to different applications. The main types include:
- Single Purchase: This is the simplest form, with one pulley in the block and one in the tackle. It provides a mechanical advantage of 2.
- Double Purchase: This configuration has two pulleys in the block and two in the tackle, offering a mechanical advantage of 4.
- Triple Purchase: With three pulleys in the block and three in the tackle, this system provides a mechanical advantage of 6.
- Gun Tackle: This is a specialized type used in sailing, featuring a block with multiple sheaves and a tackle with a single sheave.
Applications of Block and Tackle Pulleys
Block and Tackle Pulleys are used in a wide range of applications due to their efficiency and reliability. Some of the most common uses include:
- Construction: Used for lifting heavy materials and equipment to great heights.
- Marine: Essential for raising sails, anchors, and other heavy loads on boats and ships.
- Theater: Employed in stage productions to move sets and props.
- Industrial: Utilized in factories for moving heavy machinery and materials.
- Rescue Operations: Used by emergency services to lift and move injured individuals or heavy debris.
Benefits of Block and Tackle Pulleys
Block and Tackle Pulleys offer several advantages that make them a preferred choice for many applications:
- Efficiency: They significantly reduce the amount of force required to lift heavy loads, making tasks easier and faster.
- Versatility: Available in various configurations to suit different needs and load capacities.
- Durability: Built to withstand heavy use and harsh conditions, ensuring long-lasting performance.
- Safety: Designed with safety features to prevent accidents and ensure secure lifting.
Maintenance and Safety Tips
Maintaining Block and Tackle Pulleys is crucial for their longevity and safe operation. Here are some key tips:
- Regular Inspection: Check for any signs of wear and tear, such as frayed ropes or damaged pulleys.
- Lubrication: Keep the moving parts well-lubricated to reduce friction and prevent rust.
- Load Limits: Never exceed the recommended load capacity to avoid accidents.
- Proper Storage: Store the pulleys in a dry, clean place to prevent damage from moisture and dirt.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and safety to ensure the longevity and safe operation of your Block and Tackle Pulleys.
Choosing the Right Block and Tackle Pulley
Selecting the appropriate Block and Tackle Pulley depends on several factors, including the load capacity, the type of application, and the environment in which it will be used. Here are some considerations to keep in mind:
- Load Capacity: Ensure the pulley system can handle the weight of the load you intend to lift.
- Mechanical Advantage: Choose a system with the right number of pulleys to achieve the desired mechanical advantage.
- Material: Select a pulley made from durable materials suitable for the environment, such as stainless steel for marine applications.
- Safety Features: Look for systems with built-in safety features like locking mechanisms and overload protection.
Here is a table to help you choose the right Block and Tackle Pulley based on your needs:
| Application | Recommended Type | Mechanical Advantage |
|---|---|---|
| Construction | Double or Triple Purchase | 4-6 |
| Marine | Gun Tackle | Varies |
| Theater | Single or Double Purchase | 2-4 |
| Industrial | Triple Purchase | 6 |
| Rescue Operations | Double Purchase | 4 |
Conclusion
Block and Tackle Pulleys are indispensable tools in various industries, offering efficiency, versatility, and durability. Understanding their mechanics, types, applications, and benefits can help you choose the right system for your needs. Regular maintenance and adherence to safety guidelines ensure the longevity and safe operation of these essential tools. Whether in construction, marine, theater, industrial, or rescue operations, Block and Tackle Pulleys continue to be a reliable solution for lifting heavy loads with minimal effort.
