Binomial Distribution Chart

Understanding probability distributions is fundamental in statistics and data analysis. One of the most widely used distributions is the Binomial Distribution, which describes the number of successes in a fixed number of independent Bernoulli trials with the same probability of success. Visualizing this distribution through a Binomial Distribution Chart can provide valuable insights into the likelihood of different outcomes. This post will delve into the intricacies of the Binomial Distribution, how to create a Binomial Distribution Chart, and its applications in various fields.

Table of Contents

Understanding the Binomial Distribution

The Binomial Distribution is characterized by two parameters: the number of trials (n) and the probability of success (p). It is used when there are only two possible outcomes for each trial, typically labeled as success and failure. The probability mass function of a Binomial Distribution is given by:

P(X = k) = (n choose k) * p^k * (1-p)^(n-k)

where:

n is the number of trials
k is the number of successes
p is the probability of success on an individual trial

For example, if you flip a coin 10 times (n = 10) and the probability of getting heads (success) is 0.5 (p = 0.5), the Binomial Distribution will help you determine the likelihood of getting a specific number of heads.

Creating a Binomial Distribution Chart

A Binomial Distribution Chart is a graphical representation of the Binomial Distribution. It helps visualize the probability of different numbers of successes in a given number of trials. Here’s a step-by-step guide to creating a Binomial Distribution Chart:

Step 1: Define the Parameters

Determine the number of trials (n) and the probability of success (p). For instance, if you are conducting a survey with 20 questions (n = 20) and each question has a 70% chance of being answered correctly (p = 0.7), these will be your parameters.

Step 2: Calculate the Probabilities

Use the Binomial Distribution formula to calculate the probability of each possible number of successes (k). This can be done manually for small values of n or using statistical software for larger values.

Step 3: Plot the Data

Create a bar chart where the x-axis represents the number of successes (k) and the y-axis represents the probability of each outcome. Each bar in the chart will correspond to a specific number of successes and its associated probability.

Here is an example of how to create a Binomial Distribution Chart using Python and the matplotlib library:

import matplotlib.pyplot as plt
import numpy as np
from scipy.stats import binom

# Define the parameters
n = 20
p = 0.7

# Generate the Binomial Distribution
k = np.arange(0, n + 1)
probabilities = binom.pmf(k, n, p)

# Create the Binomial Distribution Chart
plt.bar(k, probabilities, color='blue')
plt.xlabel('Number of Successes (k)')
plt.ylabel('Probability')
plt.title('Binomial Distribution Chart')
plt.show()

💡 Note: Ensure that you have the necessary libraries installed (matplotlib, numpy, scipy) before running the code.

Applications of the Binomial Distribution Chart

The Binomial Distribution Chart has numerous applications across various fields. Here are a few key areas where it is commonly used:

Quality Control

In manufacturing, the Binomial Distribution can help determine the likelihood of defective items in a batch. By plotting the Binomial Distribution Chart, quality control managers can identify the probability of different numbers of defective items and take appropriate actions to maintain quality standards.

Market Research

Market researchers often use the Binomial Distribution to analyze survey results. For example, if a survey asks 100 respondents whether they prefer Product A or Product B, the Binomial Distribution Chart can show the probability of different numbers of respondents preferring Product A.

Medical Studies

In medical research, the Binomial Distribution is used to analyze the outcomes of clinical trials. For instance, if a new drug is tested on 50 patients and the probability of success (improvement in condition) is 0.6, the Binomial Distribution Chart can help researchers understand the likelihood of different numbers of successful outcomes.

Sports Analytics

Sports analysts use the Binomial Distribution to predict the outcomes of games and tournaments. For example, in basketball, the probability of making a free throw can be modeled using the Binomial Distribution. By creating a Binomial Distribution Chart, analysts can determine the likelihood of different numbers of successful free throws in a game.

Interpreting the Binomial Distribution Chart

Interpreting a Binomial Distribution Chart involves understanding the shape and distribution of the probabilities. Here are some key points to consider:

Symmetry: When the probability of success (p) is 0.5, the Binomial Distribution is symmetric. As p deviates from 0.5, the distribution becomes skewed.
Peak: The peak of the distribution indicates the most likely number of successes. For example, if n = 10 and p = 0.5, the peak will be at k = 5, indicating that getting 5 successes is the most probable outcome.
Spread: The spread of the distribution depends on the number of trials (n). As n increases, the distribution becomes more spread out, reflecting the increased variability in the number of successes.

Here is an example of a Binomial Distribution Chart for n = 10 and p = 0.5:

Number of Successes (k)	Probability
0	0.001
1	0.010
2	0.044
3	0.117
4	0.205
5	0.246
6	0.205
7	0.117
8	0.044
9	0.010
10	0.001

This chart shows that the most likely number of successes is 5, with a probability of 0.246. The probabilities decrease symmetrically as you move away from the peak.

Advanced Topics in Binomial Distribution

For those looking to delve deeper into the Binomial Distribution, there are several advanced topics to explore:

Cumulative Distribution Function (CDF)

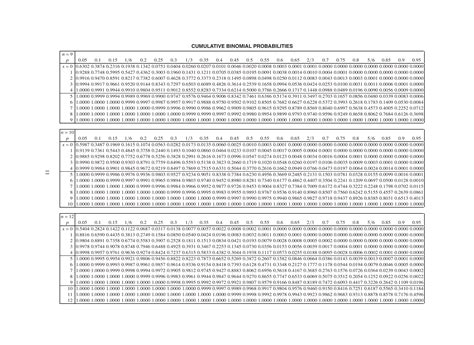

The CDF of a Binomial Distribution gives the probability that the number of successes is less than or equal to a certain value. It is calculated as the sum of the probabilities of all outcomes up to that value. The CDF is useful for determining the likelihood of achieving a certain number of successes or fewer.

Normal Approximation

When the number of trials (n) is large, the Binomial Distribution can be approximated by a Normal Distribution. This approximation is useful for simplifying calculations and making inferences about the distribution. The mean of the Normal Distribution is np, and the standard deviation is sqrt(np(1-p)).

Confidence Intervals

Confidence intervals can be constructed for the proportion of successes in a Binomial Distribution. These intervals provide a range within which the true proportion is likely to fall, given a certain level of confidence. Confidence intervals are essential for making statistical inferences and decisions based on sample data.

In summary, the Binomial Distribution and its visual representation through a Binomial Distribution Chart are powerful tools in statistics and data analysis. By understanding the parameters, creating the chart, and interpreting the results, you can gain valuable insights into the likelihood of different outcomes in various scenarios. Whether you are in quality control, market research, medical studies, or sports analytics, the Binomial Distribution Chart can help you make informed decisions and predictions.
