Choosing the right bike can be a daunting task, especially with the myriad of options available in the market. One of the most crucial aspects to consider is the bike dimensions chart. This chart provides essential measurements that help ensure a comfortable and efficient riding experience. Understanding the bike dimensions chart is key to selecting a bike that fits your body type and riding style.
Understanding Bike Dimensions
Bike dimensions refer to the various measurements of a bicycle that affect its fit, handling, and overall performance. These dimensions include the frame size, wheelbase, head tube angle, seat tube angle, and more. Each of these measurements plays a vital role in determining how the bike will feel and perform.
Importance of a Bike Dimensions Chart
A bike dimensions chart is an invaluable tool for both novice and experienced cyclists. It provides a comprehensive overview of the bike’s specifications, allowing you to make an informed decision. Here are some reasons why a bike dimensions chart is important:
- Fit and Comfort: The chart helps you determine if the bike will fit your body proportions, ensuring a comfortable riding experience.
- Performance: Different dimensions affect the bike’s handling and performance. For example, a longer wheelbase provides stability, while a shorter one offers agility.
- Safety: Proper bike dimensions ensure that you can control the bike effectively, reducing the risk of accidents.
- Customization: Knowing the dimensions allows you to customize the bike to better suit your needs, such as adjusting the seat height or handlebar position.
Key Measurements in a Bike Dimensions Chart
When reviewing a bike dimensions chart, you will encounter several key measurements. Understanding these measurements is essential for making the right choice.
Frame Size
The frame size is one of the most important measurements in a bike dimensions chart. It is typically measured from the center of the bottom bracket to the top of the seat tube. Frame size directly affects the bike’s fit and comfort. A properly sized frame ensures that you can reach the handlebars and pedals comfortably, reducing the risk of strain or injury.
Wheelbase
The wheelbase is the distance between the centers of the front and rear wheels. It influences the bike’s stability and handling. A longer wheelbase provides more stability, making it ideal for touring or commuting bikes. Conversely, a shorter wheelbase offers better maneuverability, suitable for racing or mountain biking.
Head Tube Angle
The head tube angle is the angle between the head tube and the horizontal plane. It affects the bike’s steering and handling. A steeper head tube angle makes the bike more responsive and agile, while a slacker angle provides stability at high speeds.
Seat Tube Angle
The seat tube angle is the angle between the seat tube and the horizontal plane. It influences the riding position and comfort. A steeper seat tube angle places the rider in a more upright position, suitable for casual riding or commuting. A slacker angle positions the rider more forward, ideal for racing or performance-oriented riding.
Chainstay Length
The chainstay length is the distance between the bottom bracket and the rear dropout. It affects the bike’s stability and handling. Shorter chainstays provide better maneuverability, while longer chainstays offer more stability.
Top Tube Length
The top tube length is the distance between the head tube and the seat tube. It influences the reach and comfort of the rider. A longer top tube provides a more stretched-out riding position, suitable for performance-oriented riding. A shorter top tube offers a more compact riding position, ideal for casual or commuting bikes.
How to Use a Bike Dimensions Chart
Using a bike dimensions chart effectively involves understanding your body measurements and comparing them with the bike’s specifications. Here are the steps to follow:
Measure Your Body
Before consulting a bike dimensions chart, measure your body dimensions. Key measurements include:
- Inseam: Measure from the floor to your crotch while standing barefoot.
- Torso Length: Measure from the base of your neck to your waist.
- Arm Length: Measure from your shoulder to your wrist.
Compare with Bike Dimensions
Once you have your body measurements, compare them with the bike dimensions chart. Look for a bike that matches your inseam for the frame size and ensures that the top tube length and seat tube angle provide a comfortable riding position.
Test Ride
If possible, take a test ride on the bike. This will give you a firsthand feel of the bike’s fit and handling. Pay attention to how comfortable the riding position is and whether you can reach the handlebars and pedals easily.
🔍 Note: Always prioritize comfort and fit over aesthetics or brand reputation. A well-fitting bike will enhance your riding experience and reduce the risk of injuries.
Common Bike Types and Their Dimensions
Different types of bikes have varying dimensions to suit their intended use. Here are some common bike types and their typical dimensions:
Road Bikes
Road bikes are designed for speed and efficiency on paved roads. They typically have:
- Frame Size: Ranges from 48cm to 62cm, depending on the rider’s height.
- Wheelbase: Generally longer for stability at high speeds.
- Head Tube Angle: Steeper for responsive handling.
- Seat Tube Angle: Slacker for a more aerodynamic position.
Mountain Bikes
Mountain bikes are built for off-road terrain and rugged conditions. They usually feature:
- Frame Size: Ranges from 13” to 23”, with larger sizes for taller riders.
- Wheelbase: Shorter for better maneuverability.
- Head Tube Angle: Slacker for stability on rough terrain.
- Seat Tube Angle: Steeper for better control and balance.
Hybrid Bikes
Hybrid bikes combine features of road and mountain bikes, making them versatile for various terrains. They typically have:
- Frame Size: Ranges from 15” to 22”, suitable for a wide range of riders.
- Wheelbase: Moderate for a balance of stability and maneuverability.
- Head Tube Angle: Moderate for versatile handling.
- Seat Tube Angle: Moderate for a comfortable upright position.
Touring Bikes
Touring bikes are designed for long-distance riding and carrying heavy loads. They usually feature:
- Frame Size: Ranges from 50cm to 62cm, with larger sizes for taller riders.
- Wheelbase: Longer for stability and load-carrying capacity.
- Head Tube Angle: Slacker for stability at high speeds.
- Seat Tube Angle: Slacker for a more comfortable riding position.

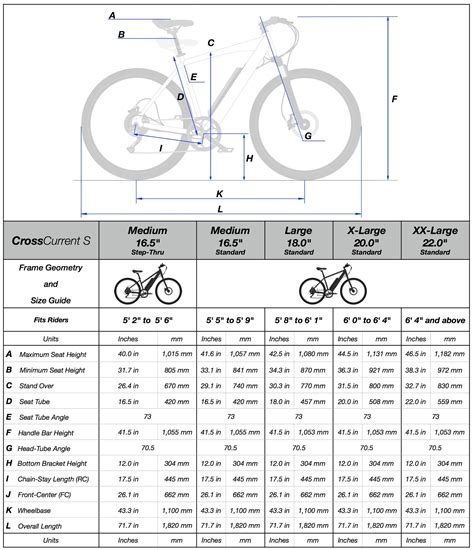

Bike Dimensions Chart Examples
Here are some examples of bike dimensions charts for different types of bikes:
Road Bike Dimensions Chart
| Measurement | 48cm Frame | 52cm Frame | 56cm Frame | 60cm Frame |
|---|---|---|---|---|
| Wheelbase | 990mm | 1010mm | 1030mm | 1050mm |
| Head Tube Angle | 73 degrees | 73 degrees | 73 degrees | 73 degrees |
| Seat Tube Angle | 74 degrees | 74 degrees | 74 degrees | 74 degrees |
| Chainstay Length | 410mm | 415mm | 420mm | 425mm |
| Top Tube Length | 520mm | 540mm | 560mm | 580mm |
Mountain Bike Dimensions Chart
| Measurement | 15” Frame | 17” Frame | 19” Frame | 21” Frame |
|---|---|---|---|---|
| Wheelbase | 1050mm | 1070mm | 1090mm | 1110mm |
| Head Tube Angle | 68 degrees | 68 degrees | 68 degrees | 68 degrees |
| Seat Tube Angle | 72 degrees | 72 degrees | 72 degrees | 72 degrees |
| Chainstay Length | 430mm | 435mm | 440mm | 445mm |
| Top Tube Length | 550mm | 570mm | 590mm | 610mm |
Hybrid Bike Dimensions Chart
| Measurement | 15” Frame | 17” Frame | 19” Frame | 21” Frame |
|---|---|---|---|---|
| Wheelbase | 1060mm | 1080mm | 1100mm | 1120mm |
| Head Tube Angle | 71 degrees | 71 degrees | 71 degrees | 71 degrees |
| Seat Tube Angle | 73 degrees | 73 degrees | 73 degrees | 73 degrees |
| Chainstay Length | 420mm | 425mm | 430mm | 435mm |
| Top Tube Length | 560mm | 580mm | 600mm | 620mm |
Touring Bike Dimensions Chart
| Measurement | 50cm Frame | 54cm Frame | 58cm Frame | 62cm Frame |
|---|---|---|---|---|
| Wheelbase | 1080mm | 1100mm | 1120mm | 1140mm |
| Head Tube Angle | 72 degrees | 72 degrees | 72 degrees | 72 degrees |
| Seat Tube Angle | 73 degrees | 73 degrees | 73 degrees | 73 degrees |
| Chainstay Length | 440mm | 445mm | 450mm | 455mm |
| Top Tube Length | 570mm | 590mm | 610mm | 630mm |
Conclusion
Understanding the bike dimensions chart is crucial for selecting a bike that fits your body type and riding style. By familiarizing yourself with key measurements such as frame size, wheelbase, head tube angle, seat tube angle, chainstay length, and top tube length, you can make an informed decision. Whether you are a road cyclist, mountain biker, hybrid rider, or touring enthusiast, the bike dimensions chart provides the necessary information to ensure a comfortable and efficient riding experience. Always prioritize fit and comfort over aesthetics, and consider taking a test ride to confirm that the bike meets your needs. With the right bike dimensions, you can enhance your cycling journey and enjoy the ride to the fullest.
