Understanding the Bh3 Lewis Structure is fundamental for anyone studying chemistry, particularly those delving into molecular geometry and bonding. The Lewis structure, named after Gilbert N. Lewis, is a diagrammatic representation of the valence electrons in a molecule. It helps visualize the bonding between atoms and the lone pairs of electrons. In this post, we will explore the Bh3 Lewis Structure, its significance, and how to draw it step-by-step.
What is the Bh3 Lewis Structure?
The Bh3 Lewis Structure represents the molecular structure of the boron trihydride molecule. Boron trihydride (BH3) is a simple molecule consisting of one boron atom and three hydrogen atoms. Understanding its Lewis structure involves knowing the valence electrons of each atom and how they are arranged to form bonds.
Valence Electrons and Octet Rule
Before diving into the Bh3 Lewis Structure, it’s essential to understand valence electrons and the octet rule. Valence electrons are the electrons in the outermost shell of an atom and are crucial for forming chemical bonds. The octet rule states that atoms tend to form bonds to achieve a stable electron configuration with eight valence electrons, similar to the noble gases.
Drawing the Bh3 Lewis Structure
Drawing the Bh3 Lewis Structure involves several steps. Here’s a detailed guide:
Step 1: Determine the Total Number of Valence Electrons
First, identify the total number of valence electrons in the molecule. Boron (B) has 3 valence electrons, and each hydrogen (H) has 1 valence electron. Since there are three hydrogen atoms, the total number of valence electrons is:
3 (from boron) + 3 × 1 (from hydrogen) = 6 valence electrons.
Step 2: Choose the Central Atom
The central atom in the Bh3 Lewis Structure is boron (B) because it is the least electronegative element in the molecule. Hydrogen atoms will surround the boron atom.
Step 3: Connect the Atoms with Single Bonds
Draw single bonds between the boron atom and each hydrogen atom. Each single bond represents 2 electrons. Since there are three hydrogen atoms, you will use 6 electrons to form three single bonds.
Step 4: Distribute Remaining Electrons
After forming the single bonds, there are no remaining electrons to distribute as lone pairs. All valence electrons are used in bonding.
Step 5: Check the Octet Rule
In the Bh3 Lewis Structure, the boron atom has only 6 electrons around it, which does not satisfy the octet rule. However, boron can form stable compounds with fewer than 8 electrons, a concept known as the expanded octet.
Step 6: Verify the Structure
Ensure that the structure is correct by checking the total number of valence electrons and the bonds formed. The Bh3 Lewis Structure should have 6 valence electrons distributed in 3 single bonds, with no lone pairs.
Importance of the Bh3 Lewis Structure
The Bh3 Lewis Structure is crucial for understanding the properties and behavior of boron trihydride. It helps in predicting the molecule’s reactivity, stability, and bonding characteristics. Additionally, it serves as a foundation for more complex molecular structures involving boron and other elements.
Molecular Geometry of Bh3

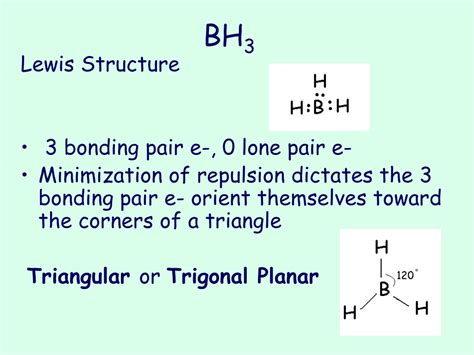

The molecular geometry of BH3 is trigonal planar. This means that the boron atom is at the center, and the three hydrogen atoms are arranged in a plane around it, forming a triangle. The bond angles are approximately 120 degrees, which is characteristic of a trigonal planar geometry.
Electron Deficiency in Bh3
One notable feature of the Bh3 Lewis Structure is its electron deficiency. Boron has only 6 valence electrons, which means it does not have a complete octet. This deficiency makes BH3 a strong Lewis acid, capable of accepting electron pairs from Lewis bases to form adducts.
Applications of Bh3
Boron trihydride (BH3) has several applications in chemistry and industry. It is used as a reducing agent in organic synthesis and as a precursor in the production of other boron compounds. Its Lewis acidity makes it useful in catalytic reactions and as a reagent in various chemical processes.
Comparing Bh3 with Other Boron Compounds
To better understand the Bh3 Lewis Structure, it’s helpful to compare it with other boron compounds. For example, diborane (B2H6) has a more complex structure with bridging hydrogen atoms, while boron trifluoride (BF3) has a trigonal planar geometry similar to BH3 but with different bonding characteristics.
Here is a comparison table for better understanding:
| Compound | Lewis Structure | Molecular Geometry | Electron Deficiency |
|---|---|---|---|
| BH3 | Trigonal planar with 3 single bonds | Trigonal planar | Yes |
| B2H6 | Complex with bridging hydrogen atoms | Non-planar | Yes |
| BF3 | Trigonal planar with 3 single bonds | Trigonal planar | No |
📝 Note: The electron deficiency in BH3 makes it a strong Lewis acid, while BF3, despite its trigonal planar geometry, does not exhibit electron deficiency due to the higher electronegativity of fluorine.
Conclusion
The Bh3 Lewis Structure provides valuable insights into the bonding and molecular geometry of boron trihydride. By understanding the valence electrons, octet rule, and molecular geometry, we can predict the properties and behavior of BH3. Its electron deficiency and Lewis acidity make it a crucial compound in various chemical applications. Whether you are a student or a professional in the field of chemistry, grasping the Bh3 Lewis Structure is essential for a deeper understanding of molecular bonding and reactivity.
