Benzene Resonance Structures

Benzene is a fundamental compound in organic chemistry, known for its unique structure and properties. Understanding benzene resonance structures is crucial for grasping the behavior of aromatic compounds. Benzene, with the chemical formula C6H6, consists of a ring of six carbon atoms, each bonded to a hydrogen atom. The stability and reactivity of benzene can be explained through its resonance structures, which involve the delocalization of π electrons.

Table of Contents

Understanding Benzene Resonance Structures

Resonance structures are a way to represent the delocalization of electrons in a molecule. For benzene, this means that the electrons are not confined to specific bonds but are spread out over the entire ring. This delocalization contributes to the stability of benzene and its unique chemical properties.

Benzene has two primary resonance structures, often referred to as Kekulé structures. These structures show alternating single and double bonds around the ring. However, neither of these structures alone accurately represents the true nature of benzene. Instead, the actual structure of benzene is a hybrid of these two resonance structures, where the electrons are delocalized over the entire ring.

Drawing Benzene Resonance Structures

To draw the resonance structures of benzene, follow these steps:

Draw a hexagon to represent the six carbon atoms.
Place a hydrogen atom at each vertex of the hexagon.
Draw alternating single and double bonds around the ring. This will give you the first Kekulé structure.
To draw the second Kekulé structure, shift the double bonds by one position around the ring.

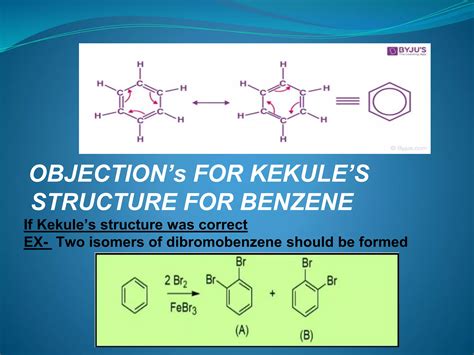

Here is a visual representation of the two Kekulé structures:

It is important to note that these structures are not static but rather represent a dynamic equilibrium where the electrons are continuously delocalized.

📝 Note: The actual structure of benzene is often represented with a circle inside the hexagon to indicate the delocalized π electrons.

Properties of Benzene

The unique properties of benzene can be attributed to its resonance structures. Some key properties include:

Stability: Benzene is more stable than expected based on its molecular formula. This stability is due to the delocalization of π electrons, which lowers the overall energy of the molecule.
Aromaticity: Benzene is an aromatic compound, meaning it follows Hückel's rule, which states that a planar (or nearly planar) cyclic molecule with (4n + 2) π electrons is aromatic. For benzene, n = 1, giving it 6 π electrons.
Reactivity: Benzene undergoes electrophilic aromatic substitution reactions rather than addition reactions. This is because the delocalized π electrons make it less reactive towards addition reactions.

Applications of Benzene

Benzene is a versatile compound with numerous applications in various industries. Some of the key applications include:

Chemical Industry: Benzene is a crucial starting material for the synthesis of many organic compounds, including plastics, resins, and synthetic fibers.
Pharmaceuticals: Benzene derivatives are used in the production of various pharmaceuticals, including analgesics, antipyretics, and anti-inflammatory drugs.
Solvent: Benzene is used as a solvent in laboratories and industrial processes due to its ability to dissolve non-polar compounds.

Safety and Handling of Benzene

While benzene has many useful applications, it is also a known carcinogen and can be harmful if not handled properly. Some safety precautions include:

Use benzene in a well-ventilated area to avoid inhalation.
Wear appropriate personal protective equipment, including gloves and safety glasses.
Store benzene in a cool, dry place away from heat sources and incompatible substances.
Disposal of benzene should be done according to local regulations to minimize environmental impact.

Understanding the benzene resonance structures is essential for comprehending the unique properties and behavior of benzene. The delocalization of π electrons in benzene contributes to its stability, aromaticity, and reactivity. By drawing the resonance structures and understanding their implications, one can gain a deeper insight into the chemistry of benzene and its applications.

In summary, benzene’s resonance structures play a pivotal role in its chemical behavior. The delocalization of electrons in benzene leads to its stability and aromaticity, making it a versatile compound with numerous applications. However, it is crucial to handle benzene with care due to its potential health risks. By understanding the resonance structures of benzene, one can appreciate the fascinating world of organic chemistry and its practical applications.
