In the world of automotive engineering, the belt drive CVT (Continuously Variable Transmission) has emerged as a revolutionary technology, offering a seamless and efficient driving experience. This innovative system has gained significant traction due to its ability to provide smooth acceleration and improved fuel efficiency. Let's delve into the intricacies of the belt drive CVT, its advantages, and how it compares to traditional transmissions.
Understanding the Belt Drive CVT
A belt drive CVT is a type of continuously variable transmission that uses a belt and pulley system to provide an infinite number of gear ratios. Unlike traditional automatic transmissions, which have a fixed number of gears, a CVT can seamlessly adjust the gear ratio to match the driving conditions. This results in smoother acceleration and better fuel economy.

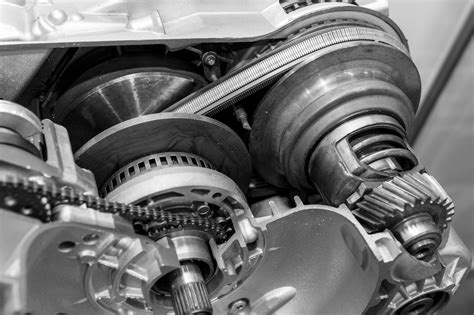

The key components of a belt drive CVT include:
- Drive Pulley: This is connected to the engine and adjusts its width to change the effective diameter of the pulley.
- Driven Pulley: This is connected to the transmission output shaft and also adjusts its width to change the effective diameter.
- Belt: A metal or composite belt that connects the drive and driven pulleys, transferring power from the engine to the wheels.
How a Belt Drive CVT Works
The operation of a belt drive CVT is based on the principle of variable pulley widths. When the engine is idling or at low speeds, the drive pulley is narrow, and the driven pulley is wide. This configuration allows the belt to ride high on the drive pulley and low on the driven pulley, providing a high gear ratio for better acceleration from a standstill.
As the engine speed increases, the drive pulley widens, and the driven pulley narrows. This causes the belt to ride lower on the drive pulley and higher on the driven pulley, reducing the gear ratio and allowing the vehicle to cruise at higher speeds efficiently.
The continuous adjustment of the pulley widths ensures that the engine operates within its optimal RPM range, resulting in smoother acceleration and improved fuel efficiency.
Advantages of a Belt Drive CVT
The belt drive CVT offers several advantages over traditional transmissions:
- Smooth Acceleration: The seamless adjustment of gear ratios provides a smooth and uninterrupted acceleration experience.
- Improved Fuel Efficiency: By keeping the engine within its optimal RPM range, a belt drive CVT can significantly improve fuel economy.
- Reduced Wear and Tear: The continuous adjustment of gear ratios reduces the stress on the engine and transmission components, leading to longer component life.
- Compact Design: The belt drive CVT is generally more compact than traditional automatic transmissions, allowing for more efficient use of space in the vehicle.
Comparing Belt Drive CVT to Other Transmissions
To fully appreciate the benefits of a belt drive CVT, it's helpful to compare it to other types of transmissions:
| Transmission Type | Advantages | Disadvantages |
|---|---|---|
| Manual Transmission | Better control over gear selection, often more fuel-efficient | Requires driver skill, can be less convenient in stop-and-go traffic |
| Automatic Transmission | Easier to drive, smoother shifts | Less fuel-efficient, more complex and heavier |
| Dual-Clutch Transmission (DCT) | Faster shifts, better performance | More complex and expensive, can be less smooth at low speeds |
| Belt Drive CVT | Smooth acceleration, improved fuel efficiency, reduced wear and tear | Can feel less responsive at high speeds, potential for belt wear |
While each type of transmission has its own set of advantages and disadvantages, the belt drive CVT stands out for its smooth operation and fuel efficiency.
Maintenance and Longevity of Belt Drive CVT
Proper maintenance is crucial for the longevity of a belt drive CVT. Regular servicing, including fluid changes and inspections, can help ensure that the transmission operates smoothly and efficiently. It's important to follow the manufacturer's recommended maintenance schedule to avoid potential issues.
One common concern with belt drive CVT systems is belt wear. Over time, the belt can stretch or wear out, leading to reduced performance and potential failure. Regular inspections can help identify any issues early, allowing for timely repairs or replacements.
🛠️ Note: Always use high-quality fluids and parts recommended by the manufacturer to maintain the performance and longevity of your belt drive CVT.
Common Issues with Belt Drive CVT
While belt drive CVT systems offer many benefits, they are not without their challenges. Some common issues include:
- Belt Wear: Over time, the belt can stretch or wear out, leading to reduced performance and potential failure.
- Fluid Leaks: Leaks in the transmission fluid can cause the system to overheat and fail.
- Pulley Misalignment: Misalignment of the pulleys can cause the belt to slip, leading to reduced efficiency and potential damage.
Regular maintenance and inspections can help identify and address these issues before they become major problems.
While belt drive CVT systems offer many benefits, they are not without their challenges. Some common issues include:
Regular maintenance and inspections can help identify and address these issues before they become major problems.
