Understanding the Becl2 Lewis Structure is fundamental for anyone studying chemistry, particularly organic chemistry. The Lewis structure, named after Gilbert N. Lewis, is a diagrammatic representation of the valence electrons in a molecule. It helps visualize the bonding between atoms and the lone pairs of electrons. In this post, we will delve into the Becl2 Lewis Structure, its significance, and how to draw it step-by-step.
What is a Lewis Structure?
A Lewis structure is a simple yet powerful tool used to represent the bonding between atoms in a molecule. It shows how valence electrons are arranged around atoms to form bonds. Each dot or pair of dots represents a valence electron, and lines between atoms represent covalent bonds. Understanding Lewis structures is crucial for predicting molecular geometry, polarity, and reactivity.
Understanding the Becl2 Molecule
The molecule BeCl2, or beryllium chloride, is a simple inorganic compound. Beryllium (Be) is an alkaline earth metal with two valence electrons, while chlorine (Cl) is a halogen with seven valence electrons. The Becl2 Lewis Structure helps us understand how these atoms bond to form a stable molecule.
Drawing the Becl2 Lewis Structure
Drawing the Becl2 Lewis Structure involves several steps. Let’s go through them one by one:
Step 1: Determine the Total Number of Valence Electrons
First, identify the number of valence electrons for each atom in the molecule. Beryllium has 2 valence electrons, and each chlorine atom has 7 valence electrons. Since there are two chlorine atoms, the total number of valence electrons is:
2 (from Be) + 7 (from Cl) + 7 (from Cl) = 16 valence electrons.
Step 2: Choose the Central Atom
In BeCl2, beryllium is the central atom because it is the least electronegative element in the molecule. Chlorine atoms will surround the beryllium atom.
Step 3: Connect the Atoms with Single Bonds
Draw single bonds between the central beryllium atom and each chlorine atom. This uses 4 of the 16 valence electrons (2 electrons per bond).
Step 4: Distribute the Remaining Electrons
After forming the single bonds, you have 12 valence electrons left. Distribute these electrons around the chlorine atoms to complete their octets. Each chlorine atom needs 6 more electrons to complete its octet.
Step 5: Check for Formal Charges
Ensure that the Lewis structure has the correct formal charges. In BeCl2, the formal charges should be zero for a neutral molecule. The beryllium atom has no lone pairs and forms two bonds, while each chlorine atom has three lone pairs and one bond.
Step 6: Finalize the Lewis Structure

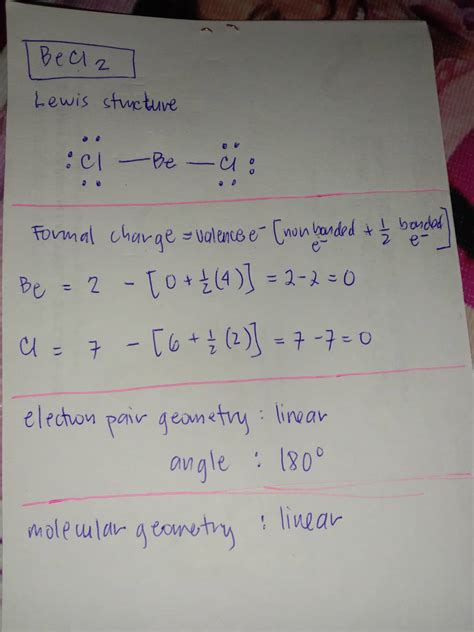

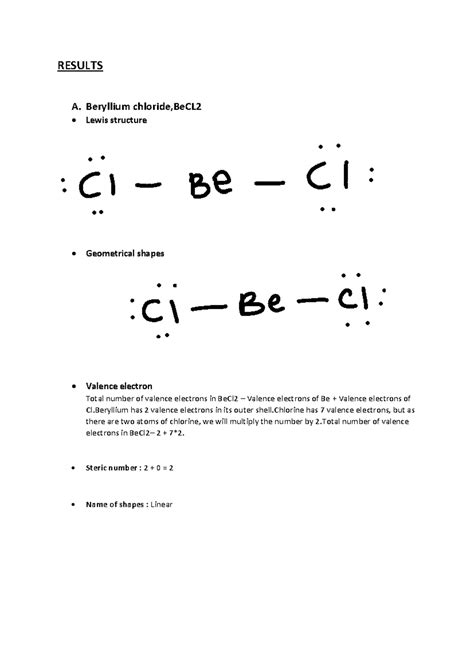

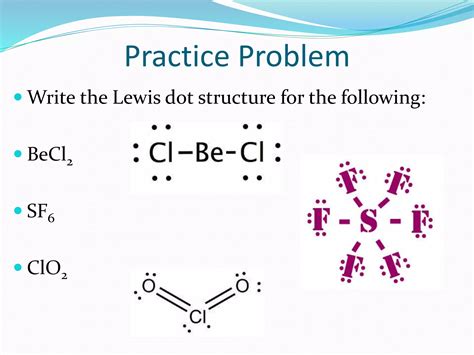

The final Becl2 Lewis Structure should look like this:
Importance of the Becl2 Lewis Structure
The Becl2 Lewis Structure is important for several reasons:
- Understanding Bonding: It helps in understanding the type of bonding (covalent) between beryllium and chlorine atoms.
- Predicting Molecular Geometry: The Lewis structure aids in predicting the molecular geometry, which in this case is linear.
- Determining Polarity: It assists in determining the polarity of the molecule. BeCl2 is a non-polar molecule due to its linear geometry and the symmetrical distribution of electrons.
- Reacting with Other Compounds: Knowing the Lewis structure helps in understanding how BeCl2 might react with other compounds.
Common Mistakes to Avoid
When drawing the Becl2 Lewis Structure, it’s essential to avoid common mistakes:
- Incorrect Valence Electrons: Ensure you count the valence electrons correctly. Beryllium has 2, and each chlorine has 7.
- Improper Bonding: Make sure to form single bonds between beryllium and each chlorine atom.
- Ignoring Formal Charges: Always check for formal charges to ensure the structure is correct.
📝 Note: Remember that beryllium can form only two bonds due to its two valence electrons. This is a key point to keep in mind when drawing the Becl2 Lewis Structure.
Comparing Becl2 with Other Lewis Structures
To better understand the Becl2 Lewis Structure, it’s helpful to compare it with other similar molecules. Let’s look at a few examples:
BeF2
Beryllium fluoride (BeF2) has a similar Lewis structure to BeCl2. Both beryllium and fluorine form two single bonds, and the structure is linear. The main difference is the electronegativity of the halogen atoms, which affects the polarity of the molecule.
MgCl2
Magnesium chloride (MgCl2) is another example. Magnesium, like beryllium, has two valence electrons. However, magnesium is larger and can form ionic bonds with chlorine, resulting in a different type of bonding compared to BeCl2.
BCl3
Boron trichloride (BCl3) has a different Lewis structure. Boron has three valence electrons and forms three single bonds with chlorine atoms, resulting in a trigonal planar geometry. This is unlike the linear geometry of BeCl2.
Applications of Lewis Structures
Lewis structures have numerous applications in chemistry:
- Organic Chemistry: They are used to understand the bonding in organic compounds, which is crucial for predicting reactivity and synthesis.
- Inorganic Chemistry: Lewis structures help in understanding the bonding in inorganic compounds, including coordination complexes.
- Physical Chemistry: They aid in predicting molecular properties such as polarity, reactivity, and stability.
Understanding the Becl2 Lewis Structure is just the beginning. Lewis structures are a fundamental tool in chemistry that can be applied to a wide range of molecules and compounds.
In summary, the Becl2 Lewis Structure is a crucial concept in chemistry that helps us understand the bonding and properties of the BeCl2 molecule. By following the steps to draw the Lewis structure, we can visualize the arrangement of valence electrons and predict the molecule’s geometry and polarity. Comparing BeCl2 with other molecules further enhances our understanding of Lewis structures and their applications in chemistry. Whether you are studying organic, inorganic, or physical chemistry, mastering Lewis structures is essential for success.
