Understanding the differences between Battery Series Vs Parallel configurations is crucial for anyone working with batteries, whether for hobbyist projects or professional applications. This knowledge ensures that you can optimize battery performance, longevity, and safety. This post will delve into the intricacies of series and parallel battery configurations, their advantages, disadvantages, and practical applications.
Understanding Battery Series Configuration

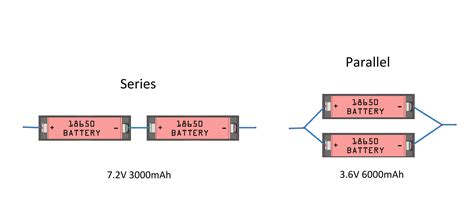

A series configuration involves connecting the positive terminal of one battery to the negative terminal of another. This setup increases the overall voltage while keeping the capacity (measured in amp-hours) the same. For example, connecting two 1.5V batteries in series will result in a total voltage of 3V.
Advantages of Series Configuration:
- Increased Voltage: The primary benefit is the increased voltage, which can be essential for applications requiring higher power.
- Simplified Wiring: Series configurations often require simpler wiring compared to parallel setups.
Disadvantages of Series Configuration:
- Reduced Capacity: The total capacity remains the same as a single battery, which can be a limitation for high-drain applications.
- Voltage Imbalance: If one battery fails or degrades faster than the others, it can cause an imbalance, leading to reduced performance or even damage.
Understanding Battery Parallel Configuration
A parallel configuration involves connecting all positive terminals together and all negative terminals together. This setup increases the overall capacity while keeping the voltage the same. For instance, connecting two 1.5V batteries in parallel will still result in a total voltage of 1.5V but with double the capacity.
Advantages of Parallel Configuration:
- Increased Capacity: The primary benefit is the increased capacity, which is ideal for applications requiring longer run times.
- Redundancy: If one battery fails, the others can still provide power, enhancing reliability.
Disadvantages of Parallel Configuration:
- Complex Wiring: Parallel configurations can be more complex to wire, especially with a large number of batteries.
- Voltage Imbalance: Similar to series configurations, voltage imbalances can occur if batteries degrade at different rates.

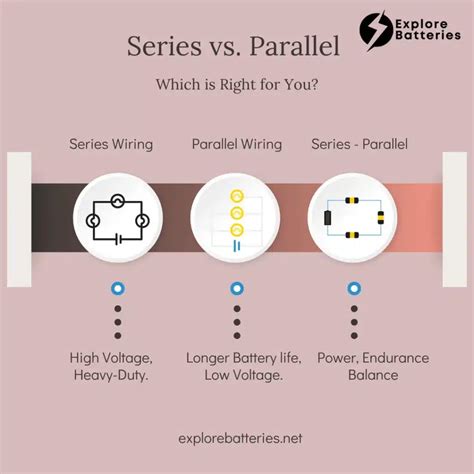

Comparing Series Vs Parallel Configurations
When deciding between Battery Series Vs Parallel configurations, consider the specific requirements of your application. Here’s a comparison to help you make an informed decision:
| Aspect | Series Configuration | Parallel Configuration |
|---|---|---|
| Voltage | Increased | Same |
| Capacity | Same | Increased |
| Wiring Complexity | Simpler | More Complex |
| Redundancy | Lower | Higher |
| Voltage Imbalance | Can Occur | Can Occur |
🔍 Note: Always ensure that batteries in a series or parallel configuration are of the same type, age, and capacity to minimize voltage imbalances and maximize performance.
Practical Applications of Series and Parallel Configurations
Series Configuration Applications:
- Electric Vehicles: Often require high voltage to power electric motors.
- Remote-Controlled Toys: Need higher voltage for better performance.
- Flashlights: Require higher voltage for brighter light output.
Parallel Configuration Applications:
- Solar Power Systems: Require higher capacity to store more energy.
- Backup Power Supplies: Need longer run times to ensure continuous power.
- Portable Electronics: Benefit from increased capacity for extended use.
Safety Considerations for Battery Configurations
Regardless of the configuration, safety is paramount when working with batteries. Here are some key considerations:
- Proper Ventilation: Ensure good ventilation to prevent the buildup of harmful gases.
- Avoid Short Circuits: Always use appropriate connectors and wiring to prevent short circuits.
- Monitor Temperature: High temperatures can degrade battery performance and pose a fire risk.
- Use Protective Gear: Wear gloves and safety glasses when handling batteries.
Battery Series Vs Parallel configurations each have their unique advantages and disadvantages. Understanding these differences allows you to choose the right setup for your specific needs, ensuring optimal performance and safety. Whether you need higher voltage or increased capacity, knowing how to configure your batteries correctly is essential for any project involving electrical power.
In summary, the choice between Battery Series Vs Parallel configurations depends on the specific requirements of your application. Series configurations are ideal for applications needing higher voltage, while parallel configurations are better for those requiring increased capacity. Always consider safety measures and ensure that batteries are matched in type, age, and capacity to maximize performance and longevity.
