Understanding the concept of connecting batteries in series is crucial for anyone working with electrical systems. Whether you're a hobbyist, a professional electrician, or an engineer, knowing how to properly connect batteries in series can significantly enhance the performance and efficiency of your projects. This blog post will delve into the intricacies of connecting batteries in series, exploring the benefits, potential drawbacks, and practical applications.
What is a Battery in Series?
A battery in series configuration involves connecting multiple batteries end-to-end, with the positive terminal of one battery connected to the negative terminal of the next. This arrangement increases the overall voltage of the system while keeping the capacity (measured in amp-hours) the same. For example, if you connect two 12-volt batteries in series, the total voltage will be 24 volts, but the capacity remains unchanged.
Benefits of Connecting Batteries in Series
Connecting batteries in series offers several advantages:
- Increased Voltage: The primary benefit is the increased voltage, which can be crucial for applications requiring higher power levels.
- Efficiency: Higher voltage can lead to more efficient power transmission, reducing energy losses.
- Versatility: Series connections allow for greater flexibility in designing electrical systems, enabling the use of standard voltage batteries to achieve higher voltages.
Potential Drawbacks
While there are many benefits, there are also some potential drawbacks to consider:
- Reduced Capacity: Although the voltage increases, the overall capacity (amp-hours) remains the same. This means the system will run out of power faster.
- Complexity: Managing multiple batteries in series can be more complex, requiring careful monitoring and balancing to ensure even discharge.
- Safety Risks: Higher voltages can pose safety risks, including the potential for electrical shocks and fires if not handled properly.
Practical Applications
Batteries connected in series are used in a variety of applications, including:
- Electric Vehicles: Many electric vehicles use series-connected batteries to achieve the high voltages needed for efficient operation.
- Solar Power Systems: In off-grid solar systems, batteries in series are often used to store energy generated during the day for use at night.
- Uninterruptible Power Supplies (UPS): UPS systems often use series-connected batteries to provide backup power during outages.

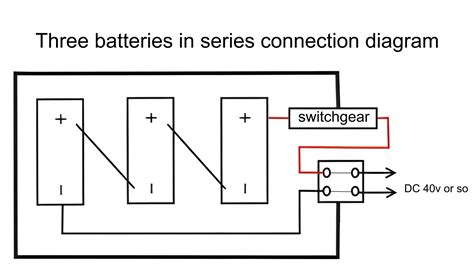

How to Connect Batteries in Series
Connecting batteries in series involves a few straightforward steps:
- Gather Your Batteries: Ensure all batteries are of the same type, voltage, and capacity to avoid imbalances.
- Connect the Positive Terminal: Connect the positive terminal of the first battery to the negative terminal of the second battery using a suitable wire.
- Continue the Pattern: Repeat the process, connecting the positive terminal of each subsequent battery to the negative terminal of the next.
- Final Connections: The positive terminal of the last battery will be your system’s positive output, and the negative terminal of the first battery will be your system’s negative output.
🔧 Note: Always use appropriate safety gear, including gloves and safety glasses, when handling batteries. Ensure all connections are secure to prevent short circuits.
Balancing Batteries in Series
Balancing batteries in series is essential to ensure even discharge and prolong the lifespan of the batteries. Here are some methods to achieve this:
- Battery Management Systems (BMS): A BMS can monitor and balance the charge levels of each battery in the series, ensuring they all discharge evenly.
- Manual Balancing: Periodically disconnect the batteries and charge them individually to ensure they are all at the same voltage level before reconnecting them in series.
- Equalizing Charges: Some chargers have an equalizing mode that can help balance the batteries by applying a controlled overcharge to bring all batteries to the same voltage level.
Safety Considerations
When working with batteries in series, safety should always be a top priority. Here are some key considerations:
- Proper Ventilation: Ensure the area is well-ventilated to prevent the buildup of harmful gases.
- Avoid Short Circuits: Always double-check connections to prevent short circuits, which can cause fires or explosions.
- Use Appropriate Tools: Use insulated tools and wear protective gear to minimize the risk of electrical shocks.
Troubleshooting Common Issues
Even with careful planning, issues can arise when connecting batteries in series. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Uneven Discharge | Use a BMS to monitor and balance the charge levels of each battery. |
| Overheating | Ensure proper ventilation and check for short circuits or loose connections. |
| Reduced Capacity | Verify that all batteries are of the same type and capacity. Consider adding more batteries in parallel to increase capacity. |
🔧 Note: Regularly inspect your battery system for signs of wear or damage. Replace any batteries that show signs of degradation to maintain system performance and safety.
Conclusion
Connecting batteries in series is a powerful technique that can significantly enhance the performance of your electrical systems. By understanding the benefits, potential drawbacks, and practical applications, you can make informed decisions about when and how to use this configuration. Always prioritize safety and proper maintenance to ensure the longevity and reliability of your battery system. Whether you’re working on a small DIY project or a large-scale industrial application, mastering the art of connecting batteries in series can open up a world of possibilities.
