Understanding the intricacies of electrical systems often involves delving into the specifics of how batteries are configured. One of the most common and effective methods of connecting batteries is by placing them in series. This configuration is widely used in various applications, from small electronic devices to large-scale energy storage systems. In this post, we will explore the concept of batteries in series, their advantages, disadvantages, and practical applications.
What Are Batteries in Series?

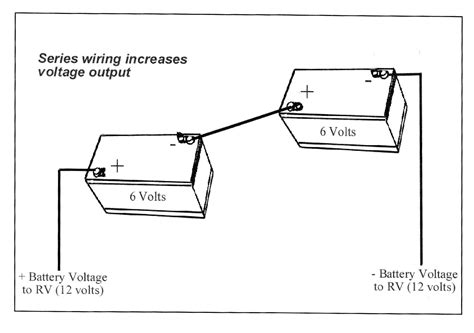

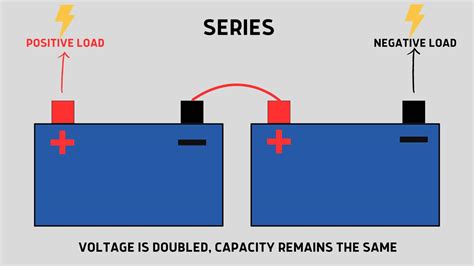

When batteries are connected in series, the positive terminal of one battery is connected to the negative terminal of the next battery. This configuration increases the overall voltage of the system while keeping the capacity (measured in ampere-hours) the same. For example, if you connect two 1.5V batteries in series, the total voltage will be 3V, but the capacity will remain the same as a single battery.
Advantages of Batteries in Series
Connecting batteries in series offers several advantages:
- Increased Voltage: The primary benefit is the increased voltage, which can be crucial for powering devices that require higher voltages.
- Efficiency: Series connections can improve the efficiency of the system by reducing the current draw from each battery, which can lead to longer battery life.
- Simplicity: The configuration is straightforward and easy to implement, making it a popular choice for many applications.
Disadvantages of Batteries in Series
Despite the advantages, there are also some drawbacks to consider:
- Reduced Capacity: While the voltage increases, the overall capacity remains the same, which means the system will run out of power faster.
- Risk of Overheating: If one battery fails, it can cause a short circuit, leading to overheating and potential damage to the entire system.
- Complexity in Balancing: Ensuring that all batteries are balanced and charged evenly can be challenging, especially in larger systems.
Practical Applications of Batteries in Series
Batteries in series are used in a wide range of applications, including:
- Electronic Devices: Many portable electronic devices, such as flashlights and remote-controlled toys, use batteries in series to achieve the required voltage.
- Electric Vehicles: Electric vehicles often use large battery packs configured in series to provide the high voltage needed for the electric motor.
- Renewable Energy Systems: Solar and wind energy systems often use batteries in series to store energy efficiently and provide the necessary voltage for powering homes and businesses.
Calculating Voltage and Capacity in Series
To understand how to calculate the total voltage and capacity when batteries are connected in series, consider the following formulas:
Total Voltage (V_total) = V1 + V2 + V3 + … + Vn
Total Capacity (Ah_total) = Ah1 = Ah2 = Ah3 = … = Ahn
Where V1, V2, V3, … Vn are the voltages of the individual batteries, and Ah1, Ah2, Ah3, … Ahn are their capacities.
For example, if you have three 1.5V batteries each with a capacity of 2000mAh connected in series, the total voltage will be:
V_total = 1.5V + 1.5V + 1.5V = 4.5V
The total capacity will remain:
Ah_total = 2000mAh
Safety Considerations
When working with batteries in series, safety is paramount. Here are some key considerations:
- Proper Wiring: Ensure that the wiring is secure and properly insulated to prevent short circuits.
- Battery Matching: Use batteries of the same type, age, and capacity to ensure balanced charging and discharging.
- Temperature Control: Monitor the temperature of the batteries to prevent overheating, which can lead to fire or explosion.
- Regular Maintenance: Inspect the batteries regularly for signs of wear or damage, and replace them as needed.
🔧 Note: Always follow the manufacturer's guidelines for handling and maintaining batteries to ensure safety and longevity.
Common Mistakes to Avoid
When configuring batteries in series, it’s important to avoid common mistakes that can compromise the system’s performance and safety:
- Mismatched Batteries: Using batteries with different voltages or capacities can lead to imbalanced charging and discharging, reducing the overall efficiency and lifespan of the batteries.
- Incorrect Polarity: Connecting the batteries with the wrong polarity can cause a short circuit, leading to overheating and potential damage.
- Inadequate Wiring: Using insufficient or poorly insulated wiring can result in voltage drops and increased resistance, affecting the system’s performance.

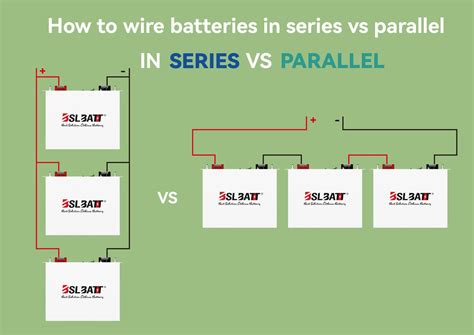

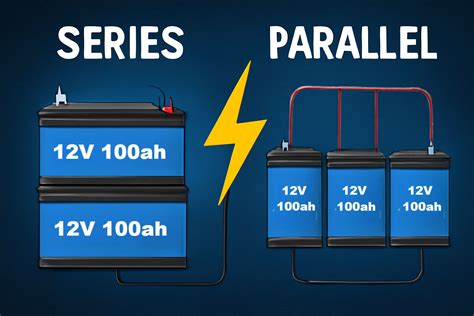

Batteries in Series vs. Batteries in Parallel
It’s also important to understand the difference between batteries in series and batteries in parallel. While batteries in series increase the voltage, batteries in parallel increase the capacity. Here’s a comparison:
| Batteries in Series | Batteries in Parallel |
|---|---|
| Increases Voltage | Increases Capacity |
| Same Capacity as a Single Battery | Same Voltage as a Single Battery |
| Higher Risk of Overheating | Lower Risk of Overheating |
| Simpler Configuration | More Complex Configuration |
Choosing between series and parallel configurations depends on the specific requirements of your application. For devices that need higher voltage, batteries in series are the way to go. For devices that need longer runtime, batteries in parallel are more suitable.
In some cases, a combination of series and parallel configurations can be used to achieve both higher voltage and capacity. This is often seen in large battery packs for electric vehicles and renewable energy systems.
For example, if you have four 1.5V batteries each with a capacity of 2000mAh, you can configure them in a 2x2 series-parallel arrangement. This means two batteries in series (3V) and two of these pairs in parallel, resulting in a total voltage of 3V and a total capacity of 4000mAh.
Real-World Examples
To better understand the practical applications of batteries in series, let’s look at a few real-world examples:
Flashlights often use two or more batteries in series to provide the necessary voltage for the bulb. For instance, a typical flashlight might use two 1.5V AA batteries in series to achieve a total voltage of 3V.
Electric vehicles rely on large battery packs configured in series to provide the high voltage needed for the electric motor. These battery packs can consist of hundreds or even thousands of individual cells connected in series and parallel to achieve the required voltage and capacity.
Renewable energy systems, such as solar and wind power, often use batteries in series to store energy efficiently. These systems can include large battery banks configured in series to provide the necessary voltage for powering homes and businesses.
In summary, batteries in series are a fundamental concept in electrical systems, offering increased voltage and efficiency for various applications. Understanding the advantages, disadvantages, and practical considerations of this configuration is crucial for designing and maintaining reliable and safe electrical systems.
