Bathtub Drain Diagram

Understanding the intricacies of a bathtub drain system is essential for homeowners and plumbers alike. A well-functioning bathtub drain ensures efficient water flow and prevents clogs, which can lead to more significant plumbing issues. This guide will walk you through the components of a bathtub drain, how to read a bathtub drain diagram, and steps to maintain and repair your bathtub drain.

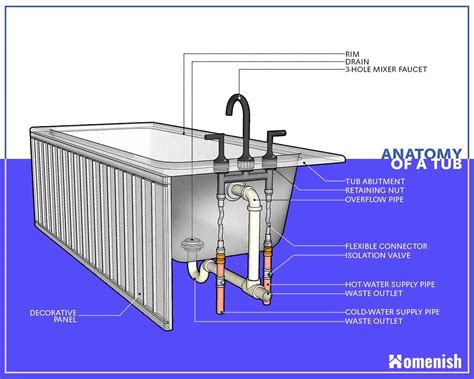

Understanding the Components of a Bathtub Drain

A bathtub drain system consists of several key components that work together to ensure proper drainage. Familiarizing yourself with these components will help you better understand a bathtub drain diagram and perform necessary repairs.

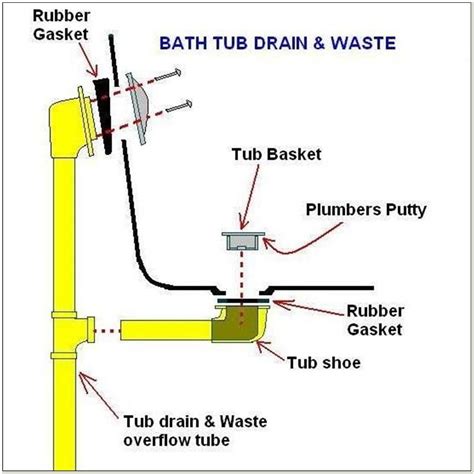

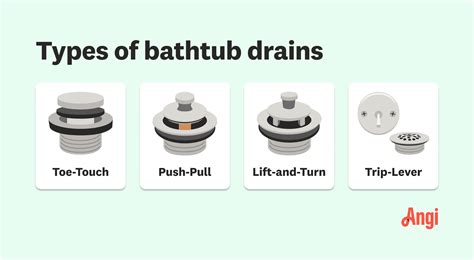

Drain Stopper: This is the visible part of the drain that you interact with daily. It can be a pop-up stopper, lift-and-turn stopper, or a toe-tap stopper.
Drain Flange: This is the part that connects the drain stopper to the drain pipe. It is usually made of metal or plastic and sits flush with the bathtub surface.
Drain Pipe: This is the pipe that carries water from the bathtub to the sewer or septic system. It is typically made of PVC or ABS plastic.

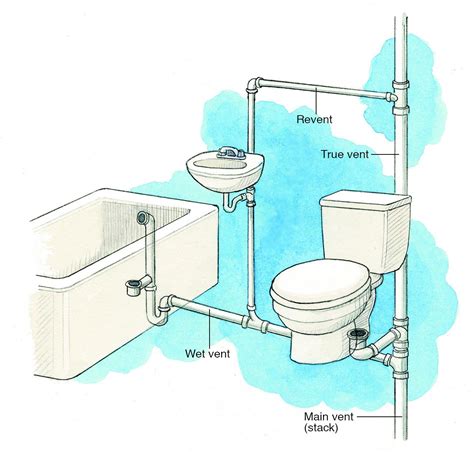

Trap: The trap is a curved section of the drain pipe that holds water to prevent sewer gases from entering the bathroom. It is essential for maintaining a healthy indoor environment.
Overflow Drain: This is a secondary drain that prevents water from overflowing the bathtub. It is connected to the main drain pipe and activates when the water level reaches a certain height.

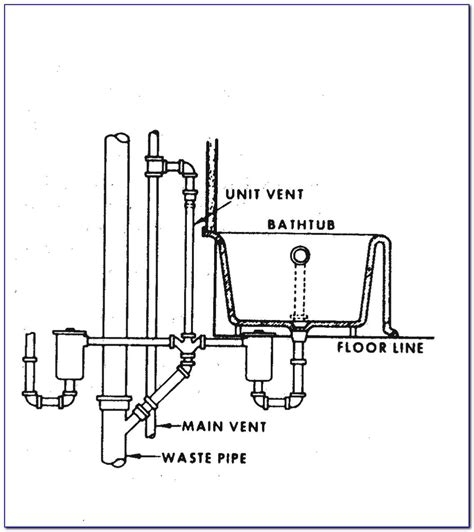

Reading a Bathtub Drain Diagram

A bathtub drain diagram is a visual representation of the drain system, showing the layout and connections of its components. Understanding how to read this diagram is crucial for diagnosing and repairing drain issues. Here’s a step-by-step guide to help you interpret a bathtub drain diagram:

1. Identify the Components: Start by locating the key components on the diagram. These include the drain stopper, drain flange, drain pipe, trap, and overflow drain. Each component should be clearly labeled.

2. Follow the Water Flow: Trace the path of water from the bathtub through the drain system. This will help you understand how water moves through the pipes and where potential blockages might occur.

3. Check Connections: Ensure that all connections between components are secure. Loose or improperly connected parts can cause leaks and drainage issues.

4. Look for Common Issues: Pay attention to areas where clogs or leaks commonly occur. These include the drain stopper, trap, and overflow drain.

5. Refer to Manufacturer’s Instructions: If you have a specific bathtub model, refer to the manufacturer’s instructions for a detailed bathtub drain diagram and troubleshooting tips.

🔍 Note: Always turn off the water supply before attempting any repairs on the bathtub drain system.

Maintaining Your Bathtub Drain

Regular maintenance of your bathtub drain can prevent clogs and extend the lifespan of your plumbing system. Here are some tips for maintaining your bathtub drain:

Clean the Drain Regularly: Use a drain cleaner or a mixture of baking soda and vinegar to clean the drain monthly. This helps prevent the buildup of hair, soap scum, and other debris.
Check the Drain Stopper: Inspect the drain stopper for any signs of wear or damage. Replace it if necessary to ensure proper functioning.
Inspect the Overflow Drain: Ensure that the overflow drain is clear and functioning correctly. This will prevent water from overflowing the bathtub.
Flush the Drain: Periodically flush the drain with hot water to clear any minor blockages. This can be done by pouring a pot of boiling water down the drain.

Repairing a Bathtub Drain

If you encounter issues with your bathtub drain, it’s essential to address them promptly to prevent further damage. Here are some common problems and their solutions:

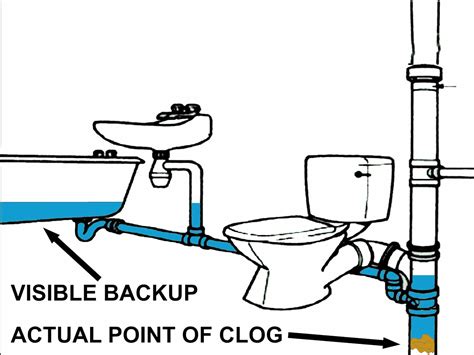

Clogged Drain

A clogged drain is one of the most common issues homeowners face. Here’s how to unclog a bathtub drain:

Use a Plunger: Fill the bathtub with enough water to cover the bell of the plunger. Place the plunger over the drain and work it up and down vigorously to dislodge the clog.
Try a Drain Snake: If the plunger doesn’t work, use a drain snake to reach deeper into the pipe and break up the clog. Insert the snake into the drain and turn the handle to extend the cable. Once you feel resistance, turn the handle to break up the clog.
Use Chemical Drain Cleaners: As a last resort, use a chemical drain cleaner to dissolve the clog. Follow the manufacturer’s instructions carefully and ensure proper ventilation.

🛠️ Note: Avoid using chemical drain cleaners frequently, as they can damage your pipes over time.

Leaking Drain

A leaking drain can cause water damage and mold growth if not addressed promptly. Here’s how to fix a leaking bathtub drain:

Tighten Connections: Check all connections between the drain components and tighten any loose fittings. Use a wrench to ensure a secure fit.
Replace the Drain Flange: If the drain flange is damaged or worn out, replace it with a new one. This will create a watertight seal and prevent leaks.
Apply Plumber’s Putty: Use plumber’s putty to seal any gaps around the drain flange. This will create a watertight seal and prevent water from leaking.

Replacing the Drain Stopper

If your drain stopper is damaged or not functioning correctly, you may need to replace it. Here’s how to replace a bathtub drain stopper:

Remove the Old Stopper: Use a screwdriver or pliers to remove the old drain stopper. This may involve unscrewing it or pulling it out.
Install the New Stopper: Follow the manufacturer’s instructions to install the new drain stopper. Ensure it is securely attached and functions correctly.
Test the Stopper: Fill the bathtub with water and test the new drain stopper to ensure it seals properly and allows water to drain when lifted.

🛠️ Note: Always turn off the water supply before replacing the drain stopper to prevent water from flowing into the bathtub.

Troubleshooting Common Bathtub Drain Issues

Even with regular maintenance, you may encounter issues with your bathtub drain. Here are some common problems and their solutions:

Slow Draining

If your bathtub is draining slowly, it may be due to a partial clog or a buildup of debris in the drain pipe. Here’s how to address slow draining:

Use a Drain Cleaner: Pour a drain cleaner down the drain and let it sit for the recommended time. Then, flush the drain with hot water to clear any debris.
Use a Drain Snake: If the drain cleaner doesn’t work, use a drain snake to reach deeper into the pipe and break up the clog.
Check the Trap: Inspect the trap for any blockages or buildup. Clean it thoroughly to ensure proper water flow.

Foul Odors

Foul odors coming from the bathtub drain can be caused by a buildup of bacteria or sewer gases. Here’s how to eliminate foul odors:

Clean the Drain: Use a drain cleaner or a mixture of baking soda and vinegar to clean the drain. This will help eliminate bacteria and odors.
Check the Trap: Ensure that the trap is holding water and not dry. A dry trap can allow sewer gases to enter the bathroom.
Use an Enzyme Drain Cleaner: Enzyme drain cleaners break down organic matter and eliminate odors. Follow the manufacturer’s instructions for use.

Water Overflowing

If water is overflowing from the bathtub, it may be due to a clogged overflow drain or a malfunctioning drain stopper. Here’s how to address water overflowing:

Check the Overflow Drain: Ensure that the overflow drain is clear and functioning correctly. Clean it if necessary.
Inspect the Drain Stopper: Check the drain stopper for any signs of wear or damage. Replace it if necessary.
Test the Drain: Fill the bathtub with water and test the drain to ensure it is functioning correctly. If water continues to overflow, there may be a more significant issue with the drain system.

🛠️ Note: If you are unable to resolve the issue on your own, it is best to call a professional plumber to avoid further damage.

Preventive Measures for Bathtub Drain Maintenance

Preventive maintenance is key to keeping your bathtub drain in good working condition. Here are some preventive measures to consider:

Regular Cleaning: Clean the bathtub drain regularly to prevent the buildup of hair, soap scum, and other debris. Use a drain cleaner or a mixture of baking soda and vinegar.
Use Drain Covers: Install drain covers to catch hair and other debris before they enter the drain. This will help prevent clogs and keep the drain clear.
Avoid Pouring Grease Down the Drain: Grease can solidify and cause blockages in the drain pipe. Dispose of grease in the trash instead of pouring it down the drain.
Inspect the Drain System: Periodically inspect the drain system for any signs of wear or damage. Address any issues promptly to prevent further damage.

By following these preventive measures, you can extend the lifespan of your bathtub drain and avoid costly repairs.

DIY Bathtub Drain Repair: Step-by-Step Guide

If you’re comfortable with DIY projects, you can repair your bathtub drain yourself. Here’s a step-by-step guide to help you through the process:

Gather Your Tools

Before you begin, gather the necessary tools and materials:

Screwdriver or pliers
Wrench
Drain cleaner or baking soda and vinegar
Drain snake
Plumber’s putty
New drain stopper (if needed)

Step 1: Turn Off the Water Supply

Turn off the water supply to the bathtub to prevent water from flowing into the bathtub while you work.

Step 2: Remove the Drain Stopper

Use a screwdriver or pliers to remove the drain stopper. This may involve unscrewing it or pulling it out.

Step 3: Clean the Drain

Use a drain cleaner or a mixture of baking soda and vinegar to clean the drain. Pour the cleaner down the drain and let it sit for the recommended time. Then, flush the drain with hot water to clear any debris.

Step 4: Inspect the Drain Components

Inspect the drain components for any signs of wear or damage. Replace any damaged parts as needed.

Step 5: Replace the Drain Stopper

Follow the manufacturer’s instructions to install the new drain stopper. Ensure it is securely attached and functions correctly.

Step 6: Test the Drain

Fill the bathtub with water and test the drain to ensure it is functioning correctly. If water continues to overflow, there may be a more significant issue with the drain system.

🛠️ Note: If you are unsure about any step in the process, it is best to call a professional plumber to avoid further damage.

When to Call a Professional Plumber

While many bathtub drain issues can be resolved with DIY repairs, there are times when it’s best to call a professional plumber. Here are some signs that you need professional help:

Persistent Clogs: If you have tried multiple methods to unclog the drain and the issue persists, it may be time to call a professional.
Leaking Pipes: If you notice water leaking from the pipes, it’s best to call a professional to avoid further damage.
Foul Odors: If foul odors continue to emanate from the drain despite your best efforts to eliminate them, a professional can help identify and resolve the issue.
Water Overflowing: If water continues to overflow from the bathtub, it may indicate a more significant issue with the drain system that requires professional attention.

By recognizing these signs, you can address bathtub drain issues promptly and prevent further damage to your plumbing system.

Conclusion

Understanding the components of a bathtub drain system, how to read a bathtub drain diagram, and performing regular maintenance are essential for keeping your bathtub in good working condition. By following the tips and steps outlined in this guide, you can address common issues, perform necessary repairs, and extend the lifespan of your bathtub drain. Regular maintenance and preventive measures will help you avoid costly repairs and ensure a functional and efficient plumbing system.
