Barplot In R

Data visualization is a crucial aspect of data analysis, enabling researchers and analysts to interpret complex datasets effectively. Among the various tools available for data visualization, R is a powerful and widely-used programming language. One of the most fundamental and commonly used plots in R is the barplot in R. This type of plot is essential for comparing categorical data and displaying the frequency or count of different categories. In this post, we will delve into the intricacies of creating and customizing barplots in R, exploring various functions and techniques to enhance your data visualization skills.

Understanding Barplots in R

A barplot in R is a graphical representation of categorical data where the lengths of the bars are proportional to the values they represent. Barplots are particularly useful for comparing different groups or categories and can be easily customized to suit various analytical needs. The basic function for creating a barplot in R is barplot().

Creating a Basic Barplot

To create a basic barplot, you need to have your data in a suitable format. Typically, this involves a vector of values and a vector of category names. Here is a simple example to illustrate how to create a basic barplot:

# Sample data
categories <- c("A", "B", "C", "D")
values <- c(10, 15, 7, 12)

# Creating a basic barplot
barplot(values, names.arg = categories, main = "Basic Barplot", xlab = "Categories", ylab = "Values")

In this example, values is a vector of numerical data, and categories is a vector of category names. The names.arg parameter is used to label the x-axis with the category names. The main, xlab, and ylab parameters are used to add a title and labels to the x and y axes, respectively.

Customizing Barplots

While a basic barplot is useful, customization can significantly enhance its readability and aesthetic appeal. Here are some common customization options for a barplot in R:

Changing Bar Colors

You can change the color of the bars using the col parameter. This parameter accepts a vector of colors, which can be specified using color names, hex codes, or RGB values.

# Customizing bar colors
barplot(values, names.arg = categories, main = "Customized Barplot", xlab = "Categories", ylab = "Values", col = c("red", "blue", "green", "purple"))

Adding Patterns to Bars

If you want to add patterns to the bars, you can use the density and angle parameters. These parameters allow you to create diagonal or cross-hatched patterns within the bars.

# Adding patterns to bars
barplot(values, names.arg = categories, main = "Barplot with Patterns", xlab = "Categories", ylab = "Values", density = 30, angle = 45, col = c("lightblue", "lightgreen", "lightyellow", "lightpink"))

Horizontal Barplots

Sometimes, a horizontal barplot is more appropriate, especially when dealing with long category names. You can create a horizontal barplot by setting the horiz parameter to TRUE.

# Creating a horizontal barplot
barplot(values, names.arg = categories, main = "Horizontal Barplot", xlab = "Values", ylab = "Categories", horiz = TRUE)

Stacked Barplots

Stacked barplots are useful for comparing the composition of different categories. To create a stacked barplot, you need to provide a matrix of values and specify the beside parameter as FALSE.

# Sample data for stacked barplot
data <- matrix(c(10, 15, 7, 12, 5, 8, 3, 6), nrow = 2, byrow = TRUE)
rownames(data) <- c("Group 1", "Group 2")
colnames(data) <- categories

# Creating a stacked barplot
barplot(data, main = "Stacked Barplot", xlab = "Categories", ylab = "Values", beside = FALSE, col = c("lightblue", "lightgreen"))

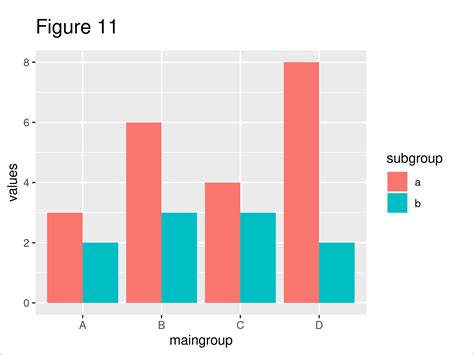

Grouped Barplots

Grouped barplots are useful for comparing multiple groups within the same category. To create a grouped barplot, you need to provide a matrix of values and specify the beside parameter as TRUE.

# Creating a grouped barplot
barplot(data, main = "Grouped Barplot", xlab = "Categories", ylab = "Values", beside = TRUE, col = c("lightblue", "lightgreen"))

Advanced Customization with ggplot2

While the base R function barplot() is powerful, the ggplot2 package offers even more flexibility and customization options. ggplot2 is a popular data visualization package in R that uses a grammar of graphics approach to create complex and aesthetically pleasing plots.

To create a barplot using ggplot2, you first need to install and load the package:

# Installing and loading ggplot2
install.packages("ggplot2")
library(ggplot2)

Here is an example of creating a barplot using ggplot2:

# Sample data frame
df <- data.frame(
  Category = c("A", "B", "C", "D"),
  Value = c(10, 15, 7, 12)
)

# Creating a barplot with ggplot2
ggplot(df, aes(x = Category, y = Value)) +
  geom_bar(stat = "identity", fill = "skyblue") +
  labs(title = "Barplot with ggplot2", x = "Categories", y = "Values") +
  theme_minimal()

In this example, the aes() function is used to map the data to the aesthetic properties of the plot. The geom_bar() function is used to create the barplot, and the stat = "identity" parameter is used to specify that the heights of the bars should be proportional to the values in the data. The fill parameter is used to set the color of the bars.

One of the advantages of using ggplot2 is the ability to easily add layers to the plot. For example, you can add error bars, labels, or themes to enhance the visualization.

Adding Error Bars

Error bars can be added to a barplot to indicate the variability or uncertainty in the data. Here is an example of how to add error bars using ggplot2:

# Sample data frame with error bars
df <- data.frame(
  Category = c("A", "B", "C", "D"),
  Value = c(10, 15, 7, 12),
  Error = c(2, 1, 3, 2)
)

# Creating a barplot with error bars
ggplot(df, aes(x = Category, y = Value)) +
  geom_bar(stat = "identity", fill = "skyblue") +
  geom_errorbar(aes(ymin = Value - Error, ymax = Value + Error), width = 0.2) +
  labs(title = "Barplot with Error Bars", x = "Categories", y = "Values") +
  theme_minimal()

In this example, the geom_errorbar() function is used to add error bars to the plot. The ymin and ymax parameters are used to specify the lower and upper bounds of the error bars, respectively. The width parameter is used to set the width of the error bars.

Adding Labels

Labels can be added to a barplot to provide additional information or to highlight specific data points. Here is an example of how to add labels using ggplot2:

# Creating a barplot with labels
ggplot(df, aes(x = Category, y = Value)) +
  geom_bar(stat = "identity", fill = "skyblue") +
  geom_text(aes(label = Value), vjust = -0.5) +
  labs(title = "Barplot with Labels", x = "Categories", y = "Values") +
  theme_minimal()

In this example, the geom_text() function is used to add labels to the bars. The label parameter is used to specify the text to be displayed, and the vjust parameter is used to adjust the vertical position of the labels.

Customizing Themes

ggplot2 offers a variety of themes that can be applied to customize the appearance of the plot. Here is an example of how to apply a custom theme using ggplot2:

# Creating a barplot with a custom theme
ggplot(df, aes(x = Category, y = Value)) +
  geom_bar(stat = "identity", fill = "skyblue") +
  labs(title = "Barplot with Custom Theme", x = "Categories", y = "Values") +
  theme_classic() +
  theme(
    plot.title = element_text(hjust = 0.5, size = 20),
    axis.title.x = element_text(size = 15),
    axis.title.y = element_text(size = 15),
    axis.text.x = element_text(size = 12),
    axis.text.y = element_text(size = 12)
  )

In this example, the theme_classic() function is used to apply a classic theme to the plot. The theme() function is used to customize various elements of the plot, such as the title, axis labels, and axis text.

Comparing Different Types of Barplots

When deciding which type of barplot to use, it is important to consider the nature of your data and the specific insights you want to convey. Here is a comparison of different types of barplots:

Each type of barplot has its own strengths and is suited to different types of data and analytical needs. Choosing the right type of barplot can help you effectively communicate your findings and insights.

💡 Note: When creating barplots, it is important to ensure that the data is accurately represented and that the plot is easy to interpret. Customizing the appearance of the plot can enhance its readability and aesthetic appeal, but it should not compromise the clarity of the data.

In addition to the types of barplots mentioned above, there are other variations and customizations that can be applied to suit specific needs. For example, you can create barplots with different shapes, sizes, or orientations to better visualize complex datasets.

One important consideration when creating barplots is the choice of colors. Colors can be used to highlight specific data points or to differentiate between different groups. However, it is important to choose colors that are visually distinct and easy to interpret. Using a consistent color scheme can also help to maintain a cohesive and professional appearance.

Another consideration is the use of labels and annotations. Adding labels to the bars can provide additional context or highlight specific data points. However, it is important to ensure that the labels do not clutter the plot or obscure the data. Using a consistent font and size for the labels can help to maintain a clean and professional appearance.

Finally, it is important to consider the overall design and layout of the plot. The title, axis labels, and legend should be clearly visible and easy to read. The plot should be well-organized and easy to navigate, with a logical flow from one element to the next. By paying attention to these details, you can create barplots that are both informative and visually appealing.

In summary, barplots are a versatile and powerful tool for data visualization in R. Whether you are creating a basic barplot or a more complex customization, understanding the different types of barplots and how to customize them can help you effectively communicate your findings and insights. By following the guidelines and techniques outlined in this post, you can create barplots that are both informative and visually appealing, enhancing your data analysis and presentation skills.
