In the world of chemistry, understanding molecular structures is fundamental to grasping how different compounds interact and behave. One of the most effective ways to visualize these structures is through the use of ball and stick models. These models provide a clear and intuitive representation of molecular geometry, helping students and researchers alike to comprehend the spatial arrangement of atoms within a molecule.
What is a Ball and Stick Model?
A ball and stick model is a three-dimensional representation of a molecule where atoms are depicted as spheres (balls) and chemical bonds are represented as sticks. This model is particularly useful for illustrating the spatial relationships between atoms, making it easier to understand the molecular geometry and the types of bonds present.
Components of a Ball and Stick Model
The ball and stick model consists of two primary components:
- Balls: These represent the atoms in the molecule. The size and color of the balls often correspond to the type of atom, making it easy to identify different elements within the molecule.
- Sticks: These represent the chemical bonds between atoms. The length and type of the sticks can indicate the type of bond (single, double, triple) and the distance between atoms.
Types of Chemical Bonds in Ball and Stick Models
Chemical bonds are the forces that hold atoms together in a molecule. In a ball and stick model, these bonds are represented by sticks of varying lengths and types. The most common types of bonds are:
- Single Bonds: Represented by a single stick between two atoms, indicating a shared pair of electrons.
- Double Bonds: Represented by two parallel sticks between two atoms, indicating two shared pairs of electrons.
- Triple Bonds: Represented by three parallel sticks between two atoms, indicating three shared pairs of electrons.
Advantages of Ball and Stick Models
The ball and stick model offers several advantages over other types of molecular representations:
- Clarity: The three-dimensional nature of the model provides a clear view of the spatial arrangement of atoms, making it easier to understand molecular geometry.
- Simplicity: The model is straightforward and easy to interpret, even for those with limited chemical knowledge.
- Versatility: It can be used to represent a wide range of molecules, from simple diatomic molecules to complex organic compounds.
Limitations of Ball and Stick Models
While ball and stick models are highly useful, they also have some limitations:
- Size Representation: The size of the balls does not always accurately represent the relative sizes of the atoms.
- Bond Lengths: The lengths of the sticks may not always accurately represent the actual bond lengths between atoms.
- Electron Clouds: The model does not show the electron clouds around the atoms, which can be important for understanding chemical reactivity.
Applications of Ball and Stick Models
Ball and stick models are widely used in various fields of chemistry and related sciences. Some of the key applications include:
- Educational Tools: These models are commonly used in classrooms to teach students about molecular structures and chemical bonding.
- Research: Researchers use ball and stick models to visualize and analyze the structures of complex molecules, aiding in the development of new compounds and materials.
- Industrial Applications: In industries such as pharmaceuticals and materials science, ball and stick models help in designing and understanding the properties of new substances.
Creating a Ball and Stick Model
Creating a ball and stick model involves several steps. Here is a basic guide to help you get started:
- Identify the Molecule: Determine the molecular formula of the compound you want to represent.
- Gather Materials: You will need spheres of different sizes and colors to represent the atoms, and sticks or rods to represent the bonds.
- Assemble the Model: Arrange the spheres in the correct spatial configuration and connect them with sticks to represent the bonds.
- Verify the Structure: Ensure that the model accurately represents the molecular geometry and bond types.
📝 Note: For more complex molecules, you may need to use molecular modeling software to create accurate ball and stick models.

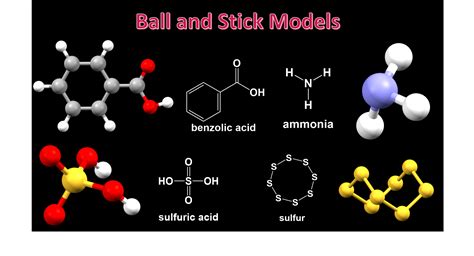

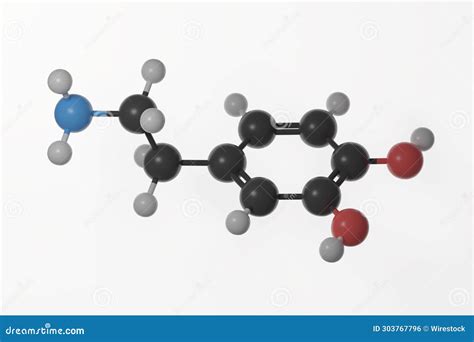

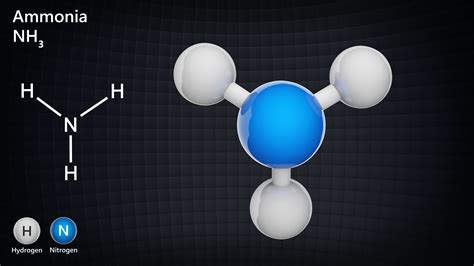

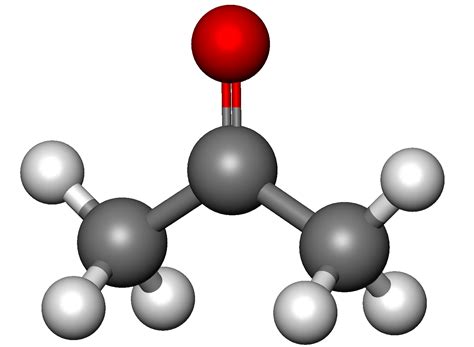

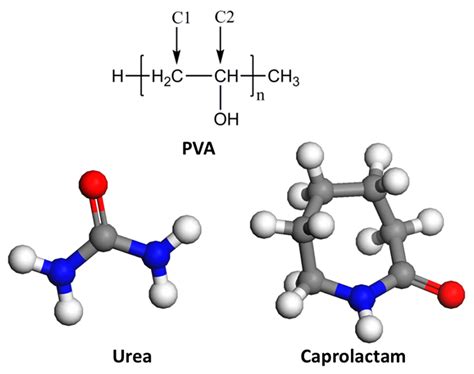

Examples of Ball and Stick Models
To better understand how ball and stick models work, let’s look at a few examples:

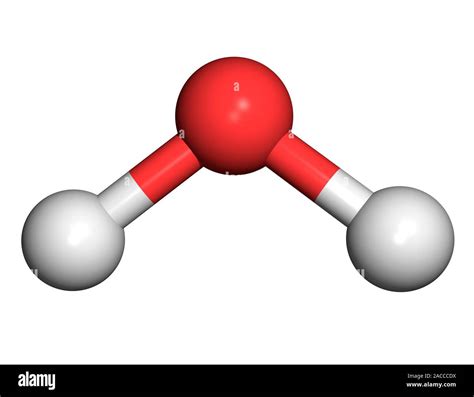

Water Molecule (H2O)
The water molecule consists of two hydrogen atoms bonded to one oxygen atom. In a ball and stick model, the oxygen atom is represented by a larger sphere, and the hydrogen atoms by smaller spheres. The bonds between the oxygen and hydrogen atoms are represented by single sticks.
Methane Molecule (CH4)
The methane molecule consists of one carbon atom bonded to four hydrogen atoms. In a ball and stick model, the carbon atom is represented by a larger sphere, and the hydrogen atoms by smaller spheres. The bonds between the carbon and hydrogen atoms are represented by single sticks, forming a tetrahedral shape.
Ethene Molecule (C2H4)
The ethene molecule consists of two carbon atoms bonded to each other by a double bond, with each carbon atom also bonded to two hydrogen atoms. In a ball and stick model, the carbon atoms are represented by larger spheres, and the hydrogen atoms by smaller spheres. The double bond between the carbon atoms is represented by two parallel sticks, and the single bonds to the hydrogen atoms by single sticks.

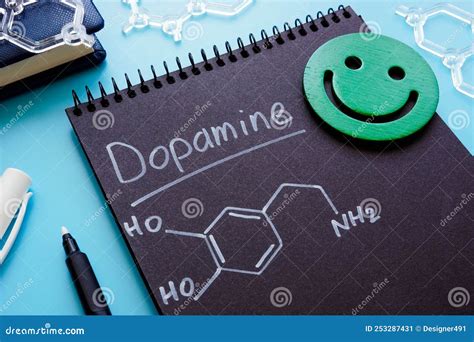

Comparing Ball and Stick Models with Other Molecular Representations
There are several other types of molecular representations, each with its own advantages and limitations. Here is a comparison of ball and stick models with some other common representations:
| Model Type | Description | Advantages | Limitations |
|---|---|---|---|
| Ball and Stick | Atoms as spheres, bonds as sticks | Clear 3D representation, easy to interpret | Size and bond length inaccuracies, no electron clouds |
| Space-Filling | Atoms as spheres, no bonds shown | Accurate representation of atomic sizes, shows molecular shape | Does not show bonds, can be cluttered |
| Wireframe | Atoms as points, bonds as lines | Simple and clear, shows bond angles | Does not show atomic sizes, can be confusing |
| Stick | Atoms as small spheres, bonds as sticks | Clear representation of bonds, shows molecular shape | Does not show atomic sizes accurately, can be cluttered |
Each of these models has its own strengths and weaknesses, and the choice of model depends on the specific needs of the application.
Advanced Techniques in Ball and Stick Modeling
For more advanced applications, ball and stick models can be enhanced with additional techniques and tools. Some of these techniques include:
- Color Coding: Using different colors to represent different types of atoms can make the model more visually appealing and easier to interpret.
- Dynamic Models: Creating models that can be rotated and manipulated in three dimensions can provide a more interactive and immersive learning experience.
- Software Tools: Molecular modeling software can be used to create highly accurate and detailed ball and stick models, allowing for precise control over atomic positions and bond lengths.
📝 Note: Advanced techniques often require specialized software and equipment, but they can significantly enhance the accuracy and usefulness of ball and stick models.
Conclusion
Ball and stick models are an invaluable tool in the study of chemistry, providing a clear and intuitive representation of molecular structures. By understanding the components, types of bonds, and applications of these models, students and researchers can gain a deeper insight into the behavior of molecules. Whether used in educational settings, research laboratories, or industrial applications, ball and stick models continue to play a crucial role in advancing our knowledge of chemistry and related fields.
