In the world of audio-visual technology, the integration of AV in HDMI out has revolutionized how we connect and enjoy our multimedia experiences. HDMI, or High-Definition Multimedia Interface, has become the standard for transmitting high-quality audio and video signals between devices. Understanding the intricacies of AV in HDMI out can help you make the most of your home theater setup, gaming console, or any other AV system.
Understanding HDMI and Its Role in AV Systems
HDMI is a digital interface that allows for the transmission of both audio and video signals over a single cable. This makes it a versatile and convenient choice for connecting various devices, such as Blu-ray players, gaming consoles, and streaming devices, to your TV or monitor. The AV in HDMI out configuration refers to the input and output of audio-visual signals through HDMI ports.
Benefits of Using HDMI for AV Connections
There are several advantages to using HDMI for your AV connections:
- High-Quality Audio and Video: HDMI supports high-definition video and multi-channel audio, ensuring that you get the best possible quality from your devices.
- Single Cable Solution: With HDMI, you can transmit both audio and video signals through a single cable, reducing clutter and simplifying your setup.
- Compatibility: HDMI is widely supported by a vast array of devices, making it easy to connect different components in your AV system.
- Future-Proofing: HDMI standards are regularly updated to support higher resolutions and faster data transfer rates, ensuring that your setup remains relevant for years to come.
Setting Up Your AV System with HDMI
Setting up an AV system with AV in HDMI out involves connecting your devices correctly to ensure optimal performance. Here are the steps to follow:
Gather Your Equipment
Before you begin, make sure you have all the necessary equipment:
- HDMI cables
- Devices with HDMI ports (e.g., Blu-ray player, gaming console, streaming device)
- TV or monitor with HDMI inputs
- AV receiver (optional, for enhanced audio)
Connecting Devices
Follow these steps to connect your devices:
- Identify the HDMI ports on your TV or monitor and the devices you want to connect.
- Connect one end of an HDMI cable to the HDMI out port of your device (e.g., Blu-ray player).
- Connect the other end of the HDMI cable to an available HDMI in port on your TV or monitor.
- Repeat the process for each device you want to connect.
If you are using an AV receiver, connect the HDMI out port of your devices to the HDMI in ports on the receiver, and then connect the HDMI out port of the receiver to the HDMI in port on your TV or monitor.
Configuring Your Devices
Once your devices are connected, you need to configure them to ensure they work together seamlessly:
- Turn on your TV or monitor and select the correct HDMI input source.
- Turn on the device you want to use (e.g., Blu-ray player) and ensure it is set to output through the HDMI port.
- If using an AV receiver, configure the receiver to pass through the audio and video signals correctly.
🔍 Note: Make sure to use high-quality HDMI cables to avoid signal degradation and ensure the best possible performance.
Troubleshooting Common Issues
Even with a well-planned setup, you might encounter some issues. Here are some common problems and their solutions:
No Signal on TV
If your TV displays "No Signal," check the following:
- Ensure that the HDMI cable is securely connected to both the device and the TV.
- Verify that the correct HDMI input source is selected on your TV.
- Check if the device is turned on and set to output through the HDMI port.
Poor Video Quality
If the video quality is poor, consider these steps:
- Use a higher-quality HDMI cable.
- Ensure that the device and TV are set to the correct resolution and refresh rate.
- Check for any interference from other electronic devices.
No Audio
If there is no audio, try the following:
- Ensure that the audio settings on your device are correctly configured.
- Check the volume levels on both the device and the TV or AV receiver.
- Verify that the audio output is set to the correct HDMI port.
Advanced Features of HDMI
HDMI offers several advanced features that can enhance your AV experience:

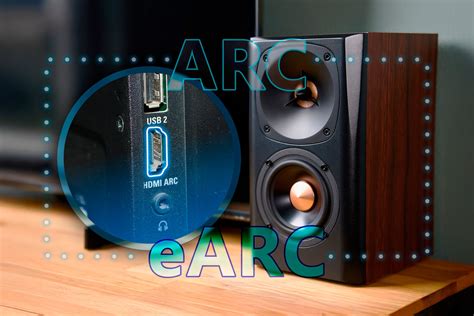

HDMI ARC (Audio Return Channel)
HDMI ARC allows audio to be sent from your TV back to your AV receiver or soundbar through the same HDMI cable. This eliminates the need for a separate audio cable and simplifies your setup. To use HDMI ARC, ensure that both your TV and AV receiver support this feature and are connected via an HDMI ARC port.
HDMI eARC (Enhanced Audio Return Channel)
HDMI eARC is an enhanced version of HDMI ARC that supports higher-quality audio formats, such as Dolby Atmos and DTS:X. This feature is ideal for home theater enthusiasts who want the best possible audio experience. To use HDMI eARC, ensure that both your TV and AV receiver support this feature and are connected via an HDMI eARC port.

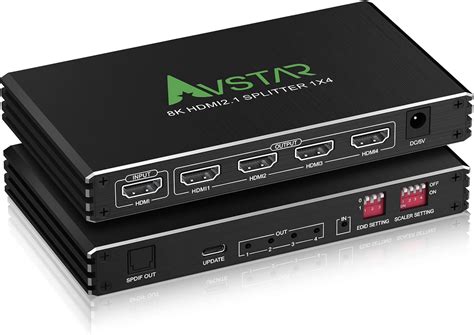

HDMI 2.1 Features
HDMI 2.1 is the latest version of the HDMI standard, offering several advanced features:
- Higher Resolutions: Supports 8K resolution at 60Hz and 4K resolution at 120Hz.
- Dynamic HDR: Provides improved contrast and color accuracy.
- Variable Refresh Rate (VRR): Reduces screen tearing and stuttering in gaming.
- Quick Frame Transport (QFT): Reduces input lag for a smoother gaming experience.
- Auto Low Latency Mode (ALLM): Automatically switches to the lowest latency mode for gaming.
To take advantage of these features, ensure that your devices and cables support HDMI 2.1.
Future of HDMI
HDMI technology continues to evolve, with new standards and features being developed to meet the demands of modern AV systems. Future iterations of HDMI are expected to support even higher resolutions, faster data transfer rates, and more advanced audio formats. Staying informed about the latest HDMI developments can help you future-proof your AV setup and ensure that you are always getting the best possible performance.
As the demand for high-quality audio-visual experiences grows, the importance of AV in HDMI out configurations will only increase. By understanding the benefits and features of HDMI, you can create a seamless and immersive AV system that meets your needs and enhances your enjoyment of multimedia content.
In conclusion, HDMI has become an essential component of modern AV systems, offering a convenient and high-quality way to connect and enjoy your devices. Whether you are setting up a home theater, gaming console, or any other AV system, understanding the intricacies of AV in HDMI out can help you make the most of your setup and ensure that you get the best possible performance. By following the steps outlined in this guide and staying informed about the latest HDMI developments, you can create a seamless and immersive AV experience that meets your needs and enhances your enjoyment of multimedia content.
