In the realm of engineering and manufacturing, precision and accuracy are paramount. One of the key standards that ensure these qualities is the ASME Y14.5 standard. This standard, developed by the American Society of Mechanical Engineers (ASME), provides guidelines for dimensioning and tolerancing in engineering drawings. Understanding and implementing ASME Y14.5 is crucial for engineers, designers, and manufacturers to ensure that their products meet the required specifications and perform as intended.
Understanding ASME Y14.5
The ASME Y14.5 standard is a comprehensive guide that outlines the principles of geometric dimensioning and tolerancing (GD&T). GD&T is a symbolic language used on engineering drawings to communicate design intent and ensure that parts fit and function correctly. The standard covers various aspects of GD&T, including:
- Basic Dimensions: These are the nominal dimensions of a part, without any tolerances.
- Tolerances: These are the allowable variations from the nominal dimensions.
- Geometric Characteristics: These include features like flatness, straightness, circularity, and cylindricity.
- Datums: These are reference points or surfaces used to establish the origin of a coordinate system.
- Material Condition Modifiers: These indicate the condition of the material (e.g., maximum material condition, least material condition) and affect the tolerance zone.
Importance of ASME Y14.5 in Engineering
The ASME Y14.5 standard is essential for several reasons:
- Consistency: It provides a consistent language for communicating design intent, ensuring that everyone involved in the manufacturing process understands the requirements.
- Precision: By specifying tolerances and geometric characteristics, ASME Y14.5 helps achieve the required precision in manufacturing.
- Cost Efficiency: Proper use of GD&T can reduce the need for rework and scrap, leading to cost savings.
- Quality Control: The standard helps in maintaining high-quality standards by ensuring that parts meet the specified dimensions and tolerances.
Key Concepts in ASME Y14.5
To effectively use ASME Y14.5, it is important to understand some key concepts:
Datums
Datums are reference points or surfaces used to establish the origin of a coordinate system. They are crucial for defining the location and orientation of features on a part. Datums can be primary, secondary, or tertiary, depending on their order of precedence.
Tolerance Zones
Tolerance zones define the allowable variation from the nominal dimension. They can be unilateral (one-sided) or bilateral (two-sided). The size and shape of the tolerance zone depend on the geometric characteristic being controlled.
Material Condition Modifiers
Material condition modifiers indicate the condition of the material and affect the tolerance zone. The two most common modifiers are:
- Maximum Material Condition (MMC): This is the condition where the feature contains the maximum amount of material within the stated limits of size.
- Least Material Condition (LMC): This is the condition where the feature contains the least amount of material within the stated limits of size.
Geometric Characteristics
Geometric characteristics define the form, orientation, location, and runout of features. Some common geometric characteristics include:
- Flatness: A condition where all elements of a surface are in one plane.
- Straightness: A condition where all elements of a surface or axis are in a straight line.
- Circularity: A condition where all points of a surface are equidistant from a common axis.
- Cylindricity: A condition where all points of a surface are equidistant from a common axis.

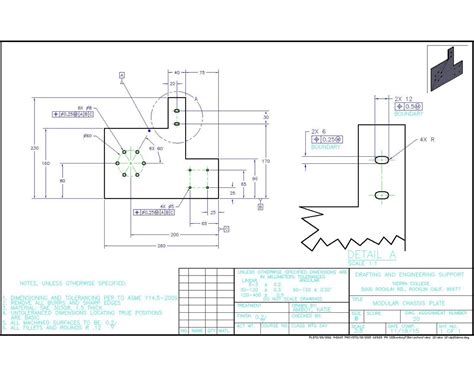

Applying ASME Y14.5 in Engineering Drawings
Applying ASME Y14.5 in engineering drawings involves several steps. Here is a basic guide to help you get started:
Step 1: Define the Design Intent
Before creating the drawing, clearly define the design intent. This includes specifying the nominal dimensions, tolerances, and geometric characteristics required for the part to function correctly.
Step 2: Choose the Appropriate Datums
Select the datums that will be used to establish the coordinate system. Ensure that the datums are clearly defined and easily identifiable on the drawing.
Step 3: Specify the Tolerances
Specify the tolerances for each dimension. Use the appropriate symbols and notation to indicate the type of tolerance (e.g., unilateral, bilateral) and the tolerance zone.
Step 4: Apply Geometric Characteristics
Apply the necessary geometric characteristics to control the form, orientation, location, and runout of features. Use the appropriate symbols and notation to indicate the characteristic and the tolerance zone.
Step 5: Use Material Condition Modifiers
If applicable, use material condition modifiers to indicate the condition of the material and affect the tolerance zone. Use the appropriate symbols and notation to indicate the modifier.
💡 Note: It is important to use ASME Y14.5 consistently throughout the drawing to avoid confusion and ensure that the design intent is clearly communicated.
Common Challenges in Implementing ASME Y14.5
While ASME Y14.5 provides a comprehensive framework for dimensioning and tolerancing, there are several challenges that engineers and designers may face:
- Complexity: The standard can be complex and difficult to understand, especially for those new to GD&T.
- Interpretation: Different people may interpret the same drawing differently, leading to misunderstandings and errors.
- Consistency: Ensuring consistency in the application of ASME Y14.5 across different drawings and projects can be challenging.
- Training: Proper training is essential to ensure that everyone involved in the manufacturing process understands and applies ASME Y14.5 correctly.
Best Practices for Using ASME Y14.5
To overcome these challenges and effectively use ASME Y14.5, consider the following best practices:
- Training: Provide comprehensive training to all personnel involved in the design and manufacturing process.
- Consistency: Use ASME Y14.5 consistently across all drawings and projects.
- Clarity: Ensure that the design intent is clearly communicated on the drawing.
- Review: Regularly review and update drawings to ensure that they comply with ASME Y14.5 and meet the required specifications.
- Feedback: Encourage feedback from all stakeholders to identify and address any issues or misunderstandings.
💡 Note: Regularly updating your knowledge of ASME Y14.5 and staying current with any changes or updates to the standard is crucial for maintaining compliance and ensuring the quality of your products.
Examples of ASME Y14.5 in Action
To illustrate the application of ASME Y14.5, let's consider a few examples:
Example 1: Flatness Control
Suppose you need to control the flatness of a surface on a part. You can use the flatness symbol and specify the tolerance zone. For example, if the surface must be flat within 0.05 mm, you would indicate this on the drawing as follows:
| Symbol | Tolerance Zone |
|---|---|
| Flatness | 0.05 mm |
Example 2: Straightness Control
If you need to control the straightness of an axis, you can use the straightness symbol and specify the tolerance zone. For example, if the axis must be straight within 0.1 mm, you would indicate this on the drawing as follows:
| Symbol | Tolerance Zone |
|---|---|
| Straightness | 0.1 mm |
Example 3: Circularity Control
To control the circularity of a feature, you can use the circularity symbol and specify the tolerance zone. For example, if the feature must be circular within 0.03 mm, you would indicate this on the drawing as follows:
| Symbol | Tolerance Zone |
|---|---|
| Circularity | 0.03 mm |
Example 4: Cylindricity Control
For controlling the cylindricity of a feature, use the cylindricity symbol and specify the tolerance zone. For example, if the feature must be cylindrical within 0.04 mm, you would indicate this on the drawing as follows:
| Symbol | Tolerance Zone |
|---|---|
| Cylindricity | 0.04 mm |
These examples illustrate how ASME Y14.5 can be used to control various geometric characteristics on engineering drawings. By specifying the appropriate symbols and tolerance zones, you can ensure that the parts meet the required specifications and perform as intended.
In conclusion, ASME Y14.5 is a critical standard for ensuring precision and accuracy in engineering and manufacturing. By understanding and applying the principles of GD&T, engineers and designers can create drawings that clearly communicate design intent and ensure that parts fit and function correctly. While there are challenges in implementing ASME Y14.5, following best practices and staying current with the standard can help overcome these challenges and achieve high-quality results. The examples provided illustrate how ASME Y14.5 can be used to control various geometric characteristics, ensuring that parts meet the required specifications and perform as intended.
