In the realm of construction and engineering, the importance of meticulous documentation cannot be overstated. One critical aspect of this documentation is As Built Documentation. This type of documentation serves as a comprehensive record of the final state of a construction project, detailing every aspect from the initial design to the final construction. It is an essential tool for future maintenance, renovations, and compliance with regulatory standards.
Understanding As Built Documentation
As Built Documentation refers to the detailed records that capture the actual conditions of a construction project upon its completion. Unlike design documents, which outline the intended plans, As Built Documentation reflects the real-world modifications and adjustments made during the construction process. This documentation is crucial for various stakeholders, including architects, engineers, contractors, and facility managers.
Importance of As Built Documentation
As Built Documentation plays a pivotal role in several key areas:
- Future Maintenance and Repairs: Accurate As Built Documentation provides a clear roadmap for future maintenance and repair work. It helps technicians understand the exact layout and specifications of the building systems, reducing the time and cost associated with troubleshooting and repairs.
- Renovations and Expansions: When planning renovations or expansions, having detailed As Built Documentation ensures that new work integrates seamlessly with the existing structure. This prevents costly errors and delays.
- Compliance and Safety: As Built Documentation is essential for compliance with building codes and safety regulations. It provides evidence that the construction meets all required standards and can be used during inspections and audits.
- Facility Management: For facility managers, As Built Documentation is a valuable resource for managing the day-to-day operations of a building. It helps in scheduling maintenance, managing utilities, and ensuring the overall efficiency of the facility.
Components of As Built Documentation
As Built Documentation typically includes a variety of components, each serving a specific purpose. Some of the key components are:

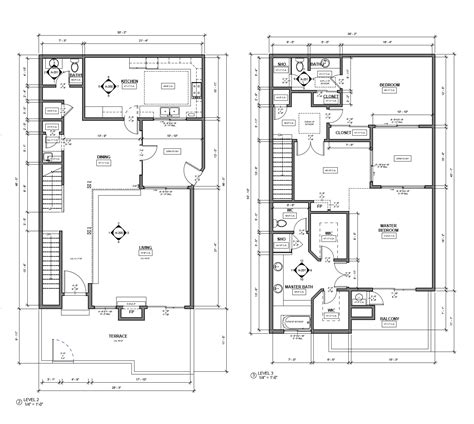

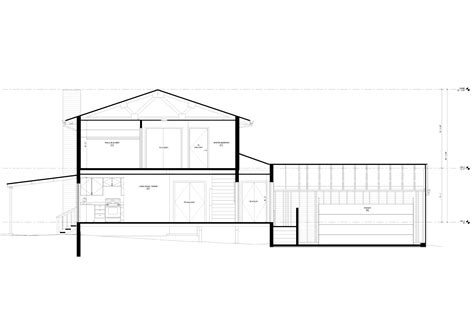

- Architectural Drawings: These drawings show the final layout of the building, including walls, doors, windows, and other architectural features.

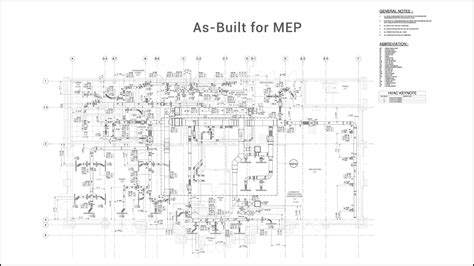

- Mechanical, Electrical, and Plumbing (MEP) Drawings: These drawings detail the systems that support the building's functionality, such as HVAC, electrical wiring, and plumbing.

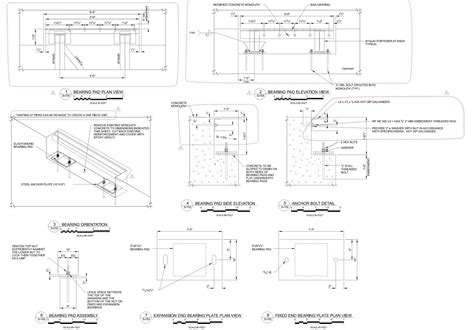

- Structural Drawings: These drawings provide information about the building's structural elements, including foundations, beams, and columns.
- Specifications and Material Lists: These documents list the materials and products used in the construction, along with their specifications and installation details.
- Photographs and Videos: Visual documentation, such as photographs and videos, can provide a clear and detailed record of the construction process and the final product.
- Change Orders and Field Notes: These documents record any changes made during the construction process, along with the reasons for those changes.
Creating As Built Documentation
The process of creating As Built Documentation involves several steps, each requiring careful attention to detail. Here is a general overview of the process:
Initial Planning
Before construction begins, it is essential to establish a plan for As Built Documentation. This includes:
- Identifying the key components that need to be documented.
- Assigning responsibilities for documentation to specific team members.
- Setting up a system for organizing and storing documentation.
Field Documentation
During the construction process, field documentation is crucial. This involves:
- Taking detailed measurements and notes of the construction progress.
- Recording any changes or deviations from the original design.
- Photographing and videotaping key stages of the construction process.
Final Documentation
Once construction is complete, the final As Built Documentation is compiled. This includes:
- Updating all drawings and specifications to reflect the final conditions.
- Including all field notes, change orders, and photographs.
- Reviewing the documentation for accuracy and completeness.
📝 Note: It is important to involve all relevant stakeholders in the review process to ensure that the documentation is accurate and comprehensive.
Best Practices for As Built Documentation
To ensure the effectiveness of As Built Documentation, it is essential to follow best practices. Some key best practices include:
- Consistency: Use a consistent format and style for all documentation to make it easier to understand and navigate.
- Accuracy: Ensure that all measurements, specifications, and notes are accurate and up-to-date.
- Completeness: Include all relevant information and avoid omitting important details.
- Accessibility: Store the documentation in a format that is easily accessible to all stakeholders, such as digital files or cloud-based platforms.
- Regular Updates: Keep the documentation up-to-date with any changes or modifications made after the initial construction.
Challenges in As Built Documentation
Despite its importance, creating As Built Documentation can present several challenges. Some common challenges include:
- Time Constraints: The pressure to complete construction projects on time can lead to rushed documentation, resulting in inaccuracies and omissions.
- Resource Limitations: Limited resources, such as personnel and equipment, can make it difficult to document all aspects of the construction process thoroughly.
- Complexity: The complexity of modern construction projects can make it challenging to capture all the necessary details in the documentation.
- Coordination: Coordinating documentation efforts among multiple teams and stakeholders can be difficult, leading to inconsistencies and gaps in the documentation.
📝 Note: Addressing these challenges requires a proactive approach, including adequate planning, resource allocation, and effective communication among all stakeholders.
Technology in As Built Documentation
Advances in technology have significantly enhanced the process of creating As Built Documentation. Some of the key technologies include:
- Building Information Modeling (BIM): BIM software allows for the creation of detailed 3D models of construction projects, which can be used to generate accurate As Built Documentation.
- Laser Scanning: Laser scanning technology can capture precise measurements of the construction site, providing a detailed record of the final conditions.
- Drones: Drones equipped with cameras and sensors can capture aerial photographs and videos, providing a comprehensive view of the construction site.
- Mobile Apps: Mobile applications allow field personnel to document construction progress in real-time, ensuring that all changes and modifications are captured accurately.
Case Studies
To illustrate the importance and effectiveness of As Built Documentation, let's examine a few case studies:
Case Study 1: Commercial Office Building
A commercial office building project required detailed As Built Documentation to ensure compliance with local building codes and to facilitate future maintenance. The project team used BIM software to create a comprehensive 3D model of the building, which was updated throughout the construction process. This model served as the basis for the final As Built Documentation, which included detailed drawings, specifications, and photographs. The documentation was stored in a cloud-based platform, making it easily accessible to all stakeholders.
Case Study 2: Industrial Facility
An industrial facility project involved complex MEP systems that required precise documentation. The project team used laser scanning technology to capture detailed measurements of the facility, which were then used to create accurate As Built Documentation. The documentation included detailed MEP drawings, specifications, and field notes, ensuring that all systems were properly documented. The documentation was reviewed by all stakeholders and stored in a digital format for future reference.
Case Study 3: Residential Community
A residential community project required As Built Documentation to ensure that all homes were built to the specified standards and to facilitate future maintenance. The project team used mobile apps to document the construction progress in real-time, capturing photographs, videos, and field notes. The documentation was compiled into a comprehensive report, which included detailed drawings, specifications, and photographs. The report was provided to the homeowners' association for future reference.
Future Trends in As Built Documentation
The field of As Built Documentation is continually evolving, driven by advancements in technology and changing industry standards. Some future trends to watch include:
- Integration with IoT: The integration of the Internet of Things (IoT) with As Built Documentation can provide real-time data on the performance and condition of building systems, enhancing maintenance and operational efficiency.
- Augmented Reality (AR): AR technology can be used to overlay As Built Documentation onto the physical building, providing a more immersive and interactive experience for stakeholders.
- Artificial Intelligence (AI): AI can be used to analyze As Built Documentation and identify potential issues or areas for improvement, enhancing the overall quality and efficiency of construction projects.
- Cloud-Based Platforms: The use of cloud-based platforms for storing and sharing As Built Documentation will continue to grow, providing greater accessibility and collaboration among stakeholders.
📝 Note: Staying abreast of these trends and incorporating them into As Built Documentation practices can enhance the effectiveness and efficiency of construction projects.
In conclusion, As Built Documentation is a critical component of any construction project, providing a comprehensive record of the final conditions and ensuring compliance, maintenance, and operational efficiency. By following best practices, leveraging technology, and addressing challenges proactively, stakeholders can create accurate and effective As Built Documentation that supports the long-term success of their projects. The integration of advanced technologies and future trends will continue to enhance the process, making As Built Documentation an even more valuable tool for the construction industry.
