Apache Superset Cookbook

Apache Superset is a powerful open-source data exploration and visualization platform that has gained significant traction in the data analytics community. Whether you are a data analyst, data scientist, or business intelligence professional, mastering Apache Superset can greatly enhance your ability to derive insights from data. This comprehensive guide, the Apache Superset Cookbook, will walk you through the essential steps to get started with Apache Superset, from installation to advanced visualization techniques.

Getting Started with Apache Superset

Before diving into the advanced features, it's crucial to understand the basics of Apache Superset. This section will cover the installation process and initial setup.

Installation

Installing Apache Superset involves several steps, but the process is straightforward. Here’s a step-by-step guide to get you up and running:

1. Prerequisites: Ensure you have Python 3.6 or later installed on your system. Additionally, you will need a database to store Superset metadata. PostgreSQL is commonly used for this purpose.
2. Clone the Repository: Clone the Apache Superset repository from GitHub.

   git clone https://github.com/apache/superset.git

3. Create a Virtual Environment: It’s a good practice to create a virtual environment to manage dependencies.

   python3 -m venv venv

4. Activate the Virtual Environment:

   source venv/bin/activate

5. Install Dependencies: Navigate to the Superset directory and install the required dependencies.

   pip install -r requirements.txt

6. Initialize the Database: Initialize the Superset database.

   superset db upgrade

7. Create an Admin User: Create an admin user to access the Superset interface.

   export FLASK_APP=superset
       superset fab create-admin


8. Initialize Roles and Permissions: Initialize the roles and permissions.

   superset load_examples
       superset init


9. Start the Superset Server: Finally, start the Superset server.

   superset run -p 8088 --with-threads --reload --debugger

Once the server is running, you can access the Superset interface by navigating to http://localhost:8088 in your web browser. Log in using the admin credentials you created during the setup process.

📝 Note: Ensure that your database is running and accessible before initializing Superset. This will prevent any connectivity issues during the setup process.

Initial Setup

After logging in, you will be prompted to complete the initial setup. This includes configuring your database connections, setting up data sources, and creating your first dashboard. Here’s a brief overview of the steps involved:

1. Database Connections: Add your data sources by configuring database connections. Superset supports a wide range of databases, including MySQL, PostgreSQL, and SQL Server.
2. Data Sources: Create data sources by defining the schema and tables you want to visualize. This step involves specifying the database connection and selecting the relevant tables.
3. Dashboards: Create your first dashboard by adding charts and visualizations. You can customize the layout and design of your dashboard to suit your needs.

By following these steps, you will have a fully functional Apache Superset instance ready for data exploration and visualization.

Exploring Data with Apache Superset

One of the key features of Apache Superset is its ability to explore and visualize data efficiently. This section will cover the various tools and techniques available for data exploration.

Data Exploration

Data exploration in Apache Superset is facilitated through its intuitive interface. Here are some key features that enhance data exploration:

1. SQL Lab: The SQL Lab allows you to write and execute SQL queries directly within the Superset interface. This is useful for ad-hoc analysis and data validation.

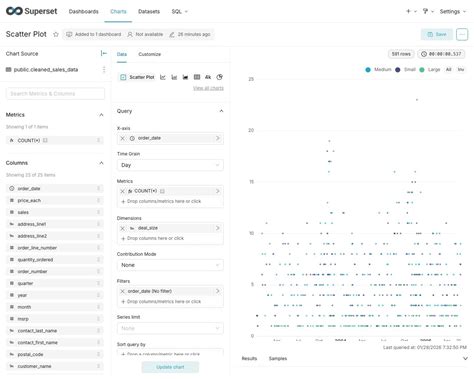

2. Chart Builder: The Chart Builder provides a drag-and-drop interface for creating visualizations. You can select the type of chart, configure the data fields, and customize the appearance.
3. Filters and Slicers: Apply filters and slicers to narrow down your data and focus on specific subsets. This is particularly useful for interactive dashboards.

By leveraging these tools, you can gain deeper insights into your data and make informed decisions.

📝 Note: Always validate your data queries in the SQL Lab before creating visualizations to ensure accuracy.

Advanced Visualization Techniques

Apache Superset offers a wide range of visualization options to suit different analytical needs. Here are some advanced visualization techniques you can explore:

1. Interactive Dashboards: Create interactive dashboards that allow users to drill down into data, apply filters, and explore different dimensions.
2. Custom Visualizations: Use custom visualizations to create unique and informative charts. Superset supports integration with external visualization libraries like D3.js.
3. Time Series Analysis: Analyze time-series data using line charts, area charts, and other time-based visualizations. This is useful for tracking trends and patterns over time.

These advanced techniques can help you create more engaging and informative visualizations, enhancing the overall data exploration experience.

Optimizing Performance

As your data grows, it's essential to optimize the performance of Apache Superset to ensure smooth operation. This section will cover best practices for performance optimization.

Database Optimization

Optimizing your database is crucial for improving the performance of Apache Superset. Here are some tips to enhance database performance:

1. Indexing: Ensure that your database tables are properly indexed. Indexing can significantly speed up query performance.
2. Query Optimization: Write efficient SQL queries to minimize execution time. Avoid using complex joins and subqueries where possible.
3. Caching: Implement caching mechanisms to store frequently accessed data. This can reduce the load on your database and improve response times.

By following these best practices, you can optimize your database for better performance in Apache Superset.

📝 Note: Regularly monitor your database performance and make adjustments as needed to maintain optimal performance.

Superset Configuration

In addition to database optimization, configuring Apache Superset correctly can also improve performance. Here are some key configuration settings to consider:

1. Worker Processes: Configure the number of worker processes to handle concurrent requests efficiently. This can be done by adjusting the CELERY_WORKERS setting in the Superset configuration file.
2. Cache Settings: Enable caching for frequently accessed data to reduce database load. Superset supports various caching mechanisms, including Redis and Memcached.
3. Query Limits: Set query limits to prevent long-running queries from impacting performance. This can be configured in the Superset settings.

By optimizing these configuration settings, you can ensure that Apache Superset runs smoothly and efficiently.

Security and Access Control

Security is a critical aspect of any data analytics platform. Apache Superset provides robust security features to protect your data and ensure compliance with regulatory requirements.

User Authentication

Apache Superset supports various authentication methods to secure access to the platform. Here are some common authentication options:

1. Local Authentication: Use local authentication to manage users and roles within Superset. This is suitable for small to medium-sized deployments.
2. LDAP Authentication: Integrate with LDAP for centralized user management. This is ideal for larger organizations with existing LDAP infrastructure.
3. OAuth Authentication: Use OAuth for secure authentication with external services. This is useful for integrating Superset with other applications and services.

By configuring the appropriate authentication method, you can ensure secure access to Apache Superset.

📝 Note: Regularly review and update user permissions to maintain security and compliance.

Role-Based Access Control

Role-Based Access Control (RBAC) allows you to define roles and permissions for different users. This ensures that users have access only to the data and features they need. Here’s how to set up RBAC in Apache Superset:

1. Define Roles: Create roles with specific permissions. For example, you can create roles for data analysts, data scientists, and administrators.
2. Assign Permissions: Assign permissions to each role. This includes access to specific datasets, dashboards, and visualization tools.
3. Assign Users to Roles: Assign users to the appropriate roles based on their responsibilities and access requirements.

By implementing RBAC, you can enhance the security of your data and ensure that users have the appropriate level of access.

Integrating with Other Tools

Apache Superset can be integrated with various other tools and platforms to enhance its functionality. This section will cover some common integration options.

Data Integration

Integrating Apache Superset with other data sources can provide a comprehensive view of your data. Here are some common data integration options:

1. ETL Tools: Integrate with ETL (Extract, Transform, Load) tools like Apache NiFi or Talend to automate data ingestion and transformation.
2. Data Warehouses: Connect to data warehouses like Amazon Redshift, Google BigQuery, or Snowflake for scalable data storage and analysis.
3. APIs: Use APIs to integrate with external services and applications. This allows you to pull in data from various sources and visualize it in Superset.

By integrating with these tools, you can create a seamless data pipeline and enhance the capabilities of Apache Superset.

📝 Note: Ensure that your data integration processes are secure and compliant with regulatory requirements.

Visualization Integration

Apache Superset supports integration with external visualization libraries to create custom visualizations. Here are some popular visualization libraries you can integrate with Superset:

1. D3.js: Use D3.js to create interactive and custom visualizations. This is useful for creating unique and informative charts.
2. Plotly: Integrate with Plotly for advanced visualization capabilities. Plotly supports a wide range of chart types and interactive features.
3. Bokeh: Use Bokeh for creating interactive visualizations. Bokeh is particularly useful for time-series data and real-time analytics.

By integrating these visualization libraries, you can create more engaging and informative visualizations in Apache Superset.

Best Practices for Apache Superset

To get the most out of Apache Superset, it's essential to follow best practices. This section will cover some key best practices for using Apache Superset effectively.

Data Governance

Data governance is crucial for maintaining data quality and ensuring compliance with regulatory requirements. Here are some best practices for data governance in Apache Superset:

1. Data Quality: Ensure that your data is accurate, complete, and up-to-date. Implement data validation and cleansing processes to maintain data quality.
2. Data Lineage: Track the lineage of your data to understand its origin and transformations. This is useful for auditing and compliance purposes.
3. Data Security: Implement robust security measures to protect your data. This includes encryption, access controls, and regular security audits.

By following these best practices, you can ensure that your data is governed effectively and complies with regulatory requirements.

📝 Note: Regularly review and update your data governance policies to adapt to changing requirements and regulations.

User Training and Support

Providing adequate training and support to users is essential for maximizing the benefits of Apache Superset. Here are some best practices for user training and support:

1. Training Programs: Develop training programs to educate users on how to use Apache Superset effectively. This can include workshops, webinars, and online tutorials.
2. Documentation: Provide comprehensive documentation and resources to help users navigate the platform. This includes user guides, FAQs, and troubleshooting tips.
3. Support Channels: Establish support channels to assist users with any issues or questions. This can include email support, chat support, and community forums.

By implementing these best practices, you can ensure that users are well-equipped to use Apache Superset effectively and derive maximum value from the platform.

Case Studies and Real-World Applications

Apache Superset has been successfully deployed in various industries and organizations. This section will highlight some case studies and real-world applications of Apache Superset.

Healthcare

In the healthcare industry, Apache Superset is used to analyze patient data, track treatment outcomes, and monitor healthcare metrics. Here’s an example of how Apache Superset is used in a healthcare setting:

1. Patient Data Analysis: Analyze patient data to identify trends and patterns. This can help in improving patient care and outcomes.
2. Treatment Outcomes: Track treatment outcomes to evaluate the effectiveness of different treatments. This can inform clinical decisions and improve patient care.
3. Healthcare Metrics: Monitor key healthcare metrics such as patient satisfaction, readmission rates, and operational efficiency.

By leveraging Apache Superset, healthcare organizations can gain valuable insights into patient data and improve overall healthcare delivery.

Finance

In the finance industry, Apache Superset is used for risk management, fraud detection, and financial analysis. Here’s an example of how Apache Superset is used in a financial setting:

1. Risk Management: Analyze financial data to identify and mitigate risks. This can help in making informed investment decisions and managing portfolios.
2. Fraud Detection: Use data visualization to detect fraudulent activities and patterns. This can help in preventing financial losses and ensuring compliance.
3. Financial Analysis: Perform comprehensive financial analysis to evaluate performance, identify trends, and make data-driven decisions.

By utilizing Apache Superset, financial institutions can enhance their risk management strategies, detect fraud, and make informed financial decisions.

Retail

In the retail industry, Apache Superset is used for sales analysis, customer segmentation, and inventory management. Here’s an example of how Apache Superset is used in a retail setting:

1. Sales Analysis: Analyze sales data to identify trends, patterns, and opportunities. This can help in optimizing sales strategies and improving revenue.
2. Customer Segmentation: Segment customers based on their purchasing behavior and preferences. This can help in targeted marketing and personalized customer experiences.
3. Inventory Management: Monitor inventory levels and track stock movements. This can help in optimizing inventory management and reducing stockouts.

By leveraging Apache Superset, retail organizations can gain insights into sales performance, customer behavior, and inventory management, leading to improved operational efficiency and customer satisfaction.

Apache Superset is a versatile and powerful tool that can be applied across various industries to derive valuable insights from data. By following the guidelines and best practices outlined in this Apache Superset Cookbook, you can effectively utilize Apache Superset to enhance your data analytics capabilities and drive informed decision-making.

This comprehensive guide has covered the essential aspects of Apache Superset, from installation and initial setup to advanced visualization techniques and performance optimization. By mastering these concepts, you can unlock the full potential of Apache Superset and leverage it to gain deeper insights into your data.
