Electrostatic discharge (ESD) is a significant concern in various industries, particularly in electronics manufacturing and repair. ESD can cause severe damage to sensitive components, leading to malfunctions and failures. One of the most effective tools for mitigating ESD risks is the Anti Static Strap. This device is designed to safely ground individuals working with electronic components, ensuring that any static charge is dissipated harmlessly. In this post, we will delve into the importance of Anti Static Straps, their types, how to use them, and best practices for maintaining a static-free environment.
Understanding Electrostatic Discharge (ESD)
Electrostatic discharge occurs when two objects with different electrical potentials come into contact, resulting in a sudden flow of electricity. This discharge can generate high voltages, which can damage sensitive electronic components. ESD is particularly problematic in environments where delicate circuits and microchips are handled, such as in computer assembly, semiconductor manufacturing, and electronic repair shops.
The Role of Anti Static Straps
An Anti Static Strap is a crucial piece of equipment in ESD protection. It is worn around the wrist and connected to a grounded surface, allowing any static charge built up on the wearer’s body to be safely dissipated. This prevents the static charge from jumping to sensitive electronic components, thereby protecting them from damage.
Types of Anti Static Straps
There are several types of Anti Static Straps available, each designed for specific applications and environments. The most common types include:

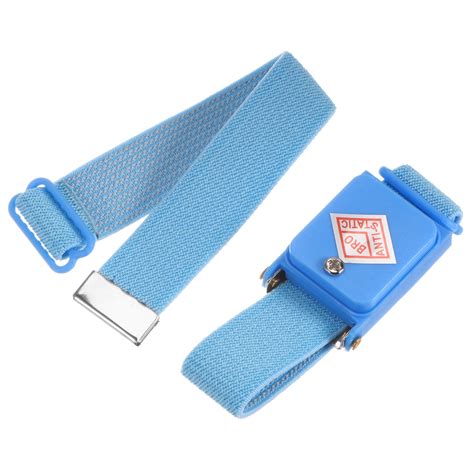

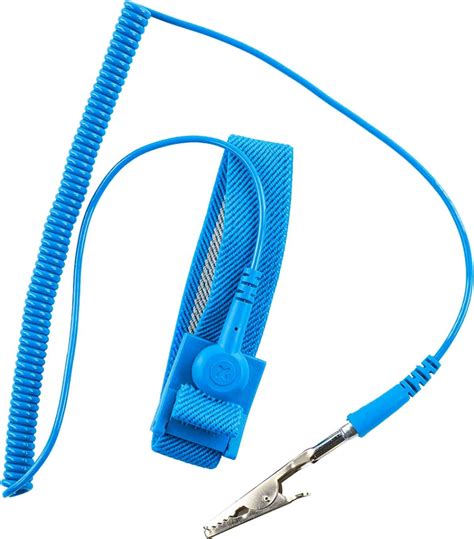

- Wrist Straps: These are the most commonly used Anti Static Straps. They are worn around the wrist and connected to a grounded surface via a cord.

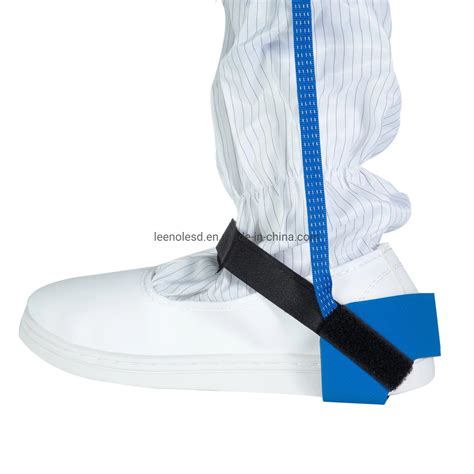

- Heel Straps: These are worn on the heel of the foot and are connected to a grounded floor mat. They are often used in conjunction with wrist straps for added protection.
- Floor Mats: These are large mats placed on the floor and connected to a ground. They provide a static-free work surface and are often used in combination with wrist and heel straps.
How to Use an Anti Static Strap
Using an Anti Static Strap correctly is essential for effective ESD protection. Here are the steps to follow:
- Ensure that the workstation is properly grounded. This can be done by connecting the ground cord of the Anti Static Strap to a known good ground point.

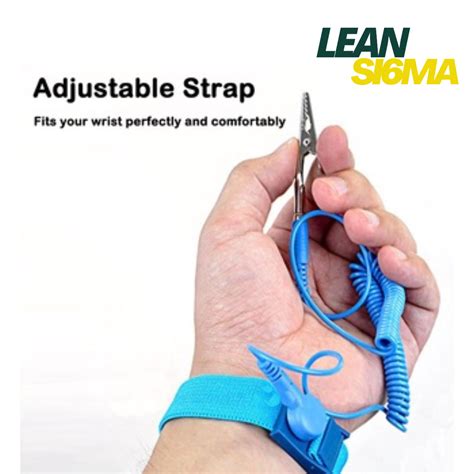

- Wear the Anti Static Strap around your wrist. Make sure it is snug but not too tight, as it should be comfortable to wear for extended periods.
- Connect the cord of the Anti Static Strap to the grounded surface. This can be a dedicated ground point or a grounded workbench.
- Verify that the Anti Static Strap is functioning correctly by using a static meter. This device measures the resistance of the strap and ensures it is within the acceptable range.
🔍 Note: Always ensure that the Anti Static Strap is in good condition and free from any damage before use. Regularly inspect the strap and cord for any signs of wear and tear.
Best Practices for Using Anti Static Straps
To maximize the effectiveness of Anti Static Straps, it is important to follow best practices. Here are some key guidelines:
- Always wear the Anti Static Strap when handling sensitive electronic components. This includes during assembly, repair, and testing.
- Ensure that the workstation is properly grounded. This can be done by connecting the ground cord of the Anti Static Strap to a known good ground point.
- Use a static meter to regularly check the resistance of the Anti Static Strap. This ensures that it is functioning correctly and providing adequate protection.
- Avoid using the Anti Static Strap in environments with high humidity or moisture, as this can affect its performance.
- Store the Anti Static Strap in a clean, dry place when not in use. This helps to prolong its lifespan and maintain its effectiveness.
Maintaining a Static-Free Environment
In addition to using Anti Static Straps, there are several other measures that can be taken to maintain a static-free environment. These include:
- Using anti-static mats and floor coverings to provide a static-free work surface.
- Wearing anti-static clothing, such as smocks and gloves, to minimize the risk of static buildup.
- Using ionizers to neutralize static charges in the air. These devices emit positive and negative ions that cancel out static charges.
- Controlling humidity levels in the work environment. High humidity can help to dissipate static charges, while low humidity can increase the risk of static buildup.
Common Mistakes to Avoid
While Anti Static Straps are effective tools for ESD protection, there are some common mistakes that can compromise their effectiveness. Here are some pitfalls to avoid:
- Not properly grounding the workstation. This can result in the Anti Static Strap not functioning correctly and failing to dissipate static charges.
- Wearing the Anti Static Strap too loosely. This can cause the strap to slip off, leaving the wearer unprotected.
- Using a damaged or worn-out Anti Static Strap. This can reduce its effectiveness and increase the risk of ESD damage.
- Not regularly checking the resistance of the Anti Static Strap. This can result in the strap not providing adequate protection.
Training and Awareness
Proper training and awareness are crucial for the effective use of Anti Static Straps. All personnel handling sensitive electronic components should be trained on the importance of ESD protection and how to use Anti Static Straps correctly. Regular refresher courses and updates on best practices can help to reinforce this knowledge and ensure that ESD protection measures are consistently followed.
Conclusion
Electrostatic discharge is a significant risk in industries that handle sensitive electronic components. The Anti Static Strap is a vital tool in mitigating this risk, providing a safe and effective way to dissipate static charges. By understanding the types of Anti Static Straps available, how to use them correctly, and following best practices, you can create a static-free environment that protects your electronic components from damage. Regular training and awareness programs can further enhance the effectiveness of ESD protection measures, ensuring that your work environment remains safe and efficient.
