In the realm of electronics, having the right tools is crucial for diagnosing and troubleshooting circuits. One of the most essential tools in any electronics enthusiast's or professional's toolkit is the Analog Electronic Multimeter. This versatile device is indispensable for measuring various electrical parameters, making it a staple in both hobbyist and professional settings. Whether you're a beginner or an experienced engineer, understanding how to use an Analog Electronic Multimeter can significantly enhance your ability to work with electronic circuits.
Understanding the Analog Electronic Multimeter

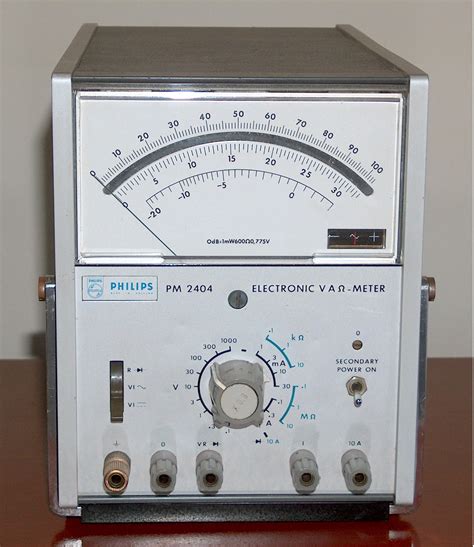

An Analog Electronic Multimeter is a device that combines several measurement functions into one unit. Unlike digital multimeters, which display readings numerically, analog multimeters use a needle and a scale to indicate measurements. This analog display provides a continuous reading, making it easier to observe changes in real-time. The primary functions of an Analog Electronic Multimeter include measuring voltage, current, and resistance.

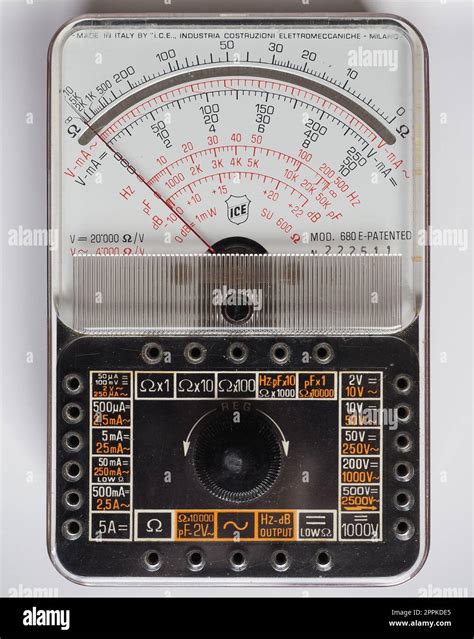

Key Components of an Analog Electronic Multimeter
To effectively use an Analog Electronic Multimeter, it's important to understand its key components:

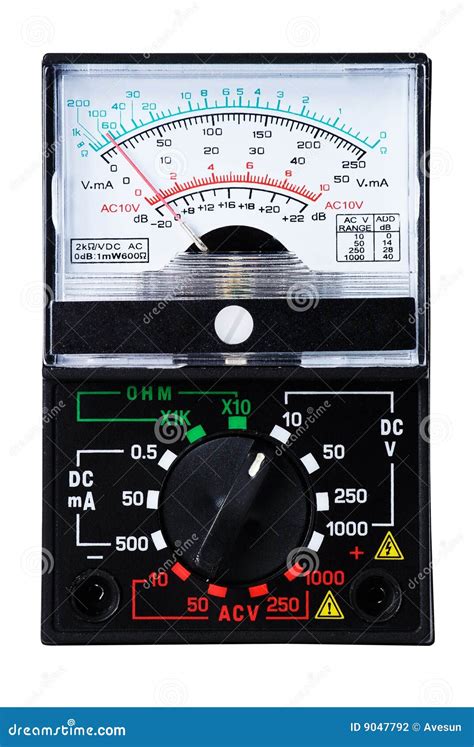

- Display: The analog display consists of a needle that moves across a scale to indicate the measurement. The scale is marked with units for voltage, current, and resistance.

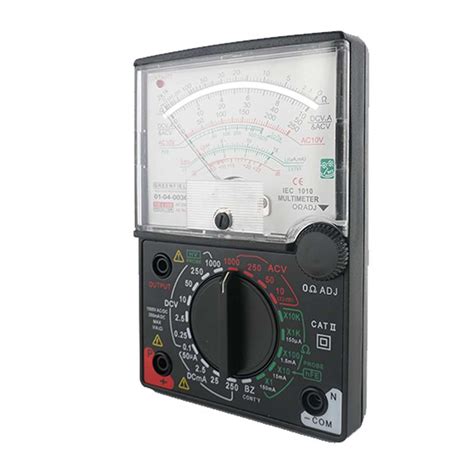

- Selector Switch: This switch allows you to select the type of measurement you want to perform (voltage, current, or resistance) and the range of the measurement.
- Probes: The probes are used to make contact with the circuit components. They are typically color-coded, with the black probe being the common or ground probe and the red probe being the positive or live probe.
- Fuse: Some analog multimeters have a fuse to protect the device from overcurrent situations.
How to Use an Analog Electronic Multimeter
Using an Analog Electronic Multimeter involves several steps. Here’s a detailed guide to help you get started:
Safety First
Before you begin, ensure that you follow these safety precautions:
- Always turn off the power to the circuit you are testing.
- Use insulated probes to avoid accidental shocks.
- Never measure voltage or current on a live circuit without proper training and equipment.
Selecting the Measurement Function
Turn the selector switch to the desired measurement function. For example, to measure voltage, turn the switch to the 'V' position. The scale will indicate the range of voltage you can measure. Common ranges include 2V, 10V, 50V, 250V, and 500V.
Connecting the Probes
Insert the probes into the correct sockets on the multimeter. For voltage and resistance measurements, use the black probe in the common socket and the red probe in the voltage/current socket. For current measurements, use the red probe in the current socket, which is often marked with an 'A' or 'mA'.
Making the Measurement
Connect the probes to the circuit components you want to measure. For voltage, touch the probes to the points in the circuit where you want to measure the voltage drop. For current, break the circuit and insert the probes in series with the component. For resistance, disconnect the component from the circuit and touch the probes to the component's terminals.
Reading the Display

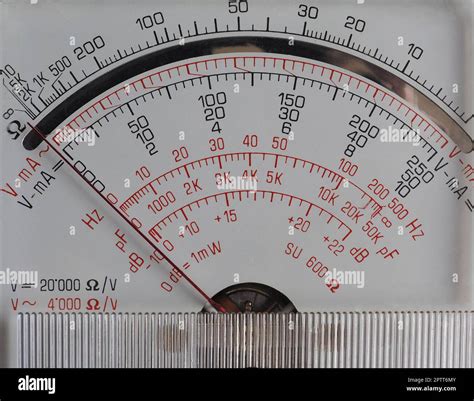

Observe the needle on the analog display. The position of the needle on the scale will indicate the measurement. Make sure the needle is within the range you selected. If the needle goes off-scale, you may need to switch to a higher range.
🔍 Note: Always start with the highest range and gradually decrease to the appropriate range to avoid damaging the multimeter.
Measuring Voltage with an Analog Electronic Multimeter
Measuring voltage is one of the most common tasks performed with an Analog Electronic Multimeter. Here’s a step-by-step guide:
- Turn the selector switch to the voltage position (V).
- Select the appropriate voltage range. For example, if you are measuring a 9V battery, select the 250V range.
- Connect the black probe to the negative terminal of the battery and the red probe to the positive terminal.
- Observe the needle on the display. The position of the needle will indicate the voltage.
If the needle goes off-scale, switch to a higher range and repeat the measurement.
Measuring Current with an Analog Electronic Multimeter
Measuring current requires breaking the circuit and inserting the multimeter in series with the component. Here’s how to do it:
- Turn the selector switch to the current position (A or mA).
- Select the appropriate current range. For example, if you are measuring a current of 100mA, select the 250mA range.
- Break the circuit and insert the red probe in series with the component. The black probe should be connected to the common socket.
- Observe the needle on the display. The position of the needle will indicate the current.
If the needle goes off-scale, switch to a higher range and repeat the measurement.
Measuring Resistance with an Analog Electronic Multimeter
Measuring resistance involves disconnecting the component from the circuit and using the multimeter to measure the resistance between its terminals. Here’s how:
- Turn the selector switch to the resistance position (Ω).
- Select the appropriate resistance range. For example, if you are measuring a resistor of 1kΩ, select the 2kΩ range.
- Disconnect the component from the circuit and touch the probes to the component's terminals.
- Observe the needle on the display. The position of the needle will indicate the resistance.
If the needle goes off-scale, switch to a higher range and repeat the measurement.
Troubleshooting Common Issues
Even with proper use, you may encounter issues while using an Analog Electronic Multimeter. Here are some common problems and their solutions:
- Needle Not Moving: Ensure that the probes are properly connected and that the circuit is live. Check the battery in the multimeter.
- Needle Going Off-Scale: Switch to a higher range and repeat the measurement. Ensure that the probes are correctly connected.
- Inaccurate Readings: Calibrate the multimeter according to the manufacturer's instructions. Ensure that the probes are in good condition.
Calibrating an Analog Electronic Multimeter
Calibration is essential to ensure accurate readings. Here’s a basic guide to calibrating your Analog Electronic Multimeter:
- Turn the selector switch to the resistance position (Ω) and select the appropriate range.
- Short the probes together and adjust the zero-adjustment screw until the needle points to zero.
- Turn the selector switch to the voltage position (V) and select the appropriate range.
- Connect a known voltage source (e.g., a 9V battery) to the probes and adjust the calibration screw until the needle points to the correct voltage.
Repeat the calibration process for current measurements using a known current source.
🔧 Note: Always refer to the manufacturer's instructions for specific calibration procedures.
Applications of an Analog Electronic Multimeter
An Analog Electronic Multimeter has a wide range of applications in various fields. Some of the most common uses include:
- Electronics Repair: Diagnosing and repairing electronic devices such as radios, televisions, and computers.
- Automotive Diagnostics: Troubleshooting electrical issues in vehicles, such as battery problems and wiring faults.
- Home Wiring: Checking electrical outlets, switches, and wiring for proper functioning.
- Educational Purposes: Teaching students about electrical principles and circuit analysis.

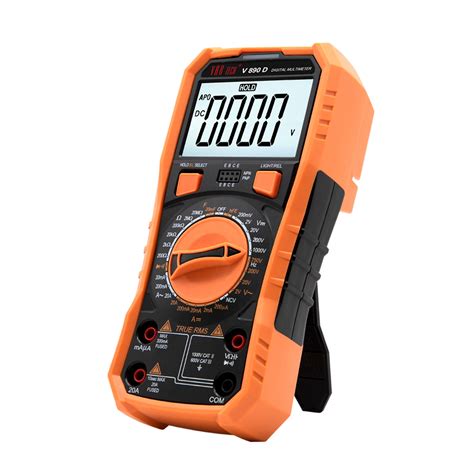

Comparing Analog and Digital Multimeters
While analog multimeters have their advantages, digital multimeters are also widely used. Here’s a comparison to help you understand the differences:
| Feature | Analog Multimeter | Digital Multimeter |
|---|---|---|
| Display | Needle and scale | Numerical display |
| Accuracy | Less precise | More precise |
| Ease of Use | Requires interpretation of the needle position | Easy to read numerical values |
| Cost | Generally less expensive | Generally more expensive |
| Durability | More robust and durable | More susceptible to damage |
Both types of multimeters have their strengths and weaknesses, and the choice between them depends on your specific needs and preferences.
In conclusion, the Analog Electronic Multimeter is a versatile and essential tool for anyone working with electronic circuits. Its ability to measure voltage, current, and resistance makes it indispensable for diagnosing and troubleshooting electrical issues. By understanding how to use an Analog Electronic Multimeter effectively, you can enhance your skills and confidence in working with electronics. Whether you’re a hobbyist or a professional, this tool will serve you well in your electronic endeavors.
