Amps Vs Volts

Understanding the fundamentals of electrical systems is crucial for anyone working with electronics, whether you're a hobbyist, a professional engineer, or simply curious about how things work. Two of the most fundamental concepts in this field are Amps Vs Volts. These terms are often used interchangeably, but they refer to different aspects of electrical power. This post will delve into the differences between amps and volts, their roles in electrical systems, and how they interact to power our devices.

Table of Contents

What are Amps?

Amps, short for amperes, measure the flow of electrical current in a circuit. Think of it like the flow of water through a pipe. The more water that flows through the pipe, the higher the current. In electrical terms, amps indicate how much electrical charge is moving through a conductor per second. This is a critical measurement because it determines the amount of power that can be delivered to a device.

What are Volts?

Volts, on the other hand, measure the electrical potential difference between two points in a circuit. This is often referred to as voltage. Voltage is the force that pushes the electrical current through the circuit. It’s like the pressure in a water pipe that drives the water forward. The higher the voltage, the more force is available to push the current through the circuit.

Amps Vs Volts: The Key Differences

While both amps and volts are essential for understanding electrical systems, they serve different purposes and have distinct characteristics:

Measurement of Flow vs. Force: Amps measure the flow of electrical current, while volts measure the force or potential difference that drives the current.
Units of Measurement: Amps are measured in amperes (A), while volts are measured in volts (V).
Impact on Devices: The voltage determines the power that a device can handle, while the current determines how much power the device can draw.

How Amps and Volts Interact

To understand how amps and volts interact, it’s helpful to look at Ohm’s Law, which is a fundamental principle in electronics. Ohm’s Law states that the current (I) flowing through a conductor is directly proportional to the voltage (V) across it and inversely proportional to the resistance ® of the conductor. This relationship is expressed as:

V = I * R

Where:

V is the voltage in volts
I is the current in amps
R is the resistance in ohms

This formula shows that if you increase the voltage, the current will increase proportionally, assuming the resistance remains constant. Conversely, if you increase the resistance, the current will decrease.

Practical Applications of Amps Vs Volts

Understanding the difference between amps and volts is crucial for various practical applications:

Battery Selection: When choosing a battery for a device, you need to consider both the voltage and the current it can supply. For example, a 9V battery with a high current rating is suitable for devices that require a lot of power, while a 1.5V battery with a lower current rating might be sufficient for low-power devices.
Electrical Safety: Knowing the voltage and current ratings of your electrical components is essential for safety. High voltages can be dangerous, and high currents can cause overheating and fires. Always ensure that your devices are rated for the voltage and current they will be exposed to.
Power Supply Design: When designing a power supply, you need to consider both the voltage and current requirements of the devices you are powering. For example, a power supply for a computer might need to provide 12V at 10A to power the CPU and other components.

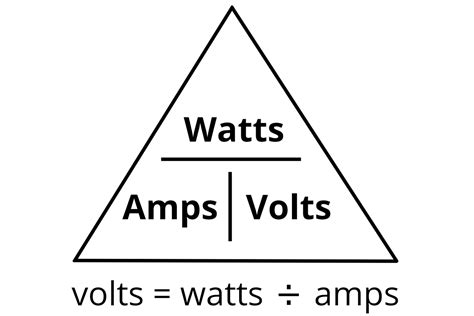

Calculating Power

Power in an electrical system is measured in watts (W) and is calculated using the formula:

P = V * I

Where:

P is the power in watts
V is the voltage in volts
I is the current in amps

This formula shows that power is directly proportional to both voltage and current. If you increase either the voltage or the current, the power will increase proportionally.

Example Calculations

Let’s look at a few example calculations to illustrate the concepts of amps and volts:

Suppose you have a device that requires 12V and 2A to operate. To find the power requirement, you would use the formula:

P = V * I

P = 12V * 2A = 24W

So, the device requires 24 watts of power.

Now, suppose you have a resistor with a resistance of 10 ohms and you apply a voltage of 10V across it. To find the current flowing through the resistor, you would use Ohm’s Law:

I = V / R

I = 10V / 10Ω = 1A

So, the current flowing through the resistor is 1 amp.

Amps Vs Volts in Different Electrical Systems

Different electrical systems have different requirements for amps and volts. Here are a few examples:

Household Electrical Systems: In most households, the electrical system operates at 120V or 240V, depending on the region. The current can vary widely depending on the devices being used, but it is typically limited to prevent overheating and fires.
Automotive Electrical Systems: Cars typically use a 12V electrical system, with currents ranging from a few amps for small devices like radios to hundreds of amps for starting the engine.
Battery-Powered Devices: Battery-powered devices can operate at a wide range of voltages and currents, depending on the type of battery and the device’s power requirements. For example, a smartphone might use a 3.7V lithium-ion battery with a current rating of a few amps, while an electric vehicle might use a 400V battery pack with a current rating of hundreds of amps.

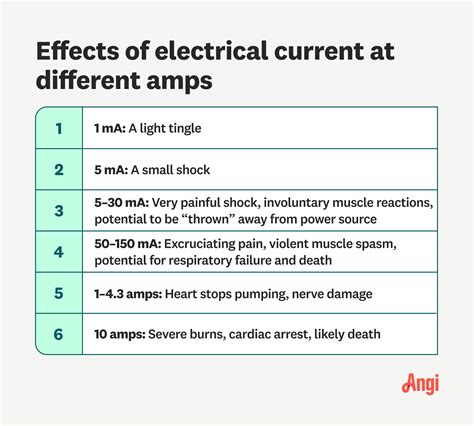

Safety Considerations

When working with electrical systems, it’s essential to consider safety. High voltages and currents can be dangerous, and improper handling can lead to electrical shocks, fires, and other hazards. Here are some safety tips to keep in mind:

Always Turn Off Power: Before working on any electrical system, always turn off the power and disconnect the device from the power source.
Use Proper Tools: Use insulated tools and wear protective gear, such as gloves and safety glasses, when working with electrical components.
Follow Manufacturer Guidelines: Always follow the manufacturer’s guidelines for installing and using electrical components.
Avoid Overloading Circuits: Be aware of the current and voltage ratings of your electrical components and avoid overloading circuits to prevent overheating and fires.

🔧 Note: Always double-check your calculations and measurements to ensure accuracy and safety.

Common Misconceptions

There are several common misconceptions about amps and volts that can lead to confusion and mistakes. Here are a few to be aware of:

Amps and Volts are Interchangeable: Amps and volts are not interchangeable. They measure different aspects of electrical power and are used in different contexts.
Higher Voltage Means More Power: While higher voltage can mean more power, it’s not always the case. The power depends on both the voltage and the current. A device with a high voltage but low current might not deliver as much power as a device with a lower voltage but higher current.
Amps and Volts are Always Constant: Amps and volts can vary depending on the load and the electrical system. For example, the current drawn by a device can change depending on its power requirements, and the voltage can drop if the system is under heavy load.

💡 Note: Always verify the specifications of your electrical components to ensure they are suitable for your application.

Conclusion

Understanding the difference between amps and volts is fundamental to working with electrical systems. Amps measure the flow of electrical current, while volts measure the force that drives the current. Both are essential for calculating power and ensuring the safe and efficient operation of electrical devices. By grasping these concepts and applying them correctly, you can design, build, and maintain electrical systems with confidence. Whether you’re working on a simple circuit or a complex power supply, knowing the basics of amps and volts will serve you well in your electrical endeavors.
