Understanding the Amps Measurement Unit is crucial for anyone working with electrical systems. Whether you're an electrician, an engineer, or a hobbyist, knowing how to measure and interpret electrical current in amperes (amps) is essential for safety and efficiency. This post will delve into the fundamentals of the Amps Measurement Unit, its importance, and how to accurately measure it.
What is the Amps Measurement Unit?
The Amps Measurement Unit, or ampere, is the standard unit of electrical current in the International System of Units (SI). It measures the flow of electric charge through a conductor. One ampere is defined as the constant current that, if maintained in two straight parallel conductors of infinite length and negligible circular cross-section, placed one meter apart in a vacuum, would produce a force between these conductors equal to 2 × 10−7 newtons per meter of length.
Importance of Measuring Amps
Measuring electrical current in amps is vital for several reasons:
- Safety: Overloading circuits can cause fires and electrical shocks. Accurate measurement ensures that circuits are not overloaded.
- Efficiency: Knowing the current flow helps in optimizing the performance of electrical devices and systems.
- Troubleshooting: Measuring amps can help identify faults in electrical systems, such as short circuits or faulty components.
Tools for Measuring Amps
Several tools are available for measuring electrical current in amps. The most common ones include:
Multimeters

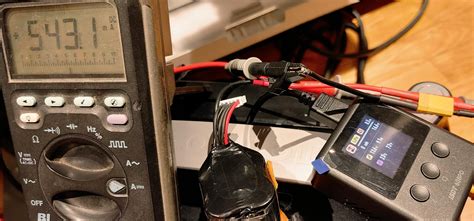

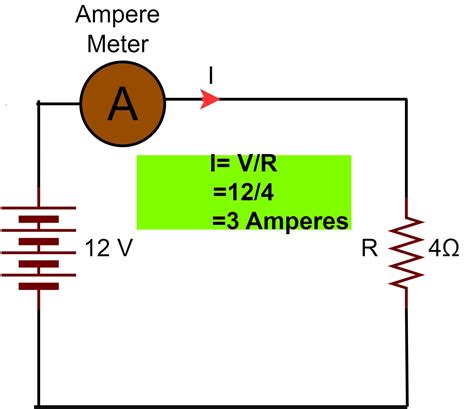

A multimeter is a versatile tool that can measure voltage, current, and resistance. To measure amps, you need to set the multimeter to the current (amps) mode and connect it in series with the circuit. Multimeters come in both analog and digital varieties, with digital multimeters being more precise and easier to read.
Clamp Meters
Clamp meters are specialized tools designed to measure electrical current without breaking the circuit. They use a clamp that wraps around the conductor to measure the current flowing through it. Clamp meters are particularly useful for measuring high currents and in situations where it’s difficult to access the circuit.
Current Transformers
Current transformers (CTs) are used to measure high currents by stepping down the current to a level that can be safely measured by a multimeter or other measuring device. CTs are commonly used in industrial settings where high currents are involved.
How to Measure Amps Using a Multimeter
Measuring amps with a multimeter involves several steps. Here’s a detailed guide:
Step 1: Prepare the Multimeter
Turn on the multimeter and set it to the current (amps) mode. Choose the appropriate range based on the expected current. For example, if you expect the current to be between 0 and 10 amps, set the multimeter to the 10A range.
Step 2: Connect the Multimeter
Disconnect the circuit you want to measure. Connect the multimeter in series with the circuit by placing the red probe in the current (amps) socket and the black probe in the common socket. Then, reconnect the circuit through the multimeter probes.
Step 3: Read the Measurement
Turn on the circuit and observe the reading on the multimeter. Ensure that the multimeter is correctly set to the appropriate range to avoid damaging the device.
🔧 Note: Always ensure that the multimeter is set to the correct range before taking measurements to avoid damaging the device or causing inaccurate readings.
How to Measure Amps Using a Clamp Meter
Clamp meters offer a non-invasive way to measure electrical current. Here’s how to use one:
Step 1: Prepare the Clamp Meter
Turn on the clamp meter and set it to the current (amps) mode. Choose the appropriate range based on the expected current.
Step 2: Clamp the Conductor
Open the clamp and wrap it around the conductor you want to measure. Ensure that the clamp is fully closed around the conductor.
Step 3> Read the Measurement
Observe the reading on the clamp meter. The display will show the current flowing through the conductor.
🔧 Note: Ensure that the clamp is fully closed around the conductor to get an accurate reading. Any gaps can lead to inaccurate measurements.
Common Mistakes to Avoid
When measuring amps, it’s essential to avoid common mistakes that can lead to inaccurate readings or damage to your equipment:
- Incorrect Range Setting: Always set the multimeter or clamp meter to the appropriate range before taking measurements.
- Improper Connections: Ensure that the probes or clamps are correctly connected to the circuit to avoid short circuits or inaccurate readings.
- Ignoring Safety Precautions: Always follow safety guidelines when working with electrical systems to avoid shocks or fires.
Applications of Amps Measurement
The Amps Measurement Unit is used in various applications across different industries. Some of the key areas include:
Electrical Engineering
In electrical engineering, measuring amps is crucial for designing and maintaining electrical systems. Engineers use amps measurements to ensure that circuits are properly sized and to troubleshoot issues.
Automotive Industry
In the automotive industry, amps measurements are used to diagnose electrical problems in vehicles. Technicians use multimeters and clamp meters to check the current flow in various electrical components.
Renewable Energy
In renewable energy systems, such as solar and wind power, measuring amps is essential for monitoring the performance of the system. Accurate measurements help in optimizing the energy output and ensuring the system’s efficiency.
Industrial Settings
In industrial settings, amps measurements are used to monitor the performance of machinery and equipment. High currents can indicate potential issues, such as motor failures or electrical faults.
Conclusion
Understanding and accurately measuring the Amps Measurement Unit is fundamental for anyone working with electrical systems. Whether you’re using a multimeter, clamp meter, or current transformer, knowing how to measure amps ensures safety, efficiency, and proper troubleshooting. By following the guidelines and avoiding common mistakes, you can effectively measure electrical current and maintain the integrity of your electrical systems.
