Understanding the relationship between Amperes (A) and kilovolt-amperes (kVA) is crucial for anyone working with electrical systems. This relationship is fundamental in electrical engineering, power distribution, and various industrial applications. By grasping the concepts of Amperes and kVA, you can better design, maintain, and troubleshoot electrical systems. This post will delve into the definitions, calculations, and practical applications of Amperes and kVA, providing a comprehensive guide for both beginners and experienced professionals.

Table of Contents

Understanding Amperes (A)

Amperes, often abbreviated as “A,” is the unit of measurement for electrical current. It quantifies the flow of electric charge through a conductor. The term “ampere” is named after André-Marie Ampère, a French mathematician and physicist who made significant contributions to the field of electromagnetism.

In practical terms, Amperes measure the rate at which electrons flow through a circuit. For example, a 10-ampere current means that 10 coulombs of charge pass through a point in the circuit every second. Understanding Amperes is essential for selecting the appropriate wire gauge, fuses, and circuit breakers to ensure safety and efficiency in electrical systems.

Understanding Kilovolt-Amperes (kVA)

Kilovolt-amperes (kVA) is a unit used to measure apparent power in an electrical system. Apparent power is the product of the voltage (V) and current (I) in a circuit, expressed as:

kVA = (V * I) / 1000

This unit is particularly important in alternating current (AC) systems, where the relationship between voltage and current is not always straightforward due to the presence of reactive power. kVA is a crucial metric for sizing transformers, generators, and other electrical equipment.

The Relationship Between Amperes and kVA

The relationship between Amperes and kVA is straightforward when dealing with single-phase systems. For a single-phase system, the formula to convert Amperes to kVA is:

kVA = (V * I) / 1000

Where:

V is the voltage in volts (V)
I is the current in Amperes (A)

For example, if you have a system with a voltage of 240 volts and a current of 10 Amperes, the kVA can be calculated as follows:

kVA = (240 V * 10 A) / 1000 = 2.4 kVA

Calculating kVA for Three-Phase Systems

In three-phase systems, the calculation of kVA is slightly more complex due to the presence of three separate phases. The formula for calculating kVA in a three-phase system depends on whether the system is wye (Y) or delta (Δ) connected.

For a wye-connected system, the formula is:

kVA = (V * I * √3) / 1000

For a delta-connected system, the formula is:

kVA = (V * I * 3) / 1000

Where:

V is the line-to-line voltage in volts (V)
I is the line current in Amperes (A)

For example, in a wye-connected system with a line-to-line voltage of 480 volts and a line current of 20 Amperes, the kVA can be calculated as follows:

kVA = (480 V * 20 A * √3) / 1000 ≈ 16.57 kVA

Practical Applications of Amperes and kVA

The concepts of Amperes and kVA are applied in various practical scenarios, including:

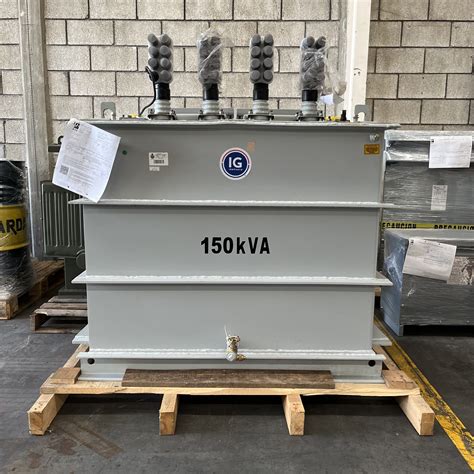

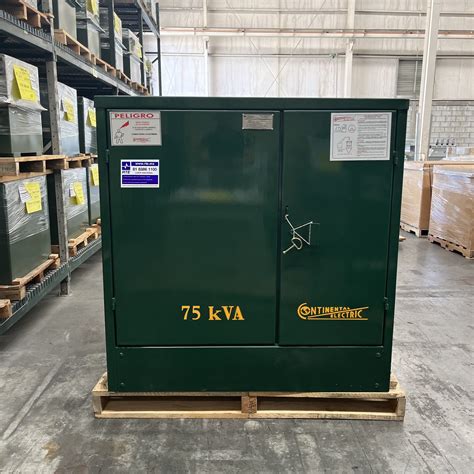

Transformer Sizing: Transformers are rated in kVA to indicate their capacity to handle apparent power. Knowing the kVA rating helps in selecting the appropriate transformer for a given load.
Generator Selection: Generators are also rated in kVA, and understanding this rating is crucial for ensuring that the generator can meet the power demands of the connected load.
Circuit Protection: Fuses and circuit breakers are sized based on the current (Amperes) they can safely interrupt. Proper sizing ensures that the circuit protection devices can handle the expected current without failing.
Power Distribution: In power distribution systems, understanding Amperes and kVA is essential for designing efficient and safe systems. This includes selecting the appropriate wire gauges, transformers, and other components.

Important Considerations

When working with Amperes and kVA, several important considerations must be kept in mind:

Power Factor: The power factor is the ratio of real power (kW) to apparent power (kVA). A lower power factor indicates that a significant portion of the power is reactive, which can lead to inefficiencies and higher costs.
Voltage Drop: Voltage drop occurs when current flows through a conductor, causing a loss of voltage. Proper wire sizing based on Amperes is crucial to minimize voltage drop and ensure efficient power delivery.
Safety: Overloading circuits with currents exceeding their rated Amperes can lead to overheating, fires, and other hazards. Always ensure that electrical systems are designed and operated within safe limits.

🔍 Note: Always refer to local electrical codes and standards when designing or modifying electrical systems to ensure compliance and safety.

Example Calculations

Let’s go through a few example calculations to illustrate the concepts of Amperes and kVA.

Single-Phase System Example

Consider a single-phase system with a voltage of 120 volts and a current of 15 Amperes. The kVA can be calculated as follows:

kVA = (120 V * 15 A) / 1000 = 1.8 kVA

Three-Phase Wye-Connected System Example

For a three-phase wye-connected system with a line-to-line voltage of 208 volts and a line current of 30 Amperes, the kVA can be calculated as follows:

kVA = (208 V * 30 A * √3) / 1000 ≈ 10.91 kVA

Three-Phase Delta-Connected System Example

For a three-phase delta-connected system with a line-to-line voltage of 480 volts and a line current of 25 Amperes, the kVA can be calculated as follows:

kVA = (480 V * 25 A * 3) / 1000 = 36 kVA

Conclusion

Understanding the relationship between Amperes and kVA is essential for anyone involved in electrical engineering and power distribution. By grasping the concepts of electrical current and apparent power, you can design, maintain, and troubleshoot electrical systems more effectively. Whether you are working with single-phase or three-phase systems, knowing how to calculate and apply Amperes and kVA ensures that your electrical systems are safe, efficient, and reliable. Always consider factors such as power factor, voltage drop, and safety when working with electrical systems to ensure optimal performance and compliance with standards.
