Understanding the intricacies of electrical wiring is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. One of the most important aspects of electrical wiring is selecting the correct wire gauge. The Amp Wire Gauge Chart is an essential tool that helps determine the appropriate wire size based on the ampere rating of the circuit. This chart ensures that your electrical system is safe, efficient, and compliant with electrical codes.
What is Wire Gauge?
Wire gauge refers to the diameter of the wire. In the United States, wire gauge is typically measured using the American Wire Gauge (AWG) system. The AWG system uses a standardized numbering scheme where smaller numbers indicate larger wire diameters. For example, a 10 AWG wire is thicker than a 12 AWG wire. The thickness of the wire is crucial because it determines the wire’s current-carrying capacity and resistance.

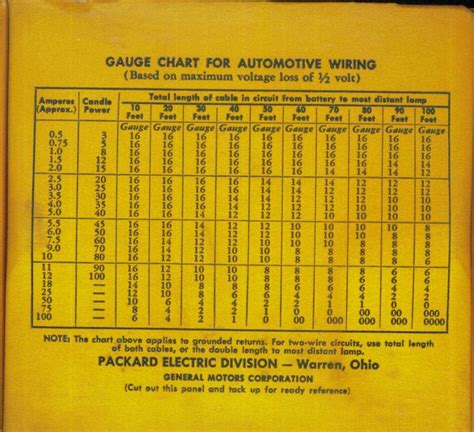

Understanding the Amp Wire Gauge Chart
The Amp Wire Gauge Chart is a reference tool that matches the ampere rating of a circuit to the appropriate wire gauge. This chart is essential for ensuring that the wire can safely handle the current without overheating or causing a fire. The chart takes into account factors such as the type of insulation, the length of the wire run, and the environmental conditions.

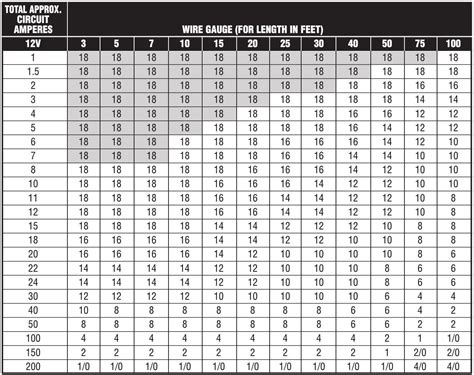

How to Use the Amp Wire Gauge Chart
Using the Amp Wire Gauge Chart is straightforward. Here are the steps to follow:
- Determine the ampere rating of the circuit. This information is usually found on the circuit breaker or fuse.
- Identify the type of insulation used on the wire. Common types include THHN, THWN, and XHHW.
- Consult the Amp Wire Gauge Chart to find the appropriate wire gauge for your ampere rating and insulation type.
- Ensure that the wire gauge you select is suitable for the length of the wire run and the environmental conditions.
For example, if you have a 20-amp circuit with THHN insulation, the Amp Wire Gauge Chart might recommend a 12 AWG wire. This means that a 12 AWG wire is capable of safely carrying 20 amps of current without overheating.
Important Factors to Consider
When selecting a wire gauge, there are several important factors to consider:
- Voltage Drop: Long wire runs can cause a voltage drop, which reduces the voltage at the load. To minimize voltage drop, use a larger wire gauge.
- Environmental Conditions: Extreme temperatures, moisture, and other environmental factors can affect the performance of the wire. Choose a wire gauge and insulation type that is suitable for the specific conditions.
- Conductor Material: Copper is the most commonly used conductor material due to its excellent conductivity. However, aluminum is sometimes used as a cost-effective alternative. Aluminum wires require a larger gauge to carry the same current as copper wires.
- Safety Margins: It’s always a good idea to use a wire gauge that is slightly larger than the minimum required. This provides a safety margin and helps ensure that the wire can handle unexpected current surges.
Common Wire Gauges and Their Applications

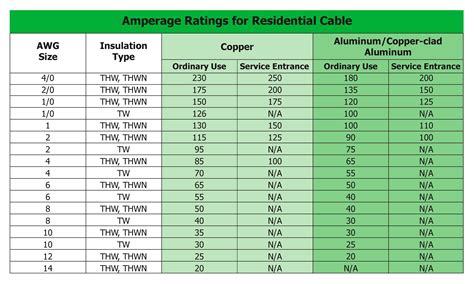

Here is a table of common wire gauges and their typical applications:
| Wire Gauge (AWG) | Current-Carrying Capacity (Amps) | Typical Applications |
|---|---|---|
| 14 | 15 | Lighting circuits, small appliances |
| 12 | 20 | Kitchen appliances, power tools |
| 10 | 30 | Water heaters, electric ranges |
| 8 | 40 | Electric dryers, air conditioners |
| 6 | 55 | Large appliances, subpanels |
| 4 | 70 | Electric furnaces, large motors |
🔧 Note: The current-carrying capacity listed in the table is for reference only. Always consult the Amp Wire Gauge Chart for the most accurate information based on your specific conditions.
Safety Considerations
Safety is paramount when working with electrical wiring. Here are some important safety considerations to keep in mind:
- Always turn off the power at the circuit breaker before working on any electrical wiring.
- Use insulated tools and wear appropriate personal protective equipment (PPE), such as gloves and safety glasses.
- Ensure that all connections are secure and properly insulated to prevent short circuits.
- Avoid overloading circuits by using the correct wire gauge and ampere rating.
- Regularly inspect your electrical system for signs of wear or damage, such as frayed wires or loose connections.
Common Mistakes to Avoid
When selecting and installing electrical wiring, it’s important to avoid common mistakes that can lead to safety hazards. Here are some mistakes to avoid:
- Using the wrong wire gauge for the ampere rating of the circuit.
- Ignoring voltage drop in long wire runs.
- Not considering environmental conditions when selecting wire insulation.
- Overloading circuits by using too many devices on a single circuit.
- Failing to properly secure and insulate connections.
🛑 Note: Always follow local electrical codes and regulations when installing or modifying electrical wiring. Consulting with a licensed electrician is recommended for complex or high-risk projects.
Conclusion
Selecting the correct wire gauge is a critical aspect of electrical wiring that ensures safety, efficiency, and compliance with electrical codes. The Amp Wire Gauge Chart is an invaluable tool that helps determine the appropriate wire size based on the ampere rating of the circuit. By understanding the factors that influence wire gauge selection and following safety guidelines, you can ensure that your electrical system is reliable and safe. Always consult the Amp Wire Gauge Chart and follow best practices to avoid common mistakes and potential hazards.
