Amp In Kva

Understanding the relationship between amperes (amps) and kilovolt-amperes (kVA) is crucial for anyone working with electrical systems. This relationship is fundamental in electrical engineering, power distribution, and various industrial applications. By grasping the concept of amp in kVA, you can better design, analyze, and troubleshoot electrical circuits and systems.

Table of Contents

What is Ampere (Amp)?

An ampere, often shortened to amp, is the base unit of electric current in the International System of Units (SI). It measures the flow of electric charge through a conductor. One ampere is defined as the current that flows with electric charge of one coulomb per second. In simpler terms, it’s the amount of electricity flowing through a wire.

What is Kilovolt-Ampere (kVA)?

Kilovolt-ampere (kVA) is a unit of apparent power in an electrical system. It is used to measure the total power in an AC circuit, which includes both the real power (measured in kilowatts, kW) and the reactive power (measured in kilovolt-amperes reactive, kVAR). The apparent power is the product of the voltage and the current in the circuit.

Understanding the Relationship Between Amp and kVA

The relationship between amps and kVA is straightforward but essential to understand. The formula to convert amps to kVA is:

kVA = (V * I) / 1000

Where:

V is the voltage in volts (V)
I is the current in amperes (A)

This formula shows that kVA is directly proportional to both voltage and current. If you increase either the voltage or the current, the kVA will increase proportionally.

Calculating kVA from Amps

To calculate kVA from amps, you need to know the voltage of the system. Here’s a step-by-step guide:

Identify the voltage (V) of the system in volts.
Identify the current (I) in amperes.
Multiply the voltage by the current to get the apparent power in volt-amperes (VA).
Divide the result by 1000 to convert volt-amperes to kilovolt-amperes (kVA).

For example, if you have a system with a voltage of 240 volts and a current of 10 amps, the calculation would be:

kVA = (240 V * 10 A) / 1000 = 2.4 kVA

Importance of Amp in kVA Calculations

Understanding the amp in kVA relationship is vital for several reasons:

Power System Design: Engineers use this relationship to design electrical systems that can handle the required load without overloading.
Equipment Sizing: Knowing the kVA helps in selecting the right transformers, generators, and other electrical equipment.
Efficiency Analysis: By understanding the relationship between amps and kVA, you can analyze the efficiency of your electrical system and identify areas for improvement.
Safety: Proper calculations ensure that the system operates within safe limits, preventing overheating and potential fires.

Real-World Applications of Amp in kVA

The concept of amp in kVA is applied in various real-world scenarios:

Industrial Machinery: Factories use this relationship to ensure that their machinery operates efficiently and safely.
Data Centers: Data centers require precise power management to keep servers running smoothly.
Renewable Energy Systems: Solar and wind farms use kVA calculations to optimize power generation and distribution.
Residential and Commercial Buildings: Electrical contractors use these calculations to design and install safe and efficient electrical systems.

Example Calculations

Let’s go through a few example calculations to solidify the understanding of amp in kVA.

Example 1: Single-Phase System

Consider a single-phase system with a voltage of 120 volts and a current of 20 amps.

kVA = (120 V * 20 A) / 1000 = 2.4 kVA

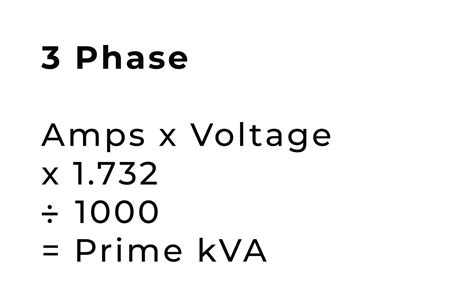

Example 2: Three-Phase System

For a three-phase system, the calculation is slightly different. Assume a voltage of 480 volts and a current of 15 amps per phase.

kVA = (√3 * 480 V * 15 A) / 1000 = 12.99 kVA

Here, √3 is used because it’s a three-phase system.

Example 3: Transformers

Transformers are often rated in kVA. If you have a transformer with a rating of 50 kVA and a voltage of 2400 volts, you can calculate the current it can handle.

I = (kVA * 1000) / V = (50 kVA * 1000) / 2400 V = 20.83 A

Common Mistakes to Avoid

When working with amp in kVA calculations, it’s essential to avoid common mistakes:

Incorrect Voltage or Current Values: Ensure that you use the correct voltage and current values for your calculations.
Ignoring Phase: For three-phase systems, remember to account for the phase factor (√3).
Unit Conversion Errors: Always convert units correctly, especially when dealing with kilovolt-amperes.

🔍 Note: Always double-check your calculations to avoid costly errors in electrical system design and operation.

Conclusion

Understanding the relationship between amps and kVA is fundamental for anyone involved in electrical engineering and power distribution. By mastering the amp in kVA concept, you can design efficient and safe electrical systems, select the right equipment, and ensure optimal performance. Whether you’re working in industrial settings, data centers, or residential buildings, this knowledge is invaluable. Always remember to double-check your calculations and consider the specific requirements of your system to avoid common pitfalls.
