Understanding the intricacies of electrical wiring is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. One of the fundamental concepts in this field is the American Wire Gauge (AWG) system. This system standardizes the sizes of round, solid, nonferrous, electrically conducting wire. By understanding AWG, you can ensure that your electrical projects are safe, efficient, and compliant with industry standards.
What is American Wire Gauge (AWG)?
The American Wire Gauge (AWG) system is a standardized way of denoting wire diameters. It is used throughout the United States and Canada, and it is also recognized internationally. The gauge number indicates the diameter of the wire, with lower numbers corresponding to thicker wires and higher numbers corresponding to thinner wires. This system is essential for selecting the appropriate wire size for various electrical applications.
History and Development of AWG
The AWG system was developed in the early 19th century by Joseph Henry, an American scientist. The system was initially used for telegraph wires and has since evolved to encompass a wide range of electrical applications. Over the years, the AWG system has been refined to ensure consistency and accuracy in wire sizing, making it a reliable standard for electrical work.
Understanding AWG Sizes
The AWG system uses a logarithmic scale, which means that the difference in diameter between consecutive gauge numbers is not constant. For example, a 10 AWG wire has a diameter that is approximately 1.29 times larger than a 12 AWG wire. This logarithmic scale allows for a wide range of wire sizes to be represented accurately.

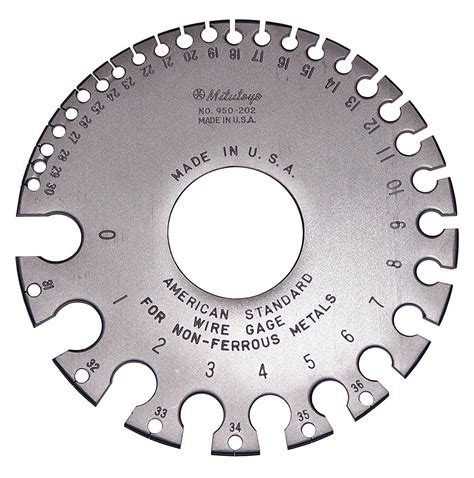

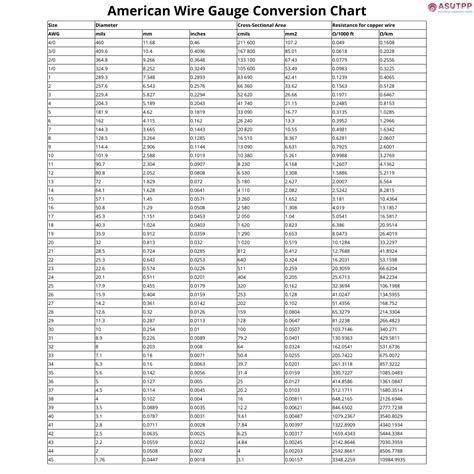

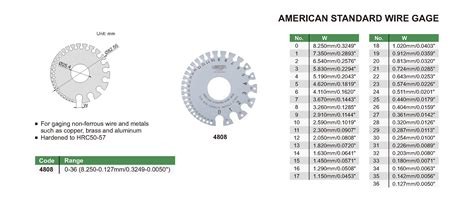

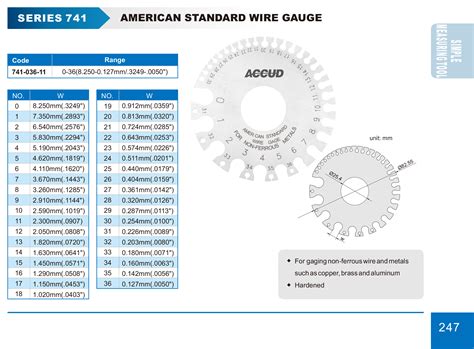

Here is a table that outlines some common AWG sizes and their corresponding diameters and cross-sectional areas:
| AWG Size | Diameter (inches) | Cross-Sectional Area (circular mils) |
|---|---|---|
| 18 | 0.0403 | 823.1 |
| 16 | 0.0508 | 1309.0 |
| 14 | 0.0641 | 2082.0 |
| 12 | 0.0808 | 3310.0 |
| 10 | 0.1019 | 5262.0 |
| 8 | 0.1285 | 8369.0 |
| 6 | 0.1620 | 13300.0 |
| 4 | 0.2043 | 21160.0 |
| 2 | 0.2576 | 33630.0 |
| 1 | 0.2893 | 41100.0 |
| 1/0 | 0.3249 | 51800.0 |
| 2/0 | 0.3648 | 66360.0 |
| 3/0 | 0.4096 | 85030.0 |
| 4/0 | 0.4600 | 107200.0 |
Importance of AWG in Electrical Work
The American Wire Gauge (AWG) system is crucial for several reasons:
- Safety: Using the correct wire size ensures that the wire can handle the current without overheating or causing a fire.
- Efficiency: Proper wire sizing minimizes energy loss and ensures optimal performance of electrical systems.
- Compliance: Adhering to AWG standards ensures that your electrical work meets industry regulations and safety codes.
Selecting the Right AWG Size
Choosing the appropriate AWG size depends on several factors, including the current load, voltage drop, and the length of the wire run. Here are some key considerations:
- Current Load: The wire must be able to handle the maximum current it will carry without overheating. This is determined by the wire’s ampacity, which is the maximum current a wire can safely carry.
- Voltage Drop: Long wire runs can result in a voltage drop, which can affect the performance of electrical devices. Selecting a larger wire size can minimize voltage drop.
- Wire Length: The longer the wire run, the larger the wire size needed to minimize voltage drop and ensure efficient power transmission.
For example, if you are wiring a 20-amp circuit, you would typically use a 12 AWG wire. For a 30-amp circuit, a 10 AWG wire is more appropriate. Always refer to the National Electrical Code (NEC) for specific guidelines on wire sizing.
🔍 Note: Always consult local electrical codes and regulations to ensure compliance and safety.
Common Applications of AWG
The American Wire Gauge (AWG) system is used in a variety of applications, including:
- Residential Wiring: Commonly used for household electrical wiring, such as lighting circuits, outlet circuits, and appliance circuits.
- Commercial Wiring: Used in commercial buildings for power distribution, lighting, and equipment wiring.
- Automotive Wiring: Used in vehicles for electrical systems, including lighting, ignition, and entertainment systems.
- Industrial Wiring: Used in industrial settings for machinery, control systems, and power distribution.
AWG vs. Other Wire Sizing Systems
While the American Wire Gauge (AWG) system is widely used in the United States and Canada, other countries and industries use different wire sizing systems. For example:
- British Standard Wire Gauge (SWG): Used in the United Kingdom and some Commonwealth countries.
- International Electrotechnical Commission (IEC) Standards: Used internationally, particularly in Europe and Asia.

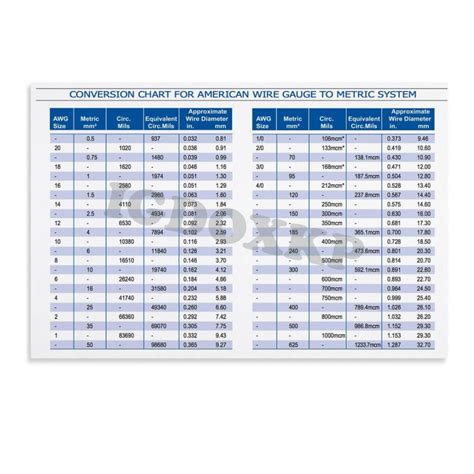

- Square Millimeter (mm²): A metric system used to denote the cross-sectional area of a wire.
Understanding these different systems can be beneficial when working on international projects or collaborating with professionals from other countries.
🔍 Note: Always verify the wire sizing system being used in a specific project to avoid errors and ensure compliance.
Conclusion
Understanding the American Wire Gauge (AWG) system is essential for anyone involved in electrical work. It ensures that electrical systems are safe, efficient, and compliant with industry standards. By selecting the appropriate wire size based on current load, voltage drop, and wire length, you can minimize risks and optimize performance. Whether you’re working on residential, commercial, automotive, or industrial projects, the AWG system provides a reliable framework for wire sizing. Always refer to local electrical codes and regulations to ensure compliance and safety in your electrical projects.
