Compressed air systems are integral to various industries, from manufacturing and automotive to healthcare and food processing. The process of air is compressed involves increasing the pressure of air, which can then be used to power tools, operate machinery, and perform a multitude of other tasks. Understanding the fundamentals of compressed air systems, their components, and applications is crucial for anyone involved in these industries.
Understanding Compressed Air Systems
Compressed air systems are designed to generate and distribute compressed air efficiently. The primary components of a compressed air system include the compressor, air receiver, dryer, filters, and distribution network. Each of these components plays a vital role in ensuring that the air is compressed and delivered in a clean, dry, and reliable form.
Compressors
Compressors are the heart of any compressed air system. They are responsible for air is compressed to the desired pressure level. There are several types of compressors, each suited to different applications:

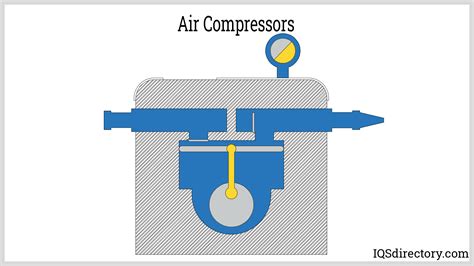

- Reciprocating Compressors: These use a piston to compress air. They are known for their high efficiency and are often used in industrial settings.
- Rotary Screw Compressors: These use two interlocking screws to compress air. They are continuous-duty machines and are ideal for applications requiring a steady supply of compressed air.
- Centrifugal Compressors: These use a rotating impeller to compress air. They are typically used in large-scale applications where high volumes of air are required.
Air Receivers
Air receivers are storage tanks that hold compressed air. They serve several purposes, including:
- Stabilizing pressure fluctuations
- Providing a reserve of compressed air during peak demand periods
- Allowing for the separation of moisture and contaminants from the compressed air
Air receivers are typically sized based on the specific needs of the application, taking into account factors such as air demand, pressure requirements, and system configuration.
Dryers and Filters

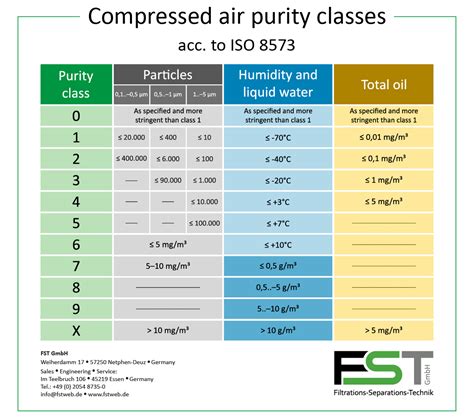

Compressed air often contains moisture and contaminants that can affect the performance of pneumatic tools and equipment. Dryers and filters are used to remove these impurities:
- Air Dryers: These remove moisture from the compressed air. Common types include refrigerated dryers, desiccant dryers, and membrane dryers.
- Air Filters: These remove particulate matter and oil from the compressed air. They are typically placed after the dryer to ensure the air is clean and dry.
Distribution Network
The distribution network consists of pipes, valves, and fittings that deliver compressed air to various points of use. Proper design and maintenance of the distribution network are essential for ensuring efficient and reliable operation of the compressed air system.
Applications of Compressed Air Systems
Compressed air systems have a wide range of applications across various industries. Some of the most common uses include:
- Manufacturing: Compressed air is used to power pneumatic tools, operate machinery, and automate production processes.
- Automotive: Compressed air is used in paint shops, tire inflation, and various assembly processes.
- Healthcare: Compressed air is used to power medical equipment, such as ventilators and surgical tools.
- Food Processing: Compressed air is used for packaging, conveying, and cleaning processes.
Maintenance and Efficiency of Compressed Air Systems
Maintaining a compressed air system is crucial for ensuring its longevity and efficiency. Regular maintenance tasks include:
- Checking and replacing air filters
- Draining moisture from air receivers
- Inspecting and lubricating compressors
- Monitoring pressure and flow rates
Efficiency can be improved by implementing energy-saving measures, such as:
- Using variable speed drives on compressors
- Installing energy-efficient motors
- Optimizing the distribution network to reduce pressure drops
- Implementing a compressed air management system to monitor and control air usage
🔧 Note: Regular maintenance and efficiency improvements can significantly reduce operating costs and extend the lifespan of the compressed air system.
Safety Considerations
Working with compressed air systems involves several safety considerations. Some key points to remember include:
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure that all components of the compressed air system are properly grounded to prevent static discharge.
- Regularly inspect hoses and fittings for signs of wear or damage.
- Follow proper procedures for draining moisture from air receivers to prevent rust and corrosion.
Additionally, it is important to be aware of the potential hazards associated with compressed air, such as:
- High-pressure air can cause serious injuries if directed at the body.
- Compressed air can displace oxygen in confined spaces, leading to asphyxiation.
- Moisture and contaminants in compressed air can cause equipment failure and product contamination.
By following safety guidelines and maintaining the system properly, these risks can be minimized.
Cost Considerations

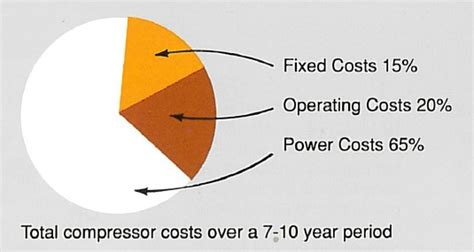

The cost of a compressed air system can vary widely depending on the size, type, and complexity of the system. Key cost factors include:
- Initial purchase and installation costs
- Operating costs, including energy consumption and maintenance
- Costs associated with downtime and repairs
To optimize costs, it is essential to:
- Choose the right type and size of compressor for the application
- Implement energy-efficient practices
- Regularly maintain the system to prevent breakdowns and extend its lifespan
Additionally, investing in a compressed air management system can help monitor and control air usage, further reducing costs.
Environmental Impact
Compressed air systems can have an environmental impact, primarily through energy consumption and emissions. To minimize this impact, consider the following:
- Using energy-efficient compressors and motors
- Implementing variable speed drives to match air supply with demand
- Recycling waste heat from the compression process
- Regularly maintaining the system to ensure optimal performance
By taking these steps, the environmental footprint of a compressed air system can be significantly reduced.
Compressed air systems are essential for many industries, providing a reliable and versatile source of power. By understanding the components, applications, maintenance requirements, and safety considerations of these systems, you can ensure efficient and safe operation. Regular maintenance, energy-saving measures, and proper safety practices are key to maximizing the benefits of compressed air systems while minimizing costs and environmental impact.
