Adding A Gfci Outlet

Electrical safety is paramount in any home or workplace. One of the most effective ways to ensure safety is by installing Ground Fault Circuit Interrupter (GFCI) outlets. These outlets are designed to protect against electrical shocks by shutting off power when they detect a ground fault. Adding a GFCI outlet is a straightforward process that can significantly enhance the safety of your electrical system. This guide will walk you through the steps involved in installing a GFCI outlet, from understanding the basics to completing the installation.

Table of Contents

Understanding GFCI Outlets

Before diving into the installation process, it's essential to understand what a GFCI outlet is and why it's important. A GFCI outlet is a type of electrical outlet that includes a built-in circuit breaker. This breaker monitors the electrical current flowing through the outlet and trips the circuit if it detects any imbalance, which could indicate a ground fault. Ground faults occur when electrical current leaks from the circuit and flows through an unintended path, such as through a person's body, which can result in severe electrical shocks.

GFCI outlets are particularly important in areas where water is present, such as kitchens, bathrooms, and outdoor spaces. They are also required by the National Electrical Code (NEC) in these locations to ensure safety. By installing a GFCI outlet, you can protect yourself and your family from electrical hazards and comply with safety regulations.

Tools and Materials Needed

To successfully install a GFCI outlet, you will need the following tools and materials:

GFCI outlet
Screwdriver (flathead and Phillips)
Wire stripper
Wire cutter
Non-contact voltage tester
Electrical tape
Wire nuts

Ensure you have all the necessary tools and materials before starting the installation process. This will help you complete the task efficiently and safely.

Preparing for Installation

Before you begin installing the GFCI outlet, it's crucial to prepare the area and ensure safety. Follow these steps to get started:

Turn off the power to the circuit you will be working on. This can be done by switching off the corresponding circuit breaker in your electrical panel.
Use a non-contact voltage tester to verify that the power is off. Test the outlet by touching the tester to the slots to ensure there is no electrical current.
Remove the old outlet by unscrewing the faceplate and the outlet itself from the electrical box.
Disconnect the wires from the old outlet. Note the wire colors and their connections for reference during the installation of the new GFCI outlet.

Once you have prepared the area and disconnected the old outlet, you are ready to proceed with the installation of the GFCI outlet.

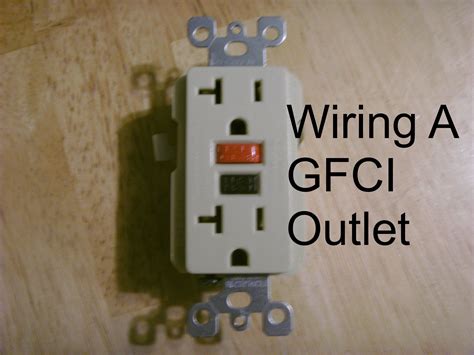

Installing the GFCI Outlet

Now that you have prepared the area, follow these steps to install the GFCI outlet:

Identify the wires connected to the old outlet. Typically, you will have a black (hot) wire, a white (neutral) wire, and a green or bare (ground) wire.
Connect the black wire to the brass-colored screw on the GFCI outlet. This is the hot wire connection.
Connect the white wire to the silver-colored screw on the GFCI outlet. This is the neutral wire connection.
Connect the green or bare wire to the green screw on the GFCI outlet. This is the ground wire connection.

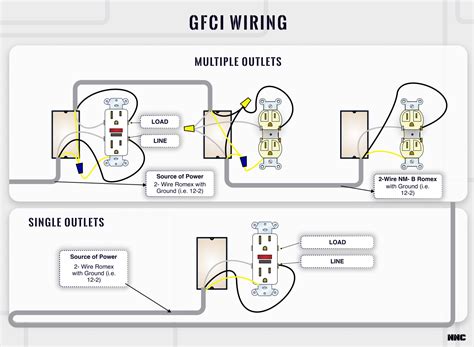

If there are additional wires (such as from another outlet or switch), connect them to the appropriate terminals on the GFCI outlet. Refer to the manufacturer's instructions for specific wiring diagrams.
Tighten all the screws securely to ensure a good connection.
Gently fold the wires back into the electrical box and secure the GFCI outlet to the box using the mounting screws.
Attach the faceplate to the GFCI outlet.

After completing these steps, you have successfully installed the GFCI outlet. The next step is to test the outlet to ensure it is functioning correctly.

Testing the GFCI Outlet

Testing the GFCI outlet is a crucial step to ensure it is working properly and providing the necessary protection. Follow these steps to test the outlet:

Turn the power back on by switching the circuit breaker back to the "on" position.
Plug in a small appliance or lamp to the GFCI outlet and turn it on to verify that it is receiving power.
Press the "Test" button on the GFCI outlet. This should trip the circuit and turn off the power to the outlet.
Press the "Reset" button to restore power to the outlet. The appliance or lamp should turn back on.

If the GFCI outlet passes these tests, it is functioning correctly and providing the necessary protection against electrical shocks. If the outlet does not pass the tests, double-check the wiring connections and ensure everything is secure. If the problem persists, consult a licensed electrician for assistance.

🛑 Note: Always ensure that the power is turned off before working on electrical outlets or circuits. Failure to do so can result in electrical shocks or other hazards.

Additional Considerations

While installing a GFCI outlet is a straightforward process, there are a few additional considerations to keep in mind:

Location: GFCI outlets should be installed in areas where water is present, such as kitchens, bathrooms, garages, and outdoor spaces. They are also required by the NEC in these locations.
Wiring: Ensure that the wiring in your electrical box is in good condition and free of damage. If you notice any frayed or damaged wires, replace them before installing the GFCI outlet.
Compatibility: Make sure the GFCI outlet you purchase is compatible with your existing electrical system. Check the specifications and ensure it meets your needs.
Professional Help: If you are unsure about any aspect of the installation process, do not hesitate to consult a licensed electrician. Electrical work can be dangerous, and it's essential to ensure safety.

By keeping these considerations in mind, you can ensure a safe and successful installation of your GFCI outlet.

Troubleshooting Common Issues

Even with careful installation, you may encounter some common issues with your GFCI outlet. Here are some troubleshooting tips to help you resolve these problems:

Outlet Not Working: If the GFCI outlet is not providing power, check the wiring connections to ensure they are secure. Also, verify that the circuit breaker is in the "on" position.
Outlet Tripping Frequently: If the GFCI outlet trips frequently, it may indicate a ground fault or a problem with the wiring. Check for any damaged wires or loose connections and address them accordingly.
Test Button Not Working: If the "Test" button does not trip the circuit, there may be an issue with the GFCI outlet itself. Try resetting the outlet and testing it again. If the problem persists, replace the outlet.

If you encounter any issues that you cannot resolve, consult a licensed electrician for assistance. Electrical problems can be complex and dangerous, so it's essential to seek professional help when needed.

🛑 Note: Always prioritize safety when working with electrical systems. If you are unsure about any aspect of the installation or troubleshooting process, consult a licensed electrician.

Benefits of Adding a GFCI Outlet

Adding a GFCI outlet to your electrical system offers numerous benefits, including:

Enhanced Safety: GFCI outlets protect against electrical shocks by shutting off power when they detect a ground fault. This makes them essential in areas where water is present.
Compliance with Regulations: GFCI outlets are required by the NEC in specific locations, such as kitchens, bathrooms, and outdoor spaces. Installing them ensures compliance with safety regulations.
Peace of Mind: Knowing that your electrical system is protected against ground faults provides peace of mind and reduces the risk of electrical hazards.
Easy Installation: Adding a GFCI outlet is a straightforward process that can be completed with basic tools and materials. This makes it a cost-effective way to enhance electrical safety.

By installing GFCI outlets, you can significantly improve the safety of your electrical system and protect yourself and your family from electrical hazards.

Adding a GFCI outlet is a crucial step in ensuring electrical safety in your home or workplace. By following the steps outlined in this guide, you can successfully install a GFCI outlet and enjoy the benefits of enhanced protection against electrical shocks. Always prioritize safety and consult a licensed electrician if you encounter any issues or are unsure about any aspect of the installation process.

In conclusion, installing a GFCI outlet is a simple yet effective way to enhance electrical safety. By understanding the basics of GFCI outlets, preparing for installation, and following the steps carefully, you can ensure a successful and safe installation. Regular testing and maintenance of your GFCI outlets will help maintain their effectiveness and provide ongoing protection against electrical hazards.
