Acoustic Echo Cancellation

In the realm of audio processing, one of the most critical technologies is Acoustic Echo Cancellation (AEC). This technology is essential for improving the quality of audio communications, particularly in environments where echo and reverberation can significantly degrade the user experience. Whether in conference calls, virtual meetings, or voice-activated devices, AEC plays a pivotal role in ensuring clear and intelligible audio.

Table of Contents

Understanding Acoustic Echo Cancellation

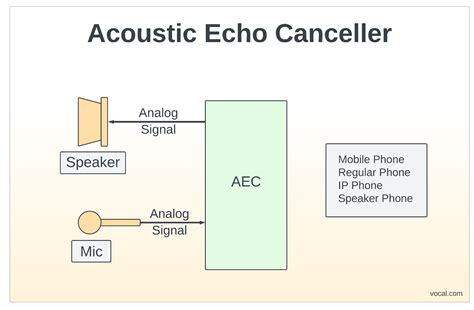

Acoustic Echo Cancellation is a signal processing technique used to eliminate the echo that occurs when a speaker's voice is picked up by a microphone and played back through a loudspeaker, creating a feedback loop. This echo can be highly disruptive, making it difficult for participants to understand each other. AEC works by analyzing the audio signals and identifying the echo components, which are then subtracted from the original signal to produce a cleaner output.

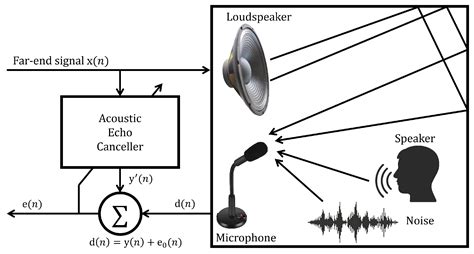

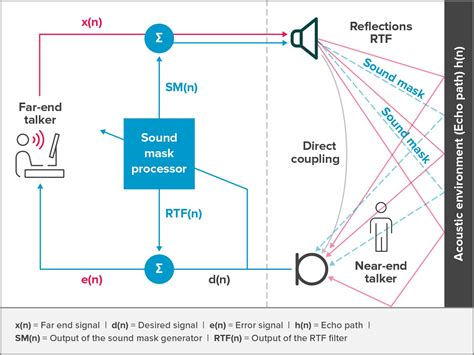

How Acoustic Echo Cancellation Works

The process of Acoustic Echo Cancellation involves several key steps:

Signal Acquisition: The microphone captures the audio signal, which includes both the desired speech and the echo.
Echo Estimation: The system estimates the echo path, which is the acoustic path from the loudspeaker to the microphone. This involves modeling the room's acoustics and the characteristics of the loudspeaker and microphone.
Echo Cancellation: The estimated echo is subtracted from the captured signal to produce a cleaner audio output.
Adaptive Filtering: The system continuously adapts to changes in the acoustic environment, such as movements of people or objects, to maintain effective echo cancellation.

This process is typically implemented using digital signal processing (DSP) algorithms, which can be highly complex and computationally intensive. However, advancements in technology have made it possible to integrate AEC into a wide range of devices, from smartphones to smart speakers.

Applications of Acoustic Echo Cancellation

Acoustic Echo Cancellation has a wide range of applications, including:

Teleconferencing: In virtual meetings and conference calls, AEC ensures that participants can hear each other clearly without the distraction of echo.
Voice-Activated Devices: Smart speakers and virtual assistants use AEC to improve the accuracy of voice commands and reduce background noise.
Hands-Free Communication: In automotive and hands-free communication systems, AEC enhances the clarity of voice calls by eliminating echo and reverberation.
Audio Conferencing: In large-scale audio conferencing systems, AEC is essential for maintaining clear communication among multiple participants.

In each of these applications, AEC plays a crucial role in enhancing the user experience by providing clear and intelligible audio.

Challenges in Acoustic Echo Cancellation

While Acoustic Echo Cancellation is a powerful technology, it also faces several challenges:

Non-Stationary Environments: In dynamic environments where the acoustic characteristics change frequently, AEC algorithms must adapt quickly to maintain effectiveness.
Double-Talk: This occurs when both the near-end and far-end speakers are talking simultaneously, making it difficult for the AEC system to distinguish between the desired speech and the echo.
Computational Complexity: AEC algorithms can be computationally intensive, requiring significant processing power to achieve real-time performance.
Acoustic Feedback: In some cases, the echo cancellation process itself can introduce artifacts or residual echo, which can degrade the audio quality.

Addressing these challenges requires continuous innovation and improvement in AEC algorithms and hardware.

Advancements in Acoustic Echo Cancellation

Recent advancements in Acoustic Echo Cancellation have focused on improving the robustness and efficiency of AEC systems. Some of the key developments include:

Adaptive Algorithms: New adaptive algorithms can quickly adjust to changes in the acoustic environment, providing more effective echo cancellation in dynamic settings.
Machine Learning: Machine learning techniques are being used to enhance the accuracy and efficiency of AEC algorithms, enabling better performance in complex environments.
Hardware Acceleration: Specialized hardware, such as digital signal processors (DSPs) and field-programmable gate arrays (FPGAs), are being used to accelerate AEC processing, reducing latency and improving real-time performance.
Hybrid Approaches: Combining traditional AEC techniques with advanced signal processing methods, such as beamforming and noise reduction, can further enhance the overall performance of AEC systems.

These advancements are paving the way for more effective and efficient Acoustic Echo Cancellation solutions, improving the quality of audio communications across various applications.

Implementation of Acoustic Echo Cancellation

Implementing Acoustic Echo Cancellation involves several steps, from selecting the appropriate algorithms to integrating the system into the target device. Here is a high-level overview of the implementation process:

Algorithm Selection: Choose the AEC algorithm that best suits the application requirements, considering factors such as computational complexity, robustness, and performance.
Hardware Integration: Integrate the AEC algorithm into the target hardware, ensuring that it can handle the required processing load and meet real-time performance requirements.
Calibration: Calibrate the AEC system to the specific acoustic environment, adjusting parameters such as echo path delay and room acoustics to optimize performance.
Testing and Validation: Conduct thorough testing and validation to ensure that the AEC system meets the desired performance criteria and handles various acoustic scenarios effectively.
Optimization: Optimize the AEC system for power consumption, latency, and other critical performance metrics to ensure efficient operation in the target device.

This process requires a deep understanding of both the AEC algorithms and the target application, as well as expertise in signal processing and hardware integration.

🔍 Note: The effectiveness of AEC implementation can be significantly influenced by the quality of the microphone and loudspeaker used in the system. High-quality audio components can enhance the overall performance of the AEC system.

Future Trends in Acoustic Echo Cancellation

As technology continues to evolve, several trends are emerging in the field of Acoustic Echo Cancellation:

AI and Machine Learning: The integration of artificial intelligence and machine learning is expected to further enhance the capabilities of AEC systems, enabling more accurate and adaptive echo cancellation.
Edge Computing: With the rise of edge computing, AEC processing can be performed closer to the source, reducing latency and improving real-time performance.
Multi-Microphone Systems: The use of multiple microphones in AEC systems can provide better spatial resolution and improved echo cancellation, particularly in noisy environments.
Integration with Other Technologies: Combining AEC with other audio processing technologies, such as noise reduction and beamforming, can create more robust and effective audio solutions.

These trends are poised to drive further advancements in Acoustic Echo Cancellation, making it an even more essential technology in the future of audio communications.

Case Studies in Acoustic Echo Cancellation

To illustrate the practical applications of Acoustic Echo Cancellation, let's examine a few case studies:

Teleconferencing Systems

In teleconferencing systems, AEC is crucial for ensuring clear communication among participants. For example, a company implementing a teleconferencing solution for remote work might use AEC to eliminate echo and reverberation, enhancing the clarity of voice calls and improving the overall user experience. By integrating AEC into their conferencing software, the company can provide a more professional and reliable communication platform for their employees.

Voice-Activated Devices

Voice-activated devices, such as smart speakers and virtual assistants, rely on AEC to improve the accuracy of voice commands. For instance, a smart speaker manufacturer might use AEC to reduce background noise and eliminate echo, ensuring that voice commands are accurately recognized and executed. This enhances the user experience by providing more reliable and responsive interactions with the device.

Automotive Communication Systems

In automotive communication systems, AEC is essential for hands-free calling and voice-activated controls. For example, a car manufacturer might integrate AEC into their infotainment system to eliminate echo and improve the clarity of voice calls. This ensures that drivers can communicate safely and effectively while on the road, enhancing both safety and convenience.

These case studies demonstrate the versatility and importance of Acoustic Echo Cancellation in various applications, highlighting its role in enhancing audio quality and user experience.

Acoustic Echo Cancellation is a vital technology in the field of audio processing, playing a crucial role in improving the quality of audio communications. From teleconferencing to voice-activated devices, AEC ensures clear and intelligible audio, enhancing the user experience in various applications. As technology continues to advance, the future of AEC looks promising, with innovations in AI, machine learning, and edge computing driving further improvements in performance and efficiency. By understanding the principles and applications of Acoustic Echo Cancellation, we can appreciate its significance in modern audio communications and look forward to the exciting developments that lie ahead.
