Ackermann Steering Geometry

Understanding the intricacies of vehicle dynamics is crucial for engineers and enthusiasts alike. One of the fundamental concepts in this field is Ackermann Steering Geometry. This geometry is named after Rudolf Ackermann, a German carriage builder who developed the system in the early 19th century. It is a steering mechanism that ensures all wheels of a vehicle follow a circular path when turning, minimizing tire wear and improving handling.

Table of Contents

What is Ackermann Steering Geometry?

Ackermann Steering Geometry is a design principle that ensures the inner and outer wheels of a vehicle turn at different angles during a turn. This differential steering angle helps the vehicle to navigate corners more efficiently. The geometry is based on the concept that the inner wheel must turn at a sharper angle than the outer wheel to follow a circular path. This is achieved by using a steering linkage system that adjusts the steering angles of the wheels accordingly.

Importance of Ackermann Steering Geometry

The importance of Ackermann Steering Geometry cannot be overstated. It plays a critical role in enhancing the stability and control of a vehicle. By ensuring that all wheels follow a circular path, it reduces tire wear and tear, improves fuel efficiency, and enhances the overall driving experience. Additionally, it helps in maintaining the vehicle’s trajectory during turns, making it safer and more predictable.

Components of Ackermann Steering Geometry

The Ackermann Steering Geometry system consists of several key components:

Steering Linkage: This is the mechanical system that connects the steering wheel to the wheels. It includes tie rods, control arms, and other linkages that adjust the steering angles.
Steering Knuckle: This is the part that connects the wheel to the suspension system. It allows the wheel to pivot and turn.
Steering Arm: This is the component that connects the steering linkage to the steering knuckle. It transfers the steering input from the driver to the wheels.
Pitman Arm: This is a lever that connects the steering gear to the steering linkage. It converts the rotational motion of the steering wheel into linear motion.

How Ackermann Steering Geometry Works

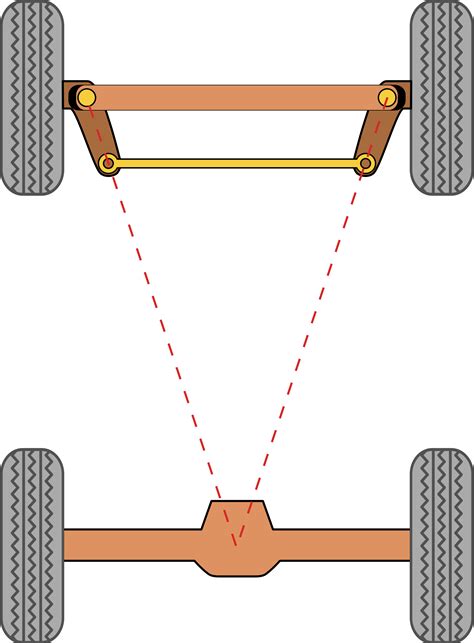

Ackermann Steering Geometry works by adjusting the steering angles of the wheels based on the turning radius. When the vehicle turns, the inner wheel must turn at a sharper angle than the outer wheel to follow a circular path. The steering linkage system ensures that this differential angle is maintained, allowing the vehicle to navigate corners smoothly.

The steering linkage system consists of several components that work together to achieve this. The steering wheel is connected to the steering gear, which in turn is connected to the pitman arm. The pitman arm transfers the steering input to the steering linkage, which adjusts the steering angles of the wheels. The steering knuckle and steering arm ensure that the wheels pivot and turn accordingly.

Mathematical Representation of Ackermann Steering Geometry

The Ackermann Steering Geometry can be mathematically represented using the following formula:

📝 Note: The formula assumes that the vehicle is turning at a constant radius and that the wheels are aligned correctly.

cot(δ_o) = (L + a) / (R + b)

cot(δ_i) = (L - a) / (R - b)

Where:

δ_o is the steering angle of the outer wheel.
δ_i is the steering angle of the inner wheel.
L is the wheelbase of the vehicle.
a is the distance from the center of the wheelbase to the pivot point of the steering linkage.
R is the turning radius of the vehicle.
b is the distance from the center of the wheelbase to the center of the rear axle.

Advantages of Ackermann Steering Geometry

Ackermann Steering Geometry offers several advantages:

Improved Handling: By ensuring that all wheels follow a circular path, it enhances the vehicle’s handling and stability during turns.
Reduced Tire Wear: The differential steering angles reduce tire wear and tear, extending the lifespan of the tires.
Enhanced Fuel Efficiency: The efficient steering mechanism reduces the energy required to turn the wheels, improving fuel efficiency.
Better Traction: The geometry ensures that the wheels maintain better contact with the road surface, improving traction and grip.

Disadvantages of Ackermann Steering Geometry

Despite its advantages, Ackermann Steering Geometry also has some disadvantages:

Complexity: The system is more complex than other steering mechanisms, requiring precise engineering and maintenance.
Cost: The complexity of the system makes it more expensive to manufacture and maintain.
Limited Flexibility: The geometry is designed for specific turning radii and may not be suitable for all driving conditions.

Applications of Ackermann Steering Geometry

Ackermann Steering Geometry is widely used in various types of vehicles, including:

Cars: Most modern cars use Ackermann Steering Geometry to enhance handling and stability.
Trucks: Large trucks and commercial vehicles also benefit from this steering mechanism, especially for navigating tight corners and narrow roads.
Buses: Public transportation vehicles like buses use Ackermann Steering Geometry to ensure smooth and safe turns.
Construction Equipment: Heavy machinery and construction equipment often employ this steering mechanism to improve maneuverability.

Design Considerations for Ackermann Steering Geometry

When designing a vehicle with Ackermann Steering Geometry, several factors must be considered:

Wheelbase: The wheelbase of the vehicle affects the turning radius and the steering angles.
Track Width: The distance between the wheels affects the stability and handling of the vehicle.
Steering Ratio: The ratio of the steering wheel rotation to the wheel rotation affects the responsiveness of the steering.
Suspension Design: The suspension system must be designed to accommodate the steering angles and maintain wheel alignment.

Maintenance of Ackermann Steering Geometry

Maintaining Ackermann Steering Geometry is crucial for ensuring the longevity and performance of the vehicle. Regular inspections and adjustments are necessary to keep the system in optimal condition. Key maintenance tasks include:

Checking Alignment: Regularly check the wheel alignment to ensure that the steering angles are correct.
Inspecting Linkages: Inspect the steering linkage for any signs of wear or damage.
Lubricating Components: Lubricate the moving parts of the steering system to reduce friction and wear.
Replacing Worn Parts: Replace any worn or damaged components promptly to maintain the system’s performance.

Future Trends in Ackermann Steering Geometry

The future of Ackermann Steering Geometry is likely to see advancements in technology and design. Some emerging trends include:

Electronic Steering Systems: The integration of electronic steering systems that use sensors and actuators to adjust the steering angles in real-time.
Adaptive Steering: Systems that adapt to different driving conditions and road surfaces, providing optimal steering performance.
Autonomous Vehicles: The development of steering systems for autonomous vehicles that can navigate complex environments without human intervention.

In conclusion, Ackermann Steering Geometry is a fundamental concept in vehicle dynamics that enhances handling, stability, and efficiency. By ensuring that all wheels follow a circular path during turns, it reduces tire wear, improves fuel efficiency, and provides a smoother driving experience. Understanding the principles and applications of Ackermann Steering Geometry is essential for engineers and enthusiasts alike, as it forms the basis for modern steering systems in various types of vehicles. As technology advances, we can expect to see further innovations in this field, leading to even more efficient and effective steering mechanisms.
