Understanding the principles of mechanics and physics often involves visualizing forces acting on an object. One of the most effective tools for this purpose is a freebody diagram. A freebody diagram example can help illustrate how forces interact and affect the motion or equilibrium of an object. This post will delve into the creation and interpretation of freebody diagrams, providing a comprehensive guide for students and professionals alike.
What is a Freebody Diagram?
A freebody diagram is a graphical representation used to analyze the forces acting on a body. It isolates the body from its surroundings and shows all the forces acting on it, including gravitational, normal, frictional, and applied forces. This diagram is crucial in engineering and physics for solving problems related to statics, dynamics, and kinematics.
Components of a Freebody Diagram
A typical freebody diagram includes several key components:
- Body of Interest: The object or system being analyzed.
- Forces: Arrows representing the forces acting on the body. These can include gravitational force (weight), normal force, frictional force, applied forces, and tension.
- Directions: The direction of each force, typically indicated by the direction of the arrow.
- Magnitudes: The size or strength of each force, often labeled on the arrow.
Creating a Freebody Diagram Example

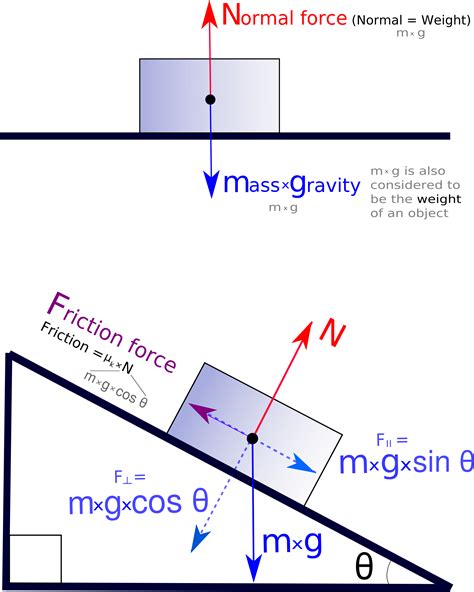

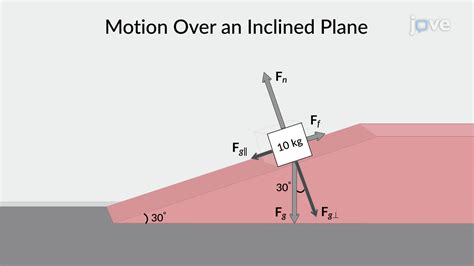

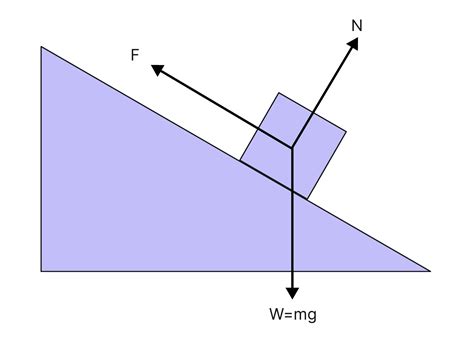

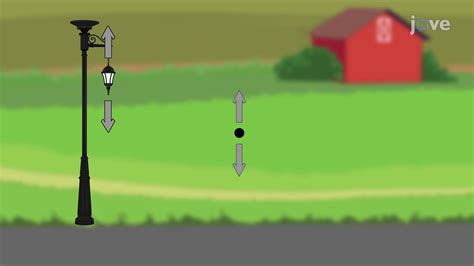

Let’s walk through the process of creating a freebody diagram for a simple scenario: a block resting on an inclined plane.
Step 1: Identify the Body of Interest
In this example, the body of interest is the block. Draw a simple outline of the block.
Step 2: Identify All Forces Acting on the Body
For the block on an inclined plane, the forces acting on it are:
- Gravitational force (weight) acting downward.
- Normal force perpendicular to the inclined plane.
- Frictional force parallel to the inclined plane.
Step 3: Draw the Forces
Draw arrows representing each force. Ensure the direction and magnitude of each force are accurately depicted.
Step 4: Label the Forces
Label each force with its type and magnitude. For example, label the gravitational force as mg, where m is the mass of the block and g is the acceleration due to gravity.
📝 Note: Ensure that the forces are drawn to scale and that the directions are accurate. This will help in correctly analyzing the forces.
Interpreting a Freebody Diagram Example
Once the freebody diagram is created, the next step is to interpret it. This involves analyzing the forces to determine the net force acting on the body and its resulting motion or equilibrium.
Analyzing Forces
For the block on an inclined plane, the forces can be analyzed as follows:
- Gravitational Force: Acts downward and can be resolved into components parallel and perpendicular to the plane.
- Normal Force: Acts perpendicular to the plane and balances the perpendicular component of the gravitational force.
- Frictional Force: Acts parallel to the plane and opposes the motion of the block.
Equilibrium Conditions
If the block is in equilibrium, the net force acting on it must be zero. This means the sum of the forces in all directions must be zero. For the block on an inclined plane, this can be expressed as:
| Direction | Force | Equation |
|---|---|---|
| Perpendicular to the plane | Normal force and perpendicular component of gravitational force | N - mg cos(θ) = 0 |
| Parallel to the plane | Frictional force and parallel component of gravitational force | f - mg sin(θ) = 0 |
Where N is the normal force, f is the frictional force, m is the mass of the block, g is the acceleration due to gravity, and θ is the angle of the inclined plane.
Applications of Freebody Diagrams
Freebody diagrams are used in various fields, including engineering, physics, and biomechanics. Some common applications include:
- Structural Analysis: Analyzing the forces acting on buildings, bridges, and other structures to ensure stability and safety.
- Mechanical Engineering: Designing and analyzing machines and mechanical systems to optimize performance and efficiency.
- Biomechanics: Studying the forces acting on the human body during movement to improve athletic performance and prevent injuries.
Common Mistakes to Avoid
When creating and interpreting freebody diagrams, it’s important to avoid common mistakes that can lead to incorrect analyses. Some of these mistakes include:
- Omitting Forces: Forgetting to include all forces acting on the body.
- Incorrect Directions: Drawing forces in the wrong direction.
- Incorrect Magnitudes: Mislabeling the magnitude of forces.
- Ignoring Friction: Overlooking the frictional force, especially in dynamic problems.
📝 Note: Double-check your freebody diagram for accuracy before proceeding with the analysis. This will help ensure that your calculations are correct and your conclusions are valid.
Freebody diagrams are essential tools in the study of mechanics and physics. By accurately representing the forces acting on a body, they provide a clear and concise way to analyze and solve problems related to motion and equilibrium. Whether you're a student learning the basics or a professional applying these principles in real-world scenarios, mastering the creation and interpretation of freebody diagrams is a valuable skill.
In summary, a freebody diagram example illustrates the forces acting on an object, helping to analyze its motion or equilibrium. By following the steps outlined in this post, you can create accurate freebody diagrams and use them to solve a wide range of problems in mechanics and physics. Understanding the components of a freebody diagram, creating it step-by-step, and interpreting the forces involved are key to mastering this essential tool. Whether you’re dealing with simple scenarios like a block on an inclined plane or more complex systems, freebody diagrams provide a clear and effective way to visualize and analyze forces.
