Understanding the concept of 8 THHN Ampacity is crucial for anyone involved in electrical wiring and installations. 8 THHN Ampacity refers to the current-carrying capacity of an 8 AWG THHN (Thermoplastic High Heat-resistant Nylon-coated) wire. This type of wire is widely used in electrical systems due to its durability and resistance to heat and chemicals. Knowing the ampacity of 8 THHN wire is essential for ensuring safety and compliance with electrical codes.
What is THHN Wire?
THHN wire is a type of electrical conductor that is commonly used in building wiring, control circuits, and other electrical applications. The acronym THHN stands for:
- T: Thermoplastic
- H: High heat-resistant
- H: High heat-resistant
- N: Nylon-coated
THHN wire is known for its flexibility, durability, and resistance to heat and chemicals, making it suitable for a variety of electrical installations.
Understanding Ampacity
Ampacity, short for ampere capacity, is the maximum current that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. The ampacity of a wire is determined by several factors, including the wire’s gauge, insulation type, and the ambient temperature. For 8 THHN Ampacity, the gauge is 8 AWG, and the insulation type is THHN.
Factors Affecting 8 THHN Ampacity
Several factors can affect the ampacity of 8 THHN wire. Understanding these factors is essential for ensuring safe and efficient electrical installations.
- Ambient Temperature: The surrounding temperature can significantly impact the ampacity of a wire. Higher ambient temperatures reduce the wire’s ability to dissipate heat, lowering its ampacity.
- Number of Conductors: The more conductors bundled together, the less efficient heat dissipation becomes, which can reduce the ampacity.
- Conduit Fill: The amount of space a wire occupies within a conduit can affect its ampacity. Overcrowding can lead to reduced heat dissipation and lower ampacity.
- Termination Points: The type and condition of termination points can also affect ampacity. Poorly designed or damaged termination points can cause overheating and reduce the wire’s current-carrying capacity.
Determining 8 THHN Ampacity

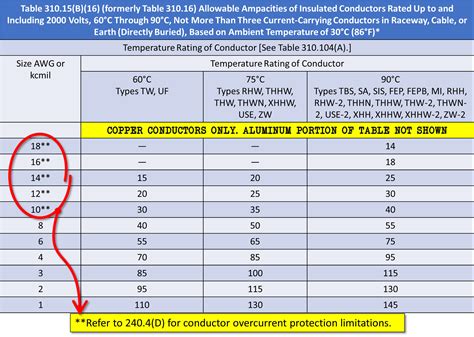

To determine the ampacity of 8 THHN wire, you can refer to the National Electrical Code (NEC) or other relevant electrical standards. The NEC provides tables that list the ampacity of various wire gauges and insulation types under different conditions. For 8 THHN wire, the ampacity is typically 40 amperes at an ambient temperature of 30°C (86°F).
Here is a table showing the ampacity of 8 THHN wire under different conditions:
| Ambient Temperature (°C) | Ampacity (Amperes) |
|---|---|
| 30 | 40 |
| 40 | 35 |
| 50 | 30 |
| 60 | 25 |
🔍 Note: The ampacity values in the table are based on standard conditions and may vary depending on specific installation factors.
Importance of Proper Wire Sizing
Proper wire sizing is crucial for ensuring the safety and efficiency of electrical systems. Using a wire with insufficient ampacity can lead to overheating, which can cause fires and other hazards. Conversely, using a wire with excessive ampacity can result in unnecessary costs and inefficiencies.
When sizing wires, it is essential to consider the following:
- Load Requirements: Determine the current requirements of the electrical load to ensure the wire can handle the expected current.
- Voltage Drop: Consider the voltage drop across the wire to ensure it meets the required voltage at the load.
- Environmental Conditions: Account for ambient temperature, humidity, and other environmental factors that can affect the wire's performance.
Safety Considerations
Safety is paramount when working with electrical wires. Here are some key safety considerations to keep in mind:
- Proper Installation: Ensure that wires are installed correctly, following all relevant codes and standards.
- Adequate Support: Provide adequate support for wires to prevent damage and ensure proper heat dissipation.
- Regular Inspection: Regularly inspect wires and electrical systems for signs of wear, damage, or overheating.
- Use of Protective Devices: Use circuit breakers, fuses, and other protective devices to safeguard against overcurrent conditions.
By adhering to these safety considerations, you can minimize the risk of electrical hazards and ensure the longevity of your electrical systems.
Properly understanding and applying the concept of 8 THHN Ampacity is essential for anyone involved in electrical installations. By considering the factors that affect ampacity, determining the correct ampacity for your specific application, and adhering to safety guidelines, you can ensure safe and efficient electrical systems. Whether you are a professional electrician or a DIY enthusiast, knowing the ampacity of 8 THHN wire is a critical skill that will serve you well in your electrical projects.
