Understanding the intricacies of electrical wiring is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. One of the key aspects to consider is the gauge of the wire, which determines its diameter and, consequently, its current-carrying capacity. Among the various wire gauges available, the 8 gauge wire diameter is particularly noteworthy due to its versatility and robustness. This post delves into the specifics of 8 gauge wire, its applications, and why it is a preferred choice in many electrical projects.
What is 8 Gauge Wire?

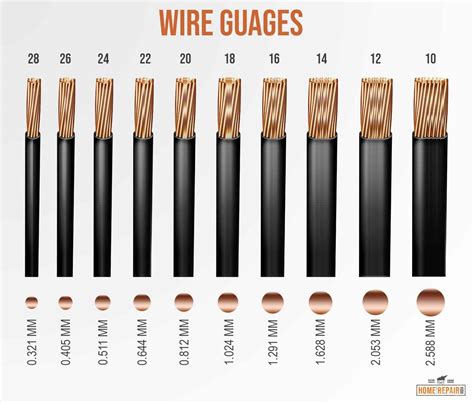

Wire gauge is a standardized measurement system that indicates the diameter of a wire. The American Wire Gauge (AWG) system is commonly used in the United States, where a lower gauge number corresponds to a thicker wire. An 8 gauge wire diameter is relatively thick, making it suitable for high-current applications. The AWG system is logarithmic, meaning that each gauge number represents a specific increase in wire diameter. For instance, an 8 gauge wire has a diameter of approximately 0.1285 inches (3.264 mm).
Applications of 8 Gauge Wire
Due to its robust nature, 8 gauge wire is used in a variety of applications where high current flow is required. Some of the most common uses include:
- Automotive Wiring: 8 gauge wire is often used in automotive electrical systems, particularly for high-power components like car audio systems, winches, and high-performance lighting.
- Solar Panels: In solar panel installations, 8 gauge wire is used to connect panels to inverters and batteries, ensuring efficient power transfer.
- Home Electrical Systems: For heavy-duty appliances such as electric ranges, dryers, and air conditioners, 8 gauge wire is commonly used to handle the high current demands.
- Industrial Machinery: In industrial settings, 8 gauge wire is employed for powering machinery and equipment that require significant electrical current.
Advantages of Using 8 Gauge Wire
There are several advantages to using 8 gauge wire in electrical projects:
- High Current Capacity: The thicker diameter of 8 gauge wire allows it to carry more current without overheating, making it ideal for high-power applications.
- Durability: The robust construction of 8 gauge wire makes it resistant to wear and tear, ensuring longevity in demanding environments.
- Versatility: Due to its high current capacity and durability, 8 gauge wire can be used in a wide range of applications, from automotive to industrial settings.
- Safety: The ability to handle high currents safely reduces the risk of electrical fires and other hazards.
Choosing the Right 8 Gauge Wire
When selecting 8 gauge wire for your project, there are several factors to consider:
- Material: Copper is the most common material for 8 gauge wire due to its excellent conductivity. However, aluminum is also used in some applications, particularly in power distribution.
- Insulation: The type of insulation is crucial for the wire's performance and safety. Common insulation materials include PVC, XLPE, and rubber, each with its own advantages in terms of temperature resistance and flexibility.
- Length: Ensure you have enough wire to complete your project without excessive splicing, which can weaken the connection.
- Color Coding: Different colors are used to identify the wire's purpose. For example, black is often used for hot wires, white for neutral, and green for ground.
Installation Tips for 8 Gauge Wire
Proper installation of 8 gauge wire is essential for ensuring safety and performance. Here are some tips to keep in mind:
- Use Appropriate Connectors: Ensure that all connectors and terminals are rated for the current and voltage of your application. Poorly rated connectors can overheat and cause fires.
- Secure Connections: Use wire nuts, crimp connectors, or soldering to secure connections. Loose connections can lead to arcing and overheating.
- Avoid Sharp Bends: Sharp bends can damage the wire and reduce its current-carrying capacity. Use gentle curves and avoid kinking the wire.
- Proper Grounding: Always ensure that the ground wire is properly connected to prevent electrical shocks and equipment damage.
🔧 Note: Always follow local electrical codes and regulations when installing 8 gauge wire to ensure compliance and safety.
Common Mistakes to Avoid
When working with 8 gauge wire, it's important to avoid common mistakes that can compromise the safety and efficiency of your electrical system:
- Overloading the Wire: Ensure that the wire is not carrying more current than its rated capacity. Overloading can cause overheating and fires.
- Improper Splicing: Avoid splicing wires unless absolutely necessary. If splicing is required, use proper connectors and ensure a secure connection.
- Ignoring Insulation: Damaged or inadequate insulation can lead to short circuits and electrical hazards. Always use wire with appropriate insulation for your application.
- Neglecting Grounding: Proper grounding is crucial for safety. Ensure that all ground wires are securely connected and that the grounding system is intact.

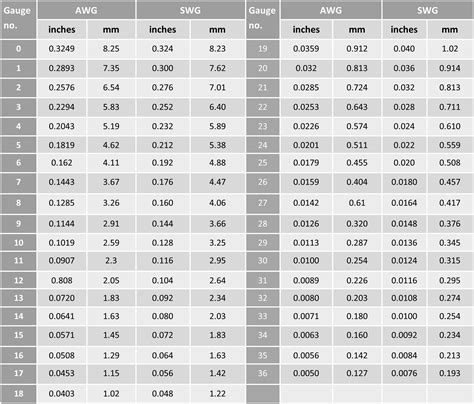

8 Gauge Wire Specifications
Understanding the specifications of 8 gauge wire is essential for selecting the right wire for your project. Here is a table outlining the key specifications:
| Specification | Value |
|---|---|
| Diameter | 0.1285 inches (3.264 mm) |
| Current Capacity (Copper) | 40-55 Amps (depending on insulation and application) |
| Current Capacity (Aluminum) | 30-45 Amps (depending on insulation and application) |
| Resistance per Foot (Copper) | 0.1563 ohms |
| Resistance per Foot (Aluminum) | 0.248 ohms |
Safety Precautions
Working with electrical wiring, including 8 gauge wire, requires strict adherence to safety precautions. Here are some key safety measures to follow:
- Turn Off Power: Always turn off the power supply before working on any electrical wiring to prevent electrical shocks.
- Use Insulated Tools: Use insulated tools designed for electrical work to minimize the risk of electrical hazards.
- Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses, to protect against electrical hazards and physical injuries.
- Follow Safety Protocols: Adhere to all safety protocols and regulations to ensure a safe working environment.
⚠️ Note: Never work on live electrical circuits. Always ensure that the power is turned off and the circuit is properly isolated before beginning any work.
In summary, 8 gauge wire is a versatile and robust choice for high-current applications. Its thick diameter allows it to carry significant electrical current safely, making it ideal for automotive, solar, home electrical, and industrial uses. By understanding the specifications, applications, and installation tips for 8 gauge wire, you can ensure the safety and efficiency of your electrical projects. Always prioritize safety and follow local electrical codes to avoid potential hazards and ensure compliance.
