Towing a trailer can be a convenient way to transport goods, equipment, or even recreational vehicles. However, ensuring that your trailer is properly connected to your vehicle is crucial for safety and efficiency. One of the key components in this setup is the 7 Way Trailer Plug. This plug is essential for connecting the electrical systems of your trailer to your towing vehicle, enabling functions such as brake lights, turn signals, and power for auxiliary devices. Understanding the importance and functionality of the 7 Way Trailer Plug can help you maintain a safe and reliable towing experience.
Understanding the 7 Way Trailer Plug

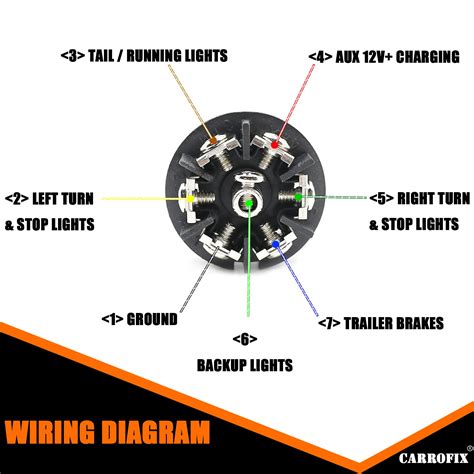

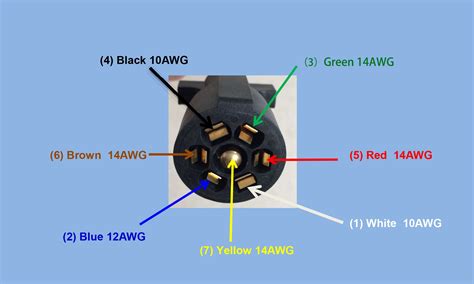

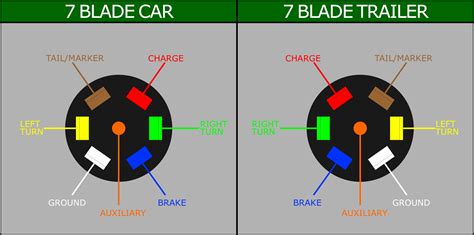

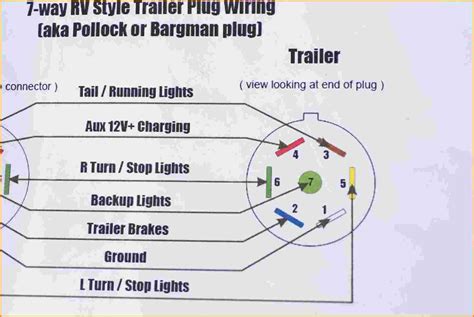

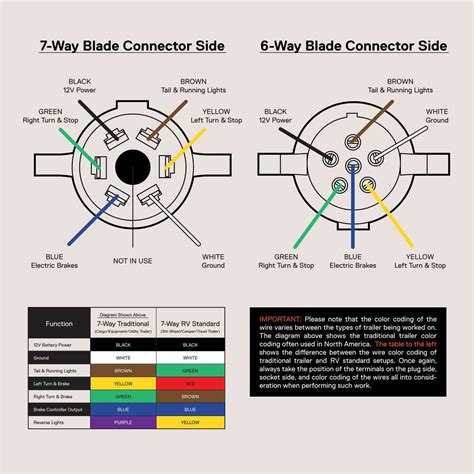

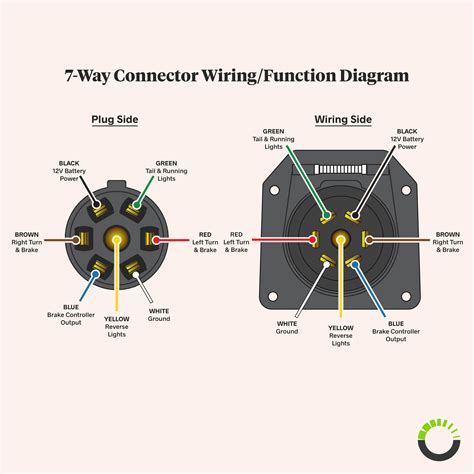

The 7 Way Trailer Plug is a standardized connector used to link the electrical systems of a trailer to a towing vehicle. It consists of seven pins, each serving a specific function. These pins are typically color-coded and labeled to ensure proper connection. The standard configuration includes:
- Pin 1: Ground
- Pin 2: Tail Lights/Running Lights
- Pin 3: Left Turn Signal/Left Brake Light
- Pin 4: Right Turn Signal/Right Brake Light
- Pin 5: Electric Brakes
- Pin 6: Reverse Lights
- Pin 7: Auxiliary Power (12V)
Each of these pins plays a critical role in ensuring that your trailer's electrical components function correctly. For example, the ground pin provides a return path for the electrical current, while the auxiliary power pin can be used to power additional devices on the trailer.
Types of 7 Way Trailer Plugs
There are different types of 7 Way Trailer Plugs available, each designed for specific applications. The most common types include:

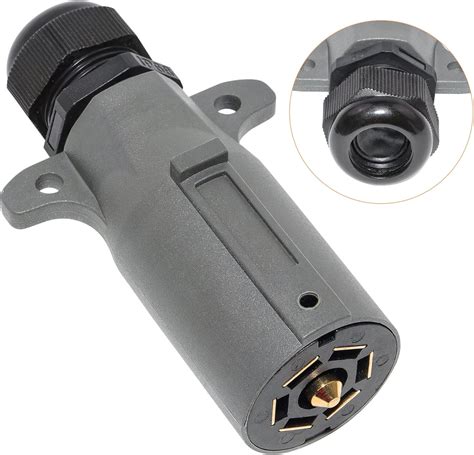

- Round 7 Way Plug: This is the most traditional type and is often found on older trailers and vehicles. It has a round shape and is typically used for basic electrical connections.
- Flat 7 Way Plug: This type is more modern and is commonly used on newer trailers and vehicles. It has a flat shape and is designed to be more durable and weather-resistant.
Choosing the right type of 7 Way Trailer Plug depends on your specific needs and the compatibility with your trailer and towing vehicle. It's essential to ensure that the plug you select matches the connectors on both your trailer and vehicle.
Installing a 7 Way Trailer Plug
Installing a 7 Way Trailer Plug involves several steps, and it's important to follow them carefully to ensure a proper and safe connection. Here is a step-by-step guide to installing a 7 Way Trailer Plug:
- Gather the Necessary Tools and Materials: You will need a 7 Way Trailer Plug, wiring harness, wire strippers, crimping tool, electrical tape, and a multimeter.
- Disconnect the Battery: Before starting any electrical work, disconnect the negative terminal of your vehicle's battery to prevent any short circuits.
- Locate the Wiring Harness: Find the wiring harness on your trailer that will connect to the 7 Way Trailer Plug. This is usually located near the trailer's tongue or hitch.
- Strip the Wires: Use wire strippers to remove about ½ inch of insulation from the ends of the wires in the harness. Be careful not to nick the wires.
- Connect the Wires: Match the wires from the harness to the corresponding pins on the 7 Way Trailer Plug. Use a crimping tool to secure the connections. Ensure that each wire is properly connected to its designated pin.
- Secure the Plug: Once all the wires are connected, secure the 7 Way Trailer Plug to the trailer's frame or tongue using screws or bolts. Make sure it is firmly attached and will not move around while towing.
- Test the Connections: Reconnect the vehicle's battery and test the electrical functions on your trailer. Use a multimeter to check for proper voltage and continuity on each pin.
🔧 Note: Always refer to your vehicle and trailer's manuals for specific wiring diagrams and instructions. If you are unsure about any step, consult a professional to avoid potential hazards.
Maintaining Your 7 Way Trailer Plug
Maintaining your 7 Way Trailer Plug is essential for ensuring reliable performance and longevity. Regular inspections and maintenance can help prevent electrical issues and ensure safe towing. Here are some tips for maintaining your 7 Way Trailer Plug:
- Inspect for Damage: Regularly check the 7 Way Trailer Plug for any signs of damage, such as corrosion, cracks, or loose connections. Address any issues promptly to prevent further damage.
- Clean the Connections: Use a wire brush or electrical contact cleaner to remove any dirt, grime, or corrosion from the pins and sockets. This will help ensure a good electrical connection.
- Protect from Moisture: Apply a waterproofing spray or silicone grease to the 7 Way Trailer Plug to protect it from moisture and corrosion. This is especially important if you frequently tow in wet or humid conditions.
- Secure the Plug: Ensure that the 7 Way Trailer Plug is securely fastened to the trailer's frame or tongue. Loose connections can cause intermittent electrical issues and potential safety hazards.
By following these maintenance tips, you can extend the life of your 7 Way Trailer Plug and ensure that your trailer's electrical systems function reliably.
Troubleshooting Common Issues
Even with proper installation and maintenance, you may encounter issues with your 7 Way Trailer Plug. Here are some common problems and their potential solutions:
| Issue | Potential Cause | Solution |
|---|---|---|
| No Power to Trailer Lights | Loose or corroded connections | Check and tighten all connections. Clean any corrosion with a wire brush or electrical contact cleaner. |
| Intermittent Electrical Function | Loose or damaged wires | Inspect the wiring harness for any signs of damage or loose connections. Repair or replace as necessary. |
| Burnt Out Lights | Short circuit or overloaded circuit | Check for any short circuits in the wiring. Replace any burnt-out bulbs and ensure that the electrical load is within the rated capacity. |
| No Reverse Lights | Faulty wiring or connection | Inspect the wiring for the reverse lights and ensure that the connection to the 7 Way Trailer Plug is secure. |
If you encounter any issues that you cannot resolve, it is best to consult a professional to avoid potential hazards and ensure the safety of your towing setup.
Safety Tips for Using a 7 Way Trailer Plug
Safety should always be a top priority when towing a trailer. Here are some important safety tips to keep in mind when using a 7 Way Trailer Plug:
- Ensure Proper Connection: Always double-check that the 7 Way Trailer Plug is properly connected and secured before towing. Loose connections can cause electrical issues and potential safety hazards.
- Inspect Electrical Components: Regularly inspect the trailer's electrical components, including lights, brakes, and auxiliary devices, to ensure they are functioning correctly.
- Avoid Overloading: Do not exceed the rated capacity of the 7 Way Trailer Plug or the trailer's electrical system. Overloading can cause overheating and potential fires.
- Use Proper Grounding: Ensure that the ground connection is secure and properly grounded. A poor ground connection can cause electrical issues and potential hazards.
- Follow Manufacturer Guidelines: Always follow the manufacturer's guidelines for installation, maintenance, and usage of the 7 Way Trailer Plug and trailer electrical system.
By following these safety tips, you can ensure a safe and reliable towing experience.
In conclusion, the 7 Way Trailer Plug is a crucial component for connecting the electrical systems of your trailer to your towing vehicle. Understanding its functionality, types, installation, maintenance, and troubleshooting can help you ensure a safe and reliable towing experience. Regular inspections and proper care can extend the life of your 7 Way Trailer Plug and prevent potential electrical issues. Always prioritize safety and follow manufacturer guidelines to maintain a secure and efficient towing setup.
