500 Mcm Ampacity

Understanding the concept of 500 Mcm Ampacity is crucial for anyone involved in electrical engineering or electrical installations. Ampacity refers to the current-carrying capacity of a conductor, and it is a fundamental aspect of designing safe and efficient electrical systems. This blog post will delve into the specifics of 500 Mcm Ampacity, its importance, and how to calculate it accurately.

Table of Contents

What is Ampacity?

Ampacity, short for ampere capacity, is the maximum current that a conductor can carry continuously under specified conditions without exceeding its temperature rating. This rating is essential for ensuring that electrical conductors do not overheat, which could lead to insulation failure, short circuits, or even fires. The ampacity of a conductor is influenced by several factors, including the material of the conductor, its size, the ambient temperature, and the type of insulation.

Understanding 500 Mcm Conductors

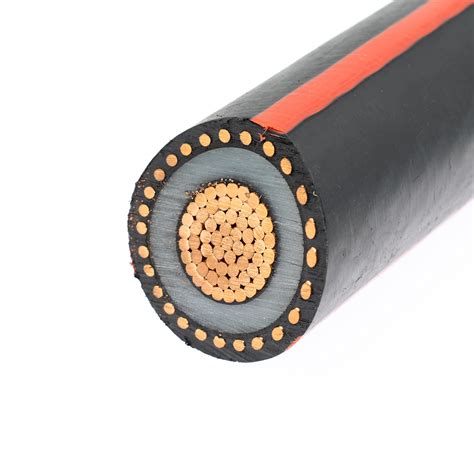

500 Mcm (thousand circular mils) conductors are large-diameter wires commonly used in high-current applications. These conductors are typically made of copper or aluminum and are designed to handle significant electrical loads. The size of a 500 Mcm conductor is crucial for determining its 500 Mcm Ampacity.

Factors Affecting 500 Mcm Ampacity

Several factors influence the 500 Mcm Ampacity of a conductor. Understanding these factors is essential for accurate calculations and safe installations.

Material: Copper and aluminum are the most common materials for electrical conductors. Copper has a higher conductivity than aluminum, which means it can carry more current for the same size. However, aluminum is often used in large conductors due to its lower cost and lighter weight.
Insulation Type: The type of insulation used on the conductor affects its ampacity. Different insulation materials have different temperature ratings, which in turn affect the current-carrying capacity.
Ambient Temperature: The surrounding temperature can significantly impact the ampacity of a conductor. Higher ambient temperatures reduce the conductor’s ability to dissipate heat, lowering its ampacity.
Installation Conditions: The way the conductor is installed, such as whether it is in free air, in a conduit, or bundled with other conductors, also affects its ampacity. Conduits and bundling can restrict heat dissipation, reducing the ampacity.

Calculating 500 Mcm Ampacity

Calculating the 500 Mcm Ampacity involves considering the factors mentioned above. The National Electrical Code (NEC) provides guidelines and tables for determining the ampacity of conductors based on these factors. Here is a step-by-step guide to calculating the 500 Mcm Ampacity:

Determine the Material: Identify whether the conductor is made of copper or aluminum.
Select the Insulation Type: Choose the appropriate insulation type based on the application and environmental conditions.
Consider the Ambient Temperature: Note the ambient temperature where the conductor will be installed.
Check the NEC Tables: Refer to the NEC tables for the ampacity of 500 Mcm conductors under the specified conditions.
Adjust for Installation Conditions: Apply any necessary adjustments based on the installation conditions, such as bundling or conduit fill.

For example, a 500 Mcm copper conductor with THHN insulation in an ambient temperature of 40°C (104°F) might have an ampacity of 555 amperes. However, if the conductor is installed in a conduit with other conductors, the ampacity might be reduced to account for the restricted heat dissipation.

🔍 Note: Always refer to the latest edition of the NEC for the most accurate and up-to-date ampacity values.

Importance of Accurate Ampacity Calculations

Accurate calculations of 500 Mcm Ampacity are vital for several reasons:

Safety: Overloading a conductor can cause it to overheat, leading to insulation failure and potential fires. Accurate ampacity calculations ensure that conductors are not overloaded, enhancing safety.
Efficiency: Properly sized conductors operate more efficiently, reducing energy losses and improving the overall performance of the electrical system.
Compliance: Adhering to NEC guidelines and accurate ampacity calculations ensure compliance with electrical codes and standards, which is essential for passing inspections and obtaining permits.

Common Applications of 500 Mcm Conductors

500 Mcm conductors are used in various high-current applications, including:

Industrial Power Distribution: Large industrial facilities often require high-current conductors to power machinery and equipment.
Commercial Buildings: High-rise buildings and large commercial complexes need robust electrical systems to support lighting, HVAC, and other critical systems.
Renewable Energy Systems: Solar and wind farms often use large conductors to transmit power from the generation site to the grid.
Data Centers: Data centers require reliable and high-capacity power distribution to support servers and other equipment.

Best Practices for Installing 500 Mcm Conductors

Installing 500 Mcm conductors requires careful planning and execution to ensure safety and efficiency. Here are some best practices to follow:

Proper Sizing: Ensure that the conductor size is appropriate for the current load and installation conditions.
Adequate Support: Use appropriate supports and fittings to prevent mechanical stress on the conductors.
Proper Connections: Make secure and reliable connections using appropriate terminations and connectors.
Ventilation: Ensure adequate ventilation to dissipate heat and prevent overheating.
Regular Inspections: Conduct regular inspections to check for any signs of wear, damage, or overheating.

🛠️ Note: Always follow manufacturer guidelines and local electrical codes when installing 500 Mcm conductors.

Conclusion

Understanding and accurately calculating 500 Mcm Ampacity is essential for designing safe and efficient electrical systems. By considering factors such as material, insulation type, ambient temperature, and installation conditions, engineers and electricians can ensure that conductors are properly sized and installed. This not only enhances safety but also improves the overall performance and reliability of the electrical system. Whether in industrial, commercial, or renewable energy applications, accurate ampacity calculations are crucial for compliance with electrical codes and standards, ensuring the longevity and efficiency of electrical installations.
