4 Stroke Engine Diagram

Understanding the inner workings of a 4 stroke engine is crucial for anyone interested in automotive mechanics or engineering. The 4 stroke engine diagram is a fundamental tool that helps visualize the four distinct phases of operation: intake, compression, combustion, and exhaust. This blog post will delve into the details of each phase, explain the importance of the 4 stroke engine diagram, and provide insights into how this engine type functions.

Table of Contents

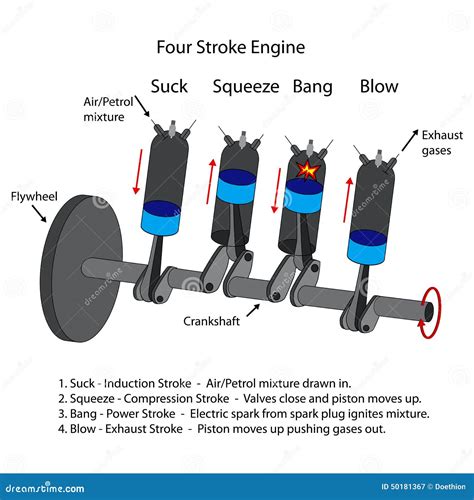

The Four Strokes of a 4 Stroke Engine

The 4 stroke engine, also known as a four-cycle engine, completes its power cycle in four separate strokes of the piston during two crankshaft revolutions. Each stroke corresponds to a specific phase of the engine's operation. Understanding these strokes is essential for grasping the overall functionality of the engine.

Intake Stroke

The intake stroke is the first phase of the 4 stroke engine cycle. During this stroke, the intake valve opens, allowing a mixture of air and fuel to enter the cylinder. The piston moves downward, creating a vacuum that draws the air-fuel mixture into the cylinder. This process is crucial for preparing the combustion chamber for the next phase.

Compression Stroke

In the compression stroke, the intake valve closes, and the piston moves upward, compressing the air-fuel mixture. This compression increases the pressure and temperature of the mixture, making it more combustible. The compression ratio, which is the ratio of the volume of the cylinder when the piston is at the bottom to the volume when the piston is at the top, is a critical factor in engine performance.

Combustion Stroke

The combustion stroke, also known as the power stroke, is where the actual combustion of the air-fuel mixture occurs. The spark plug ignites the compressed mixture, causing a rapid expansion of gases. This expansion forces the piston downward, generating mechanical power that is transferred to the crankshaft. The combustion stroke is the phase that produces the engine's power output.

Exhaust Stroke

The exhaust stroke is the final phase of the 4 stroke engine cycle. During this stroke, the exhaust valve opens, and the piston moves upward, expelling the spent gases from the cylinder. This process clears the cylinder in preparation for the next intake stroke, completing the cycle. The exhaust stroke is essential for maintaining the engine's efficiency and performance.

The Importance of a 4 Stroke Engine Diagram

A 4 stroke engine diagram is an invaluable tool for understanding the engine's operation. It provides a visual representation of the four strokes, making it easier to grasp the sequence of events and the interactions between different engine components. Here are some key points highlighting the importance of a 4 stroke engine diagram:

Visual Learning: Diagrams help visualize complex processes, making it easier to understand the engine's mechanics.
Troubleshooting: A diagram can assist in identifying and diagnosing engine problems by showing the relationships between different components.
Educational Tool: For students and enthusiasts, a 4 stroke engine diagram is an excellent educational resource for learning about engine operation.
Design and Development: Engineers use diagrams to design and develop new engine technologies, ensuring optimal performance and efficiency.

Components of a 4 Stroke Engine

To fully understand the 4 stroke engine diagram, it's essential to familiarize yourself with the key components of a 4 stroke engine. These components work together to complete the four strokes and generate power. Here are the primary components:

Piston: The piston moves up and down within the cylinder, compressing the air-fuel mixture and transferring the force of combustion to the crankshaft.
Cylinder: The cylinder is the chamber where the combustion process occurs. It houses the piston and provides a sealed environment for the air-fuel mixture.
Crankshaft: The crankshaft converts the linear motion of the piston into rotational motion, which is then used to power the vehicle.
Connecting Rod: The connecting rod links the piston to the crankshaft, transferring the force of combustion to the crankshaft.
Valves: The intake and exhaust valves control the flow of air-fuel mixture into the cylinder and the expulsion of exhaust gases.
Camshaft: The camshaft operates the valves, ensuring they open and close at the correct times during the engine cycle.
Spark Plug: The spark plug ignites the compressed air-fuel mixture, initiating the combustion process.

4 Stroke Engine Diagram: A Detailed Breakdown

A 4 stroke engine diagram typically includes all the key components mentioned above, along with arrows and labels indicating the direction of motion and the sequence of events. Here is a detailed breakdown of what you might see in a 4 stroke engine diagram:

🔍 Note: The following description assumes a standard 4 stroke engine diagram. Actual diagrams may vary based on the specific engine model and manufacturer.

Stroke	Piston Position	Valve Operation	Key Events
Intake	Downward	Intake valve open	Air-fuel mixture enters the cylinder
Compression	Upward	Both valves closed	Air-fuel mixture is compressed
Combustion	Downward	Both valves closed	Combustion occurs, piston is forced downward
Exhaust	Upward	Exhaust valve open	Exhaust gases are expelled

In the intake stroke, the piston moves downward, and the intake valve opens, allowing the air-fuel mixture to enter the cylinder. During the compression stroke, both valves are closed, and the piston moves upward, compressing the mixture. The combustion stroke begins with the spark plug igniting the mixture, causing the piston to move downward. Finally, in the exhaust stroke, the exhaust valve opens, and the piston moves upward, expelling the spent gases.

Applications of 4 Stroke Engines

4 stroke engines are widely used in various applications due to their efficiency, reliability, and environmental friendliness. Some of the most common applications include:

Automotive: Most modern cars and trucks use 4 stroke engines, which provide a good balance of power, fuel efficiency, and emissions control.
Motorcycles: Many motorcycles, especially those designed for street use, feature 4 stroke engines for their smooth operation and lower emissions.
Marine: 4 stroke engines are used in boats and other marine vessels for their reliability and fuel efficiency.
Aviation: Some small aircraft use 4 stroke engines for their lightweight and efficient design.
Generators: 4 stroke engines are commonly used in portable and standby generators for their consistent power output and low emissions.

Advantages and Disadvantages of 4 Stroke Engines

Like any engine type, 4 stroke engines have their advantages and disadvantages. Understanding these can help you make informed decisions about their use and maintenance.

Advantages

Fuel Efficiency: 4 stroke engines are generally more fuel-efficient than 2 stroke engines, making them a popular choice for vehicles and other applications.
Lower Emissions: Due to their separate exhaust stroke, 4 stroke engines produce fewer emissions, making them more environmentally friendly.
Smooth Operation: The four distinct strokes result in smoother operation and reduced vibration compared to 2 stroke engines.
Durability: 4 stroke engines are known for their durability and longevity, requiring less frequent maintenance.

Disadvantages

Complexity: The design of a 4 stroke engine is more complex than that of a 2 stroke engine, which can make repairs and maintenance more challenging.
Weight: 4 stroke engines are generally heavier than 2 stroke engines, which can be a disadvantage in applications where weight is a critical factor.
Cost: The increased complexity and additional components of a 4 stroke engine can make them more expensive to manufacture and maintain.

🛠️ Note: Regular maintenance, including oil changes and valve adjustments, is crucial for keeping a 4 stroke engine in optimal condition.

Maintenance Tips for 4 Stroke Engines

Proper maintenance is essential for ensuring the longevity and performance of a 4 stroke engine. Here are some key maintenance tips to keep your engine running smoothly:

Regular Oil Changes: Change the engine oil and oil filter at the recommended intervals to keep the engine lubricated and free of contaminants.
Air Filter Replacement: Replace the air filter regularly to ensure proper airflow and prevent debris from entering the engine.
Spark Plug Inspection: Inspect and replace spark plugs as needed to maintain efficient combustion and engine performance.
Valve Adjustments: Adjust the valves according to the manufacturer's specifications to ensure proper valve clearance and engine operation.
Cooling System Maintenance: Check the cooling system, including the radiator, water pump, and coolant levels, to prevent overheating and engine damage.

By following these maintenance tips, you can extend the life of your 4 stroke engine and ensure it operates at peak performance.

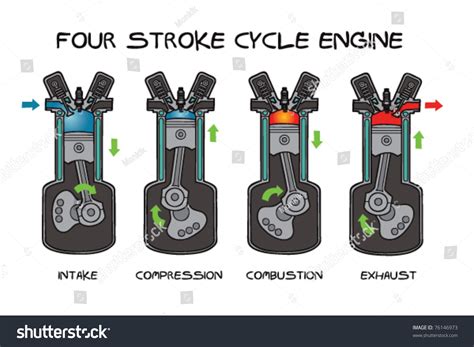

This image provides a visual representation of the 4 stroke engine cycle, illustrating the movement of the piston and the operation of the valves during each stroke.

Understanding the 4 stroke engine diagram and the operation of a 4 stroke engine is crucial for anyone involved in automotive mechanics, engineering, or simply interested in how engines work. By grasping the four distinct strokes and the key components involved, you can gain a deeper appreciation for the efficiency, reliability, and environmental benefits of 4 stroke engines. Whether you’re a student, enthusiast, or professional, the knowledge gained from studying a 4 stroke engine diagram can be invaluable in various applications and scenarios.
