Electrical wiring is a critical aspect of any construction or renovation project, and choosing the right type of wire is essential for ensuring safety and efficiency. One of the most commonly used types of wire in electrical installations is 4 Gauge Copper Wire. This wire is known for its durability, conductivity, and versatility, making it a popular choice for a variety of applications. In this post, we will delve into the specifics of 4 Gauge Copper Wire, its uses, benefits, and installation tips.
Understanding 4 Gauge Copper Wire

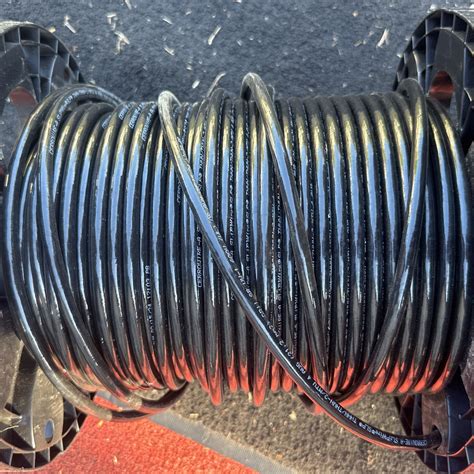

4 Gauge Copper Wire is a type of electrical wire that has a diameter of approximately 0.2043 inches. The gauge system used for measuring wire thickness is based on the American Wire Gauge (AWG) standard, where a lower gauge number indicates a thicker wire. Copper is preferred for electrical wiring due to its excellent conductivity, which allows for efficient transmission of electrical current.
4 Gauge Copper Wire is particularly suitable for high-current applications, such as those found in industrial settings, large appliances, and heavy-duty machinery. Its robust construction ensures that it can handle the demands of these applications without overheating or failing.
Applications of 4 Gauge Copper Wire
4 Gauge Copper Wire is used in a wide range of applications due to its ability to handle high currents and its durability. Some of the most common uses include:
- Industrial Machinery: Many industrial machines require a reliable power supply to function efficiently. 4 Gauge Copper Wire is often used in these settings to ensure that the machinery receives a steady and sufficient power supply.
- Large Appliances: Appliances such as electric ranges, dryers, and air conditioners often require a significant amount of power. 4 Gauge Copper Wire is ideal for these applications as it can handle the high current demands without overheating.
- Renewable Energy Systems: Solar and wind power systems often require thick wires to transmit the generated power efficiently. 4 Gauge Copper Wire is commonly used in these systems to ensure optimal performance.
- Electric Vehicle Charging Stations: With the rise of electric vehicles, there is an increasing demand for reliable and efficient charging stations. 4 Gauge Copper Wire is used in these stations to handle the high current required for fast charging.
Benefits of Using 4 Gauge Copper Wire
There are several benefits to using 4 Gauge Copper Wire in electrical installations. Some of the key advantages include:
- High Conductivity: Copper is an excellent conductor of electricity, which means that 4 Gauge Copper Wire can transmit electrical current efficiently with minimal loss.
- Durability: The thick gauge of the wire makes it highly durable and resistant to wear and tear, ensuring a long lifespan.
- Flexibility: Despite its thickness, 4 Gauge Copper Wire is flexible enough to be used in various applications, making it versatile for different installation needs.
- Safety: The robust construction of 4 Gauge Copper Wire reduces the risk of overheating and electrical fires, making it a safe choice for high-current applications.
Installation Tips for 4 Gauge Copper Wire
Installing 4 Gauge Copper Wire requires careful planning and execution to ensure safety and efficiency. Here are some tips to help you with the installation process:
- Plan the Route: Before beginning the installation, plan the route of the wire to avoid any obstacles and ensure that it is easily accessible for future maintenance.

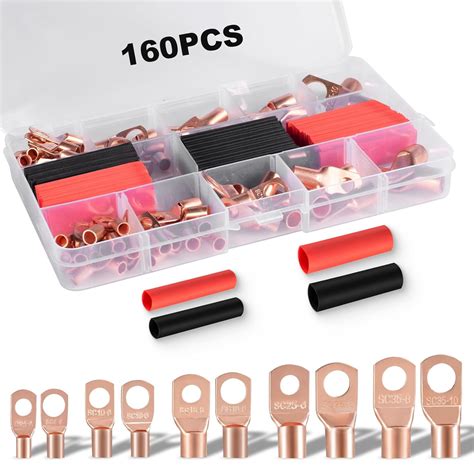

- Use Appropriate Connections: Ensure that you use connectors and terminals that are rated for the current and voltage of your application. This will help prevent overheating and potential electrical hazards.
- Secure the Wire: Use cable ties, clamps, or other securing methods to keep the wire in place and prevent it from moving or becoming damaged.
- Inspect for Damage: Regularly inspect the wire for any signs of damage, such as cuts, cracks, or corrosion. Replace any damaged sections immediately to maintain the integrity of the electrical system.
🔧 Note: Always follow local electrical codes and regulations when installing 4 Gauge Copper Wire to ensure compliance and safety.
Safety Precautions
Working with electrical wiring, especially high-current applications like those involving 4 Gauge Copper Wire, requires strict adherence to safety protocols. Here are some essential safety precautions to keep in mind:
- Turn Off Power: Always turn off the power supply before beginning any electrical work to prevent the risk of electric shock.
- Use Protective Gear: Wear appropriate protective gear, including insulated gloves, safety glasses, and non-conductive footwear, to protect yourself from electrical hazards.
- Avoid Overloading: Ensure that the wire is not overloaded beyond its rated capacity to prevent overheating and potential fires.

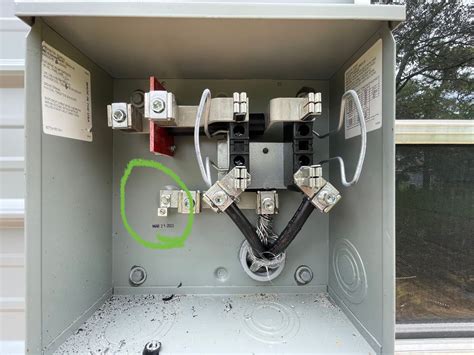

- Grounding: Properly ground all electrical components to provide a safe path for any stray currents and reduce the risk of electrical shock.
⚠️ Note: If you are not experienced in electrical work, it is advisable to hire a licensed electrician to handle the installation of 4 Gauge Copper Wire.
Maintenance and Troubleshooting
Maintaining 4 Gauge Copper Wire is crucial for ensuring its longevity and reliability. Regular inspections and timely repairs can prevent potential issues and extend the lifespan of the wire. Here are some maintenance tips and troubleshooting steps:
- Regular Inspections: Conduct regular visual inspections of the wire to check for any signs of damage, such as cuts, cracks, or corrosion.
- Cleaning: Keep the wire clean and free from dust and debris to ensure optimal performance.
- Tightening Connections: Periodically check and tighten all connections to ensure they are secure and free from corrosion.
- Replacing Damaged Sections: If you find any damaged sections of the wire, replace them immediately to prevent further damage and potential hazards.
If you encounter any issues with your 4 Gauge Copper Wire, such as overheating or intermittent power supply, follow these troubleshooting steps:
- Check Connections: Ensure that all connections are secure and free from corrosion.
- Inspect for Damage: Look for any signs of damage to the wire, such as cuts, cracks, or corrosion.
- Test the Wire: Use a multimeter to test the continuity and resistance of the wire to identify any potential issues.
- Consult a Professional: If you are unable to identify or resolve the issue, consult a licensed electrician for assistance.
🛠️ Note: Always follow the manufacturer's guidelines for maintenance and troubleshooting to ensure the safety and reliability of your 4 Gauge Copper Wire.
Comparing 4 Gauge Copper Wire with Other Gauges
When choosing the right gauge of copper wire for your application, it's essential to understand the differences between various gauges. Here is a comparison of 4 Gauge Copper Wire with other common gauges:
| Gauge | Diameter (inches) | Current Capacity (Amps) | Typical Applications |
|---|---|---|---|
| 4 | 0.2043 | 70-85 | Industrial machinery, large appliances, renewable energy systems |
| 6 | 0.1620 | 55-65 | Electric ranges, dryers, air conditioners |
| 8 | 0.1285 | 40-50 | Washing machines, dishwashers, water heaters |
| 10 | 0.1019 | 30-35 | Lighting circuits, small appliances, power tools |
As shown in the table, 4 Gauge Copper Wire has a higher current capacity compared to smaller gauges, making it suitable for high-current applications. However, it is essential to choose the appropriate gauge based on the specific requirements of your project to ensure safety and efficiency.
🔍 Note: Always consult the National Electrical Code (NEC) or local electrical codes to determine the appropriate gauge for your specific application.
Environmental Considerations
When working with 4 Gauge Copper Wire, it is essential to consider the environmental impact of copper mining and production. Copper is a non-renewable resource, and its extraction can have significant environmental consequences, including deforestation, water pollution, and soil degradation. To mitigate these impacts, consider the following:
- Recycling: Recycle old copper wire and other copper products to reduce the demand for newly mined copper.
- Sustainable Practices: Support companies that follow sustainable mining and production practices to minimize environmental impact.
- Energy Efficiency: Use energy-efficient appliances and devices to reduce the overall demand for electrical power, thereby reducing the need for copper wire.
By taking these steps, you can help minimize the environmental impact of using 4 Gauge Copper Wire while still benefiting from its excellent conductivity and durability.
🌿 Note: Always dispose of old copper wire and other electrical components responsibly to minimize environmental impact.
In conclusion, 4 Gauge Copper Wire is a versatile and reliable choice for high-current electrical applications. Its excellent conductivity, durability, and flexibility make it suitable for a wide range of uses, from industrial machinery to renewable energy systems. By following proper installation, maintenance, and safety protocols, you can ensure the longevity and reliability of your 4 Gauge Copper Wire installations. Always consult local electrical codes and regulations to ensure compliance and safety, and consider the environmental impact of copper production to promote sustainable practices.
