4/0 Aluminum Wire Ampacity

Understanding the 4/0 Aluminum Wire Ampacity is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. This type of wire is commonly used in residential, commercial, and industrial settings due to its high conductivity and durability. However, knowing the ampacity of 4/0 aluminum wire is essential for ensuring safety and compliance with electrical codes.

Table of Contents

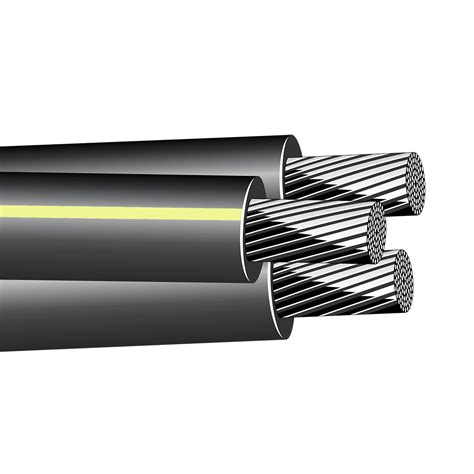

What is ⁴⁄₀ Aluminum Wire?

⁴⁄₀ aluminum wire is a type of electrical conductor made from aluminum. The “⁴⁄₀” designation refers to the wire’s gauge, which indicates its diameter and current-carrying capacity. Aluminum wire is preferred in many applications because it is lighter and more cost-effective than copper wire, making it an economical choice for long runs of wiring.

Understanding Ampacity

Ampacity, short for ampere capacity, refers to the maximum current, in amperes, that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. For ⁴⁄₀ aluminum wire, the ampacity is determined by several factors, including the wire’s insulation type, ambient temperature, and the number of conductors bundled together.

Factors Affecting ⁴⁄₀ Aluminum Wire Ampacity

Several factors influence the ampacity of ⁴⁄₀ aluminum wire. Understanding these factors is essential for ensuring safe and efficient electrical installations.

Insulation Type: The type of insulation on the wire affects its ampacity. Common insulation types include THHN, THWN, and XHHW, each with different temperature ratings.
Ambient Temperature: The surrounding temperature can impact the wire's ability to dissipate heat. Higher ambient temperatures reduce the wire's ampacity.
Number of Conductors: Bundling multiple conductors together can increase the overall temperature, reducing the ampacity of each individual wire.
Conduit Fill: The amount of space available within a conduit can affect heat dissipation. Overcrowded conduits can lead to higher temperatures and reduced ampacity.

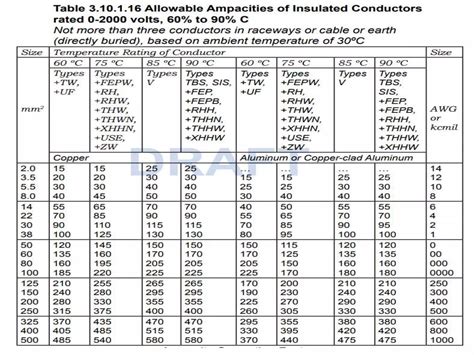

⁴⁄₀ Aluminum Wire Ampacity Chart

To determine the ampacity of ⁴⁄₀ aluminum wire, you can refer to the following chart. This chart provides ampacity values for different insulation types and ambient temperatures.

Insulation Type	Ambient Temperature (°C)	Ampacity (Amperes)
THHN	30	230
THHN	40	210
THWN	30	230
THWN	40	210
XHHW	30	250
XHHW	40	230

🔍 Note: The ampacity values in this chart are based on standard conditions and may vary depending on specific installation conditions. Always consult the National Electrical Code (NEC) or local electrical codes for precise ampacity ratings.

Installation Considerations

When installing ⁴⁄₀ aluminum wire, several considerations can affect its performance and safety. Proper installation practices ensure that the wire operates within its ampacity limits.

Conduit Sizing: Ensure that the conduit is appropriately sized to allow for adequate heat dissipation. Overcrowded conduits can lead to overheating and reduced ampacity.
Bending Radius: Maintain the correct bending radius to prevent kinking or damaging the wire, which can affect its conductivity and ampacity.
Termination Methods: Use proper termination methods, such as compression connectors or lugs, to ensure a secure and reliable connection. Poor terminations can lead to overheating and reduced ampacity.
Grounding: Proper grounding is essential for safety and to ensure that the electrical system operates correctly. Grounding helps dissipate any stray currents and prevents electrical hazards.

Safety Precautions

Working with ⁴⁄₀ aluminum wire requires adherence to safety precautions to prevent electrical hazards and ensure a safe working environment.

Personal Protective Equipment (PPE): Wear appropriate PPE, including insulated gloves, safety glasses, and protective clothing, to protect against electrical shocks and burns.
Proper Tools: Use insulated tools designed for electrical work to minimize the risk of electrical shock.
Lockout/Tagout Procedures: Follow lockout/tagout procedures to ensure that the electrical system is de-energized before beginning work. This prevents accidental energization and potential hazards.
Regular Inspections: Conduct regular inspections of the electrical system to identify and address any potential issues, such as overheating, loose connections, or damaged insulation.

⚠️ Note: Always follow local electrical codes and regulations when installing or working with 4/0 aluminum wire. Non-compliance can result in fines, penalties, and potential safety hazards.

Common Applications of ⁴⁄₀ Aluminum Wire

⁴⁄₀ aluminum wire is used in a variety of applications due to its high conductivity and durability. Some common applications include:

Residential Wiring: Used in residential settings for main service entrance conductors, subpanels, and large appliances.
Commercial Wiring: Utilized in commercial buildings for power distribution, lighting circuits, and equipment connections.
Industrial Wiring: Employed in industrial settings for motor circuits, control panels, and heavy machinery.
Renewable Energy Systems: Used in solar and wind power systems for connecting panels, inverters, and batteries.

Maintenance and Troubleshooting

Maintaining ⁴⁄₀ aluminum wire and troubleshooting any issues that arise is essential for ensuring the longevity and reliability of the electrical system.

Regular Inspections: Conduct regular visual inspections to check for signs of wear, damage, or overheating.
Thermal Imaging: Use thermal imaging cameras to detect hot spots and potential issues before they become critical.
Connection Checks: Regularly inspect and tighten connections to ensure they are secure and free of corrosion.
Environmental Factors: Protect the wire from environmental factors such as moisture, chemicals, and physical damage.

🛠️ Note: If you encounter any issues with 4/0 aluminum wire, such as overheating or loose connections, address them promptly to prevent further damage and potential hazards.

In summary, understanding the ⁴⁄₀ Aluminum Wire Ampacity is vital for ensuring safe and efficient electrical installations. By considering factors such as insulation type, ambient temperature, and installation practices, you can determine the appropriate ampacity for your specific application. Always follow safety precautions and local electrical codes to ensure a safe working environment and reliable electrical system.
