3D Print Teseract

Embarking on the journey of creating a 3D Print Teseract is an exciting venture that combines the realms of mathematics, art, and technology. A tesseract, also known as a hypercube, is a four-dimensional analog of a cube. While it's impossible to visualize a tesseract in its entirety, we can create 3D projections that offer a glimpse into this fascinating geometric shape. This guide will walk you through the process of designing and 3D printing a tesseract, from conceptualization to the final printed model.

Understanding the Tesseract

A tesseract is a four-dimensional object with eight cubic “cells.” To visualize it, imagine a cube within a cube, where the inner cube is rotated 90 degrees relative to the outer cube. This rotation helps in understanding the four-dimensional nature of the tesseract. The 3D printable model will be a projection of this four-dimensional shape into three dimensions.

Designing the Tesseract

Designing a 3D Print Teseract involves creating a 3D model that represents the tesseract’s structure. There are several software tools available for this purpose, but some of the most popular ones include:

• Blender
• Tinkercad
• Fusion 360

For beginners, Tinkercad is an excellent choice due to its user-friendly interface and ease of use. More advanced users might prefer Blender or Fusion 360 for their extensive features and customization options.

Step-by-Step Guide to Designing a Tesseract in Tinkercad

Here is a step-by-step guide to designing a tesseract in Tinkercad:

1. Open Tinkercad and create a new design.
2. Use the “Box” shape to create the outer cube. Adjust the dimensions to your desired size.
3. Duplicate the outer cube and rotate it 90 degrees around the Y-axis. This will create the inner cube.
4. Position the inner cube inside the outer cube, ensuring they are aligned correctly.
5. Use the “Group” function to combine the two cubes into a single object.
6. Duplicate the grouped object and rotate it 90 degrees around the X-axis. This will create the second set of cubes.
7. Position the second set of cubes inside the first set, ensuring they are aligned correctly.
8. Use the “Group” function again to combine all the cubes into a single object.
9. Adjust the dimensions and positions as needed to achieve the desired tesseract shape.

Once you have completed the design, you can export it as an STL file, which is the standard format for 3D printing.

💡 Note: Ensure that all parts of the tesseract are properly aligned and grouped to avoid issues during the 3D printing process.

Preparing for 3D Printing

Before you can print your 3D Print Teseract, you need to prepare the model for printing. This involves slicing the model, which converts the 3D design into instructions for the 3D printer. Popular slicing software includes:

• Cura
• PrusaSlicer
• Simplify3D

Here is a step-by-step guide to slicing your tesseract model in Cura:

1. Open Cura and import your STL file.
2. Select the appropriate printer profile and material settings.
3. Adjust the layer height, infill, and support settings as needed. For a detailed model like a tesseract, a lower layer height and higher infill percentage may be necessary.
4. Preview the slicing results to ensure there are no issues with the model.
5. Slice the model and save the G-code file.

Once the slicing is complete, you can transfer the G-code file to your 3D printer and begin the printing process.

💡 Note: Always perform a test print with a smaller model to ensure your settings are correct before printing the entire tesseract.

3D Printing the Tesseract

Printing a 3D Print Teseract can be a time-consuming process, depending on the size and complexity of the model. Here are some tips to ensure a successful print:

• Use a stable and level print bed to prevent warping and ensure good adhesion.
• Apply a suitable adhesive, such as glue stick or hairspray, to the print bed to improve adhesion.
• Monitor the print closely, especially during the initial layers, to catch any issues early.
• Consider using supports for overhanging parts to ensure they print correctly.

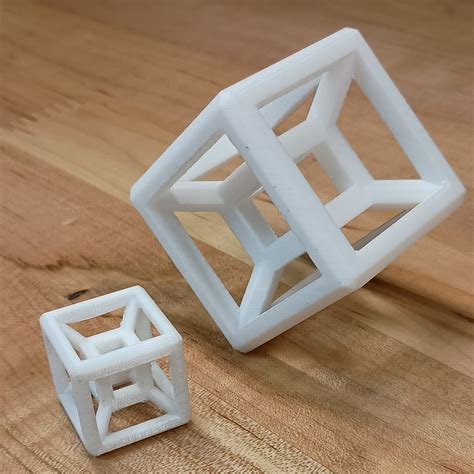

Once the printing is complete, carefully remove the tesseract from the print bed and clean any support material or excess filament.

Post-Processing the Tesseract

After printing, you may want to post-process your 3D Print Teseract to enhance its appearance and durability. Here are some post-processing techniques you can use:

• Sand the model to smooth out any rough edges or layers.
• Apply primer and paint to give the tesseract a finished look.
• Use clear coat to protect the paint and give the model a glossy finish.

Post-processing can significantly improve the aesthetic appeal of your tesseract, making it a stunning addition to your collection.

Exploring Variations of the Tesseract

Once you have mastered the basic design and printing of a tesseract, you can explore variations and more complex models. Here are some ideas to inspire your next project:

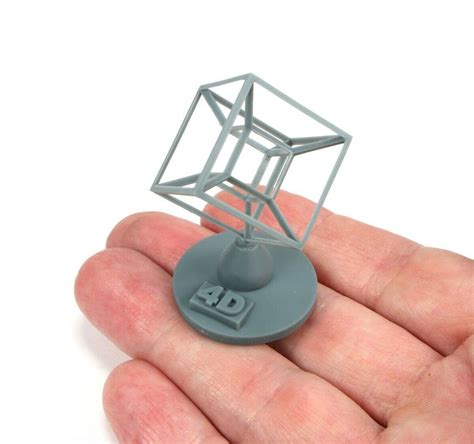

• Rotating Tesseract: Create a model where the inner cube rotates within the outer cube, giving a dynamic visual effect.
• Colored Tesseract: Use different colors for the inner and outer cubes to highlight the four-dimensional structure.
• Hollow Tesseract: Design a hollow tesseract to reduce material usage and printing time.

Each variation offers a unique challenge and opportunity to learn more about 3D modeling and printing.

Tesseract Dimensions and Scaling

When designing a 3D Print Teseract, it’s important to consider the dimensions and scaling of the model. The table below provides a guide to common tesseract dimensions and their corresponding scaling factors:

Adjust the dimensions and scaling factors according to your specific needs and the capabilities of your 3D printer.

💡 Note: Always ensure that the dimensions of your tesseract model are within the printing capabilities of your 3D printer to avoid issues during the printing process.

Creating a 3D Print Teseract is a rewarding experience that combines creativity, technical skill, and a deep understanding of geometry. By following the steps outlined in this guide, you can design, print, and post-process your own tesseract model, adding a unique and fascinating piece to your collection. The process of creating a tesseract not only enhances your 3D modeling and printing skills but also provides a deeper appreciation for the complexities of four-dimensional space.
