Electrical wiring is a critical aspect of any construction or renovation project. Among the various types of wires available, 30 Gauge Wire stands out for its specific applications and benefits. This wire, known for its thin diameter, is commonly used in low-voltage and low-current applications. Understanding the properties, uses, and installation techniques of 30 Gauge Wire can help ensure the success of your electrical projects.
Understanding 30 Gauge Wire
30 Gauge Wire is a thin, flexible wire typically used in applications where space is limited and current requirements are low. The gauge system measures the diameter of the wire, with higher gauge numbers indicating thinner wires. 30 Gauge Wire is particularly suitable for delicate electronics and small appliances due to its fine diameter.
Properties of 30 Gauge Wire
30 Gauge Wire has several key properties that make it ideal for specific applications:
- Diameter: The wire has a very thin diameter, making it flexible and easy to work with in tight spaces.
- Current Carrying Capacity: Due to its thinness, 30 Gauge Wire can only handle low currents, typically up to 0.5 amperes.
- Voltage Rating: It is often rated for low voltages, making it suitable for electronic circuits and small appliances.
- Material: Commonly made from copper or copper-clad aluminum, ensuring good conductivity.
Applications of 30 Gauge Wire
30 Gauge Wire is versatile and finds use in various applications:
- Electronics: Ideal for connecting small electronic components, such as LEDs, sensors, and microcontrollers.
- Model Railroading: Used for wiring model trains and other miniature models due to its small size.
- Automotive: Suitable for wiring small automotive components like dashboard lights and sensors.

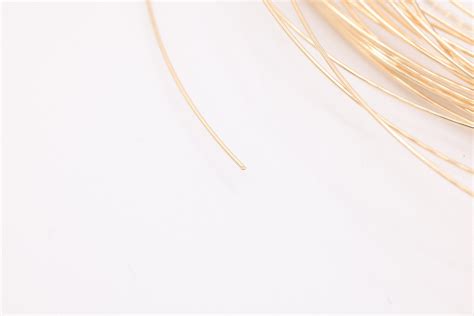

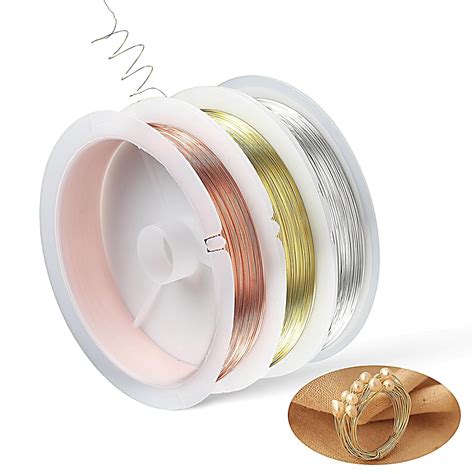

- Jewelry Making: Often used in the creation of wearable electronics and LED jewelry.
Installation Tips for 30 Gauge Wire
Installing 30 Gauge Wire requires careful handling due to its thinness. Here are some tips to ensure a successful installation:
- Use Appropriate Tools: Use fine-tipped pliers and wire strippers designed for small gauge wires to avoid damaging the wire.
- Strip Carefully: Strip only the necessary amount of insulation to expose the conductor. Be cautious not to nick or cut the wire.
- Secure Connections: Use small connectors or soldering to secure the wire to components. Ensure the connections are tight and secure.
- Avoid Kinks: Handle the wire gently to prevent kinks and breaks, which can compromise the electrical connection.
🔧 Note: Always ensure that the wire is properly insulated to prevent short circuits and electrical hazards.
Safety Precautions
Working with electrical wires, including 30 Gauge Wire, requires adherence to safety guidelines:
- Turn Off Power: Always turn off the power supply before working on any electrical wiring.
- Use Insulated Tools: Use insulated tools to minimize the risk of electrical shock.
- Avoid Overloading: Do not exceed the current-carrying capacity of the wire to prevent overheating and potential fires.
- Proper Disposal: Dispose of old or damaged wires responsibly to avoid environmental hazards.
⚠️ Note: If you are unsure about any aspect of electrical wiring, consult a professional electrician to ensure safety.
Common Mistakes to Avoid
When working with 30 Gauge Wire, it's essential to avoid common mistakes that can lead to failures or hazards:
- Overloading the Wire: Exceeding the current-carrying capacity can cause the wire to overheat and potentially start a fire.
- Improper Stripping: Stripping too much insulation or damaging the wire can lead to poor connections and electrical issues.
- Inadequate Insulation: Failing to properly insulate the wire can result in short circuits and electrical hazards.
- Poor Connections: Loose or poorly secured connections can cause intermittent failures and potential safety risks.
🛑 Note: Regularly inspect your wiring to ensure it remains in good condition and address any issues promptly.
Comparing 30 Gauge Wire with Other Gauges
Understanding how 30 Gauge Wire compares to other gauges can help you choose the right wire for your project. Here is a comparison table:
| Gauge | Diameter (mm) | Current Carrying Capacity (Amperes) | Typical Applications |
|---|---|---|---|
| 22 Gauge | 0.644 | 7 | Speakers, low-voltage lighting |
| 24 Gauge | 0.511 | 4 | Telephone wiring, low-voltage controls |
| 26 Gauge | 0.406 | 2 | Automotive wiring, small appliances |
| 30 Gauge | 0.254 | 0.5 | Electronics, model railroading, jewelry making |
Conclusion
30 Gauge Wire is a specialized wire with unique properties that make it ideal for low-voltage and low-current applications. Its thin diameter and flexibility make it suitable for delicate electronics, model railroading, automotive components, and jewelry making. Understanding its properties, proper installation techniques, and safety precautions is crucial for successful projects. By following the guidelines and avoiding common mistakes, you can ensure that your electrical wiring projects are safe and effective.
