In the realm of home automation and smart lighting, the 3 Way Dimmer Switch stands out as a versatile and essential component. This device allows users to control the brightness of their lights from two different locations, offering convenience and flexibility. Whether you're upgrading your home's lighting system or simply looking to enhance your living space, understanding the intricacies of a 3 Way Dimmer Switch can be incredibly beneficial.
Understanding the 3 Way Dimmer Switch
A 3 Way Dimmer Switch is a specialized type of dimmer switch designed to work with a three-way wiring configuration. This setup typically involves two switches controlling a single light fixture from two different locations. The 3 Way Dimmer Switch allows you to adjust the brightness of the light from either switch, providing a seamless and intuitive lighting experience.
Components of a 3 Way Dimmer Switch
To fully grasp how a 3 Way Dimmer Switch operates, it's important to understand its key components:
- Dimmer Switch: The primary component that controls the brightness of the light.
- Traveler Wires: These wires connect the two switches, allowing them to communicate and control the light fixture together.
- Common Wire: This wire connects the light fixture to one of the switches, completing the circuit.
- Ground Wire: Ensures safety by providing a path for electrical current to flow to the ground in case of a short circuit.
Installing a 3 Way Dimmer Switch
Installing a 3 Way Dimmer Switch involves several steps. Here’s a detailed guide to help you through the process:
Tools and Materials Needed
- 3 Way Dimmer Switch
- Standard 3 Way Switch
- Screwdriver
- Wire Stripper
- Wire Nuts
- Voltage Tester
Step-by-Step Installation
Before beginning, ensure that the power to the circuit is turned off at the main electrical panel. Use a voltage tester to confirm that the wires are not live.

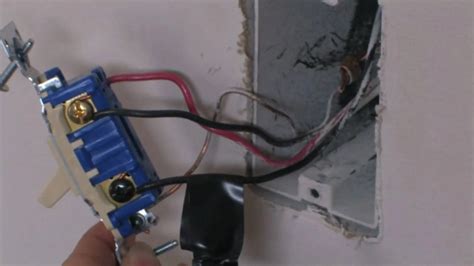

- Remove the Old Switches: Carefully remove the faceplates and screws from the existing switches. Pull the switches out of the wall box and disconnect the wires.
- Identify the Wires: Identify the common wire (usually black), the traveler wires (usually red and black), and the ground wire (usually bare or green).
- Connect the Wires to the Dimmer Switch: Connect the common wire to the black screw on the dimmer switch. Connect one traveler wire to the red screw and the other traveler wire to the black screw. Connect the ground wire to the green screw.
- Install the Dimmer Switch: Place the dimmer switch back into the wall box and secure it with screws. Attach the faceplate.
- Connect the Standard Switch: Connect the wires to the standard 3 way switch in the same manner as the dimmer switch. Place the switch back into the wall box and secure it with screws. Attach the faceplate.
- Restore Power: Turn the power back on at the main electrical panel and test the switches to ensure they are working correctly.
🛠️ Note: Always follow safety guidelines when working with electrical components. If you are unsure about any step, consult a licensed electrician.
Benefits of Using a 3 Way Dimmer Switch
The 3 Way Dimmer Switch offers several advantages over traditional switches:
- Convenience: Allows you to control the brightness of your lights from two different locations, enhancing convenience and flexibility.
- Energy Efficiency: By adjusting the brightness, you can reduce energy consumption and lower your electricity bills.
- Ambiance Control: Creates the perfect lighting atmosphere for any occasion, whether it's a cozy dinner or a lively gathering.
- Safety: Reduces the risk of accidents by providing better visibility and control over lighting.
Types of 3 Way Dimmer Switches
There are various types of 3 Way Dimmer Switches available, each designed to meet different needs and preferences:
- Single-Pole Dimmer Switch: Controls a single light fixture from one location.
- 3 Way Dimmer Switch: Controls a single light fixture from two locations.
- 4 Way Dimmer Switch: Controls a single light fixture from three or more locations.

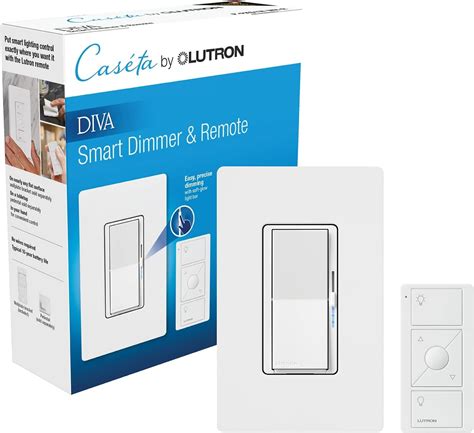

- Smart Dimmer Switch: Offers advanced features such as remote control, voice activation, and integration with smart home systems.
Choosing the Right 3 Way Dimmer Switch
Selecting the right 3 Way Dimmer Switch depends on several factors:
- Compatibility: Ensure the dimmer switch is compatible with your existing wiring and light fixtures.
- Features: Consider additional features such as remote control, voice activation, and smart home integration.
- Budget: Determine your budget and choose a dimmer switch that offers the best value for your money.
- Brand Reputation: Opt for a reputable brand known for quality and reliability.
Troubleshooting Common Issues
Even with proper installation, you may encounter issues with your 3 Way Dimmer Switch. Here are some common problems and their solutions:
| Issue | Solution |
|---|---|
| Switch Not Working | Check the wiring connections and ensure the power is turned on. |
| Light Flickering | Ensure the dimmer switch is compatible with the light fixture and check for loose wires. |
| Dimmer Not Responding | Reset the dimmer switch by turning it off and on again. If the problem persists, consult the manufacturer's instructions. |
🛠️ Note: If you encounter persistent issues, it may be best to consult a licensed electrician for professional assistance.
In conclusion, the 3 Way Dimmer Switch is a valuable addition to any home, offering convenience, energy efficiency, and enhanced ambiance control. By understanding its components, installation process, and benefits, you can make an informed decision and enjoy the advantages of this versatile lighting solution. Whether you’re upgrading your home’s lighting system or simply looking to enhance your living space, a 3 Way Dimmer Switch can provide the flexibility and control you need to create the perfect lighting atmosphere.
