Understanding the intricacies of electrical systems is crucial for engineers, technicians, and enthusiasts alike. One of the fundamental concepts in this field is the 3 Phase Power Equation. This equation is essential for calculating the power in three-phase electrical systems, which are commonly used in industrial and commercial settings due to their efficiency and reliability.
What is a 3 Phase Power System?
A three-phase power system is a type of electrical power system that uses three alternating currents. These currents are out of phase with each other by 120 degrees. This configuration allows for more efficient power transmission and utilization compared to single-phase systems. The three phases are typically labeled as L1, L2, and L3, and they can be connected in either a delta (Δ) or wye (Y) configuration.
Understanding the 3 Phase Power Equation
The 3 Phase Power Equation is used to calculate the total power in a three-phase system. The equation varies depending on whether the system is balanced or unbalanced and whether it is in a delta or wye configuration. For a balanced three-phase system, the power can be calculated using the following formulas:
Balanced Three-Phase System
For a balanced three-phase system, the total power (P) can be calculated using the line voltage (VL) and line current (IL). The formula for total power in a balanced three-phase system is:
P = √3 * VL * IL * cos(φ)
Where:
- P is the total power in watts (W).
- VL is the line voltage in volts (V).
- IL is the line current in amperes (A).
- cos(φ) is the power factor, which is the ratio of the real power to the apparent power.
Unbalanced Three-Phase System
For an unbalanced three-phase system, the calculation is more complex because the currents and voltages in each phase are not equal. In such cases, the power in each phase must be calculated separately and then summed to find the total power. The formula for each phase is:
P = V * I * cos(φ)
Where:
- P is the power in watts (W) for each phase.
- V is the phase voltage in volts (V).
- I is the phase current in amperes (A).
- cos(φ) is the power factor for each phase.
The total power is then the sum of the powers in each phase:
P_total = P1 + P2 + P3
Delta (Δ) vs. Wye (Y) Configuration
The configuration of the three-phase system—whether it is delta (Δ) or wye (Y)—affects how the 3 Phase Power Equation is applied. In a delta configuration, the phases are connected in a closed loop, while in a wye configuration, one end of each phase is connected to a common point (neutral).
Delta (Δ) Configuration
In a delta configuration, the line voltage (VL) is equal to the phase voltage (VP), and the line current (IL) is √3 times the phase current (IP). The 3 Phase Power Equation for a delta configuration is:
P = 3 * VP * IP * cos(φ)
Where:
- VP is the phase voltage in volts (V).
- IP is the phase current in amperes (A).
Wye (Y) Configuration

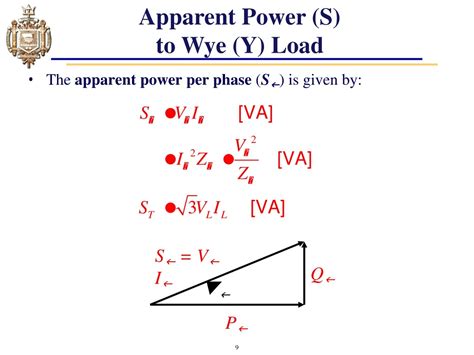

In a wye configuration, the line voltage (VL) is √3 times the phase voltage (VP), and the line current (IL) is equal to the phase current (IP). The 3 Phase Power Equation for a wye configuration is:
P = √3 * VL * IL * cos(φ)
Power Factor and Its Importance
The power factor (cos(φ)) is a critical component of the 3 Phase Power Equation. It represents the ratio of the real power (the power actually used to do work) to the apparent power (the product of the voltage and current). A high power factor indicates efficient use of electrical power, while a low power factor indicates inefficiency.
Improving the power factor can lead to:
- Reduced energy costs.
- Lowered peak demand charges.
- Improved voltage stability.
- Reduced losses in the distribution system.
Calculating Power in a Three-Phase System
To calculate the power in a three-phase system, follow these steps:
- Determine the configuration of the system (delta or wye).
- Measure the line voltage (VL) and line current (IL).
- Determine the power factor (cos(φ)).
- Apply the appropriate 3 Phase Power Equation based on the configuration and whether the system is balanced or unbalanced.
💡 Note: Ensure that all measurements are accurate and that the power factor is correctly determined for precise calculations.
Example Calculation
Let’s consider an example of a balanced three-phase system with the following parameters:
- Line voltage (VL) = 400 V
- Line current (IL) = 10 A
- Power factor (cos(φ)) = 0.85
The total power (P) can be calculated as follows:
P = √3 * VL * IL * cos(φ)
P = √3 * 400 V * 10 A * 0.85
P = 5796.4 W
Applications of the 3 Phase Power Equation
The 3 Phase Power Equation is widely used in various applications, including:
- Industrial machinery and equipment.
- Commercial buildings and facilities.
- Power generation and distribution systems.
- Electric motors and generators.
Understanding and applying the 3 Phase Power Equation is essential for designing, operating, and maintaining these systems efficiently.
In summary, the 3 Phase Power Equation is a fundamental tool for calculating power in three-phase electrical systems. Whether dealing with balanced or unbalanced systems, delta or wye configurations, or different power factors, this equation provides the necessary framework for accurate power calculations. By mastering this equation, engineers and technicians can ensure the efficient and reliable operation of three-phase power systems, leading to cost savings and improved performance.
