3 Amp Fuse Hvac

Understanding the importance of a 3 Amp Fuse HVAC system is crucial for anyone involved in heating, ventilation, and air conditioning (HVAC) maintenance or installation. This component plays a vital role in protecting the electrical circuits of HVAC systems from overcurrent situations, which can cause significant damage if left unchecked. This blog post will delve into the specifics of a 3 Amp Fuse HVAC, its functions, types, and how to properly maintain and replace it.

Table of Contents

Understanding the 3 Amp Fuse HVAC

A 3 Amp Fuse HVAC is a type of fuse designed to protect electrical circuits in HVAC systems. Fuses are safety devices that interrupt the flow of electrical current when it exceeds a safe level, preventing overheating and potential fires. The 3 Amp Fuse HVAC is specifically rated to handle up to 3 amperes of current, making it suitable for low-power HVAC components.

Types of Fuses in HVAC Systems

There are several types of fuses used in HVAC systems, each with its own characteristics and applications. The most common types include:

Glass Fuses: These are the most basic type of fuse, consisting of a glass tube containing a thin wire that melts when the current exceeds the fuse's rating.
Cylindrical Fuses: These fuses are similar to glass fuses but are enclosed in a ceramic or plastic body, providing better insulation and durability.

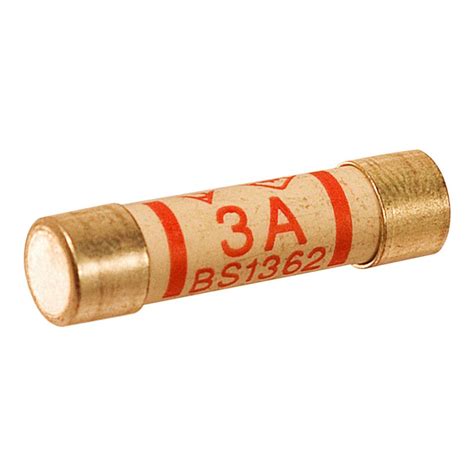

Cartridge Fuses: These are larger and more robust, often used in higher-power applications. They come in various sizes and ratings, including the 3 Amp Fuse HVAC.

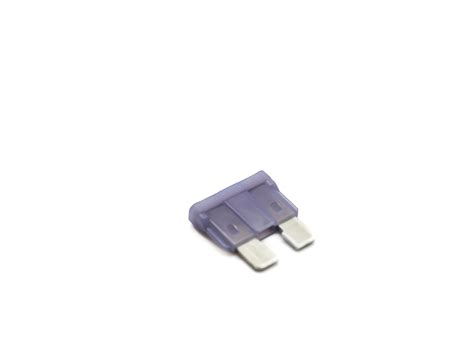

Blade Fuses: These are commonly found in automotive and some HVAC applications. They have a flat, blade-like design that fits into a specific fuse holder.

Importance of the 3 Amp Fuse HVAC

The 3 Amp Fuse HVAC is essential for several reasons:

Protection Against Overcurrent: It prevents excessive current from damaging sensitive components in the HVAC system.
Safety: By interrupting the current flow, it reduces the risk of electrical fires and other hazards.
System Reliability: Properly functioning fuses ensure that the HVAC system operates reliably and efficiently.

How to Replace a 3 Amp Fuse HVAC

Replacing a 3 Amp Fuse HVAC is a straightforward process, but it requires careful attention to safety. Here are the steps to follow:

Turn Off Power: Before beginning, turn off the power to the HVAC system at the circuit breaker or fuse box.
Locate the Fuse: Identify the fuse holder for the 3 Amp Fuse HVAC. This is usually located near the control board or the main power supply.
Remove the Old Fuse: Use a fuse puller or needle-nose pliers to carefully remove the old fuse. Inspect it to see if it is blown.
Insert the New Fuse: Insert the new 3 Amp Fuse HVAC into the holder, ensuring it is properly seated and aligned.
Restore Power: Turn the power back on and test the HVAC system to ensure it is functioning correctly.

🔧 Note: Always use a fuse with the correct amperage rating. Using a fuse with a higher rating can lead to overcurrent situations, while a lower rating may cause the fuse to blow frequently.

Maintenance Tips for 3 Amp Fuse HVAC

Regular maintenance of the 3 Amp Fuse HVAC is essential to ensure the longevity and reliability of your HVAC system. Here are some tips:

Inspect Regularly: Check the fuse periodically for any signs of damage or wear.
Replace Promptly: If a fuse is blown, replace it immediately to prevent further damage to the system.
Use Quality Fuses: Always use high-quality fuses from reputable manufacturers to ensure reliability.
Keep Spare Fuses: Have spare 3 Amp Fuse HVAC fuses on hand to avoid downtime in case of a blown fuse.

Common Issues with 3 Amp Fuse HVAC

Several issues can arise with a 3 Amp Fuse HVAC. Understanding these problems can help in troubleshooting and maintaining the system effectively.

Frequent Blowing: If the fuse blows frequently, it may indicate an underlying issue such as a short circuit or overloaded circuit.
Corrosion: Corrosion on the fuse or fuse holder can cause poor electrical contact, leading to intermittent operation.
Incorrect Rating: Using a fuse with the wrong amperage rating can cause it to blow or fail to protect the circuit adequately.

🔧 Note: If you notice frequent blowing of the 3 Amp Fuse HVAC, it is advisable to consult a professional HVAC technician to diagnose and fix the underlying issue.

Troubleshooting 3 Amp Fuse HVAC Issues

When troubleshooting issues with a 3 Amp Fuse HVAC, follow these steps:

Check for Blown Fuse: Inspect the fuse to see if it is blown. A blown fuse will have a broken filament or a dark spot.
Inspect the Fuse Holder: Ensure the fuse holder is clean and free of corrosion. Clean it if necessary.
Test the Circuit: Use a multimeter to test the circuit for continuity and ensure there are no short circuits.
Replace the Fuse: If the fuse is blown, replace it with a new 3 Amp Fuse HVAC.
Monitor the System: After replacing the fuse, monitor the HVAC system to ensure it operates correctly.

Safety Precautions When Handling 3 Amp Fuse HVAC

Handling electrical components, including the 3 Amp Fuse HVAC, requires strict safety precautions. Here are some important safety tips:

Turn Off Power: Always turn off the power to the HVAC system before handling any electrical components.
Use Insulated Tools: Use insulated tools to handle fuses and other electrical parts to prevent electric shock.
Wear Protective Gear: Wear appropriate protective gear, including gloves and safety glasses.
Avoid Water: Keep electrical components dry and away from water to prevent short circuits.

🔧 Note: If you are not comfortable handling electrical components, it is best to consult a professional HVAC technician.

Conclusion

The 3 Amp Fuse HVAC is a critical component in the electrical system of HVAC units, providing essential protection against overcurrent situations. Understanding its functions, types, and maintenance requirements is crucial for ensuring the reliability and safety of your HVAC system. Regular inspection, prompt replacement of blown fuses, and adherence to safety precautions can help maintain the optimal performance of your HVAC system. By following the guidelines outlined in this post, you can effectively manage and troubleshoot issues related to the 3 Amp Fuse HVAC, ensuring a comfortable and safe environment.
