Understanding the 3/0 Copper Wire Ampacity is crucial for anyone involved in electrical work, whether you're a professional electrician or a DIY enthusiast. This type of wire is commonly used in residential, commercial, and industrial settings due to its high current-carrying capacity. Knowing the ampacity of 3/0 copper wire ensures that your electrical systems are safe and efficient.
What is 3⁄0 Copper Wire?
3⁄0 copper wire, often referred to as “three-aught” copper wire, is a thick gauge of copper wire used for high-current applications. The “3⁄0” designation refers to the American Wire Gauge (AWG) system, where lower numbers indicate thicker wires. This wire is typically used for feeder cables, service entrance conductors, and other high-demand electrical circuits.
Understanding Ampacity
Ampacity, short for ampere capacity, is the maximum current that a conductor can carry continuously under the conditions of use without exceeding its temperature rating. For 3⁄0 copper wire, the ampacity is determined by several factors, including the wire’s insulation type, ambient temperature, and the number of conductors bundled together.
Factors Affecting 3⁄0 Copper Wire Ampacity
Several factors influence the ampacity of 3⁄0 copper wire:

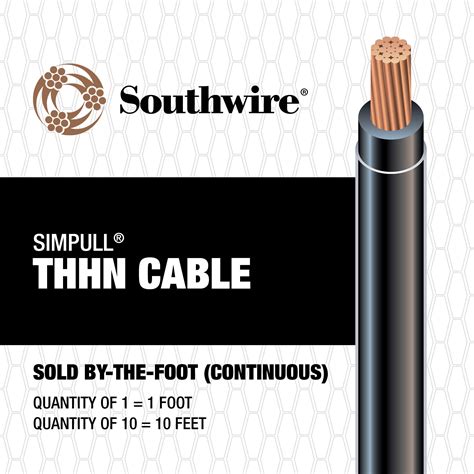

- Insulation Type: Different types of insulation have different temperature ratings. Common insulation types include THHN, THWN, and XHHW, each with its own ampacity ratings.
- Ambient Temperature: The surrounding temperature affects the wire’s ability to dissipate heat. Higher ambient temperatures reduce the wire’s ampacity.
- Conductor Bundling: When multiple conductors are bundled together, heat dissipation is reduced, which can lower the ampacity.
- Termination Points: The type of termination (e.g., connectors, splices) can also affect the ampacity due to differences in heat dissipation.
Standard Ampacity Ratings for 3⁄0 Copper Wire
The National Electrical Code (NEC) provides standard ampacity ratings for various wire gauges and insulation types. For 3⁄0 copper wire, the ampacity ratings are as follows:
| Insulation Type | Ampacity (Amperes) |
|---|---|
| THHN/THWN | 200 |
| XHHW | 200 |
| RHW | 175 |
| USE | 175 |
These ratings are based on an ambient temperature of 30°C (86°F) and a maximum conductor temperature of 75°C (167°F) for THHN/THWN and XHHW, and 90°C (194°F) for RHW and USE.
🔍 Note: Always refer to the NEC or local electrical codes for the most accurate and up-to-date ampacity ratings.
Adjusting Ampacity for Different Conditions
In many real-world scenarios, the conditions may differ from the standard ratings. Adjustments may be necessary to ensure safety and compliance with electrical codes. Here are some common adjustments:
- Ambient Temperature Correction: If the ambient temperature is higher than 30°C (86°F), the ampacity must be reduced. For example, at 40°C (104°F), the ampacity of 3/0 THHN/THWN copper wire would be reduced to approximately 175 amperes.
- Conductor Bundling Adjustment: When conductors are bundled together, the ampacity must be reduced to account for reduced heat dissipation. The NEC provides correction factors for different bundling configurations.
- Termination Adjustment: If the termination points have a lower temperature rating than the conductor, the ampacity must be adjusted accordingly. For example, if the termination points are rated for 60°C (140°F), the ampacity of 3/0 THHN/THWN copper wire would be reduced to approximately 150 amperes.
Safety Considerations
Working with high-current conductors like 3⁄0 copper wire requires careful attention to safety. Here are some key safety considerations:
- Proper Installation: Ensure that the wire is properly installed according to electrical codes and manufacturer guidelines. This includes using appropriate connectors, splices, and support hardware.
- Avoid Overloading: Never exceed the ampacity rating of the wire. Overloading can cause overheating, which can lead to fires and other hazards.
- Regular Inspection: Regularly inspect the wire and its connections for signs of wear, damage, or overheating. Replace any damaged components immediately.
- Use Appropriate PPE: Always use appropriate personal protective equipment (PPE) when working with electrical conductors, including insulated gloves, safety glasses, and protective clothing.
🛑 Note: Always follow local electrical codes and safety guidelines when working with electrical conductors.
Applications of 3⁄0 Copper Wire
3⁄0 copper wire is used in a variety of applications due to its high current-carrying capacity. Some common applications include:
- Residential Service Entrance: 3/0 copper wire is often used for the main service entrance in residential buildings, providing power from the utility pole to the main electrical panel.
- Commercial and Industrial Feeders: In commercial and industrial settings, 3/0 copper wire is used for feeder cables that distribute power from the main service panel to subpanels or other distribution points.
- Electric Vehicle Charging Stations: With the increasing popularity of electric vehicles, 3/0 copper wire is used in charging stations to handle the high current requirements.
- Renewable Energy Systems: In solar and wind power systems, 3/0 copper wire is used to transmit the generated power to the main electrical panel or battery storage systems.
Conclusion
Understanding the 3⁄0 Copper Wire Ampacity is essential for ensuring the safety and efficiency of your electrical systems. By considering factors such as insulation type, ambient temperature, and conductor bundling, you can determine the appropriate ampacity for your specific application. Always follow electrical codes and safety guidelines to ensure a safe and reliable installation. Whether you’re working on a residential, commercial, or industrial project, knowing the ampacity of 3⁄0 copper wire will help you make informed decisions and maintain a safe electrical environment.
