Levers are simple machines that make work easier by allowing us to move or lift heavy objects with less force. They consist of a rigid bar that pivots around a fixed point called a fulcrum. Levers are classified into three types based on the position of the fulcrum, load, and effort. This post will focus on 2nd class lever examples, their applications, and how they work.
Understanding Levers
Before diving into 2nd class lever examples, it's essential to understand the basic components of a lever:
- Fulcrum: The point around which the lever pivots.
- Load (or Resistance): The object being moved or lifted.
- Effort (or Force): The force applied to move the load.

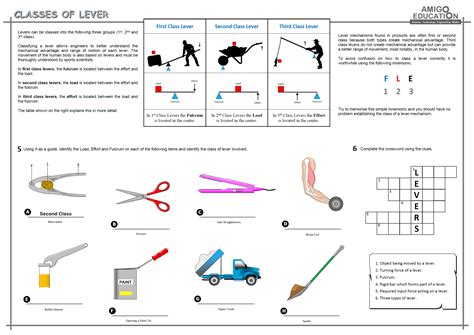

Levers are categorized into three classes based on the arrangement of these components:
- 1st Class Lever: The fulcrum is located between the load and the effort (e.g., seesaw, scissors).
- 2nd Class Lever: The load is between the fulcrum and the effort (e.g., wheelbarrow, nutcracker).
- 3rd Class Lever: The effort is between the fulcrum and the load (e.g., tweezers, human arm).
What are 2nd Class Lever Examples?
In a 2nd class lever, the load is positioned between the fulcrum and the effort. This class of lever provides a mechanical advantage, allowing the user to lift or move heavy objects with less force. The mechanical advantage is calculated as the ratio of the effort arm to the load arm. Here are some common 2nd class lever examples and their applications:
Wheelbarrow
The wheelbarrow is a classic example of a 2nd class lever. The wheel acts as the fulcrum, the load (e.g., soil, bricks) is placed in the bucket between the wheel and the handles, and the effort is applied through the handles. The wheelbarrow's design allows users to transport heavy loads with ease.
Nutcracker
A nutcracker is another common 2nd class lever example. The fulcrum is the hinge at the base, the load is the nut in the middle, and the effort is applied to the handles. By squeezing the handles together, the user generates enough force to crack open the nut.
Bottle Opener
Some bottle openers, particularly those with a curved shape, function as 2nd class levers. The fulcrum is the edge of the opener that rests on the bottle cap, the load is the cap itself, and the effort is applied to the handle. This design helps to pry open the cap with less force.
Door Handle
When opening a door, the handle acts as a 2nd class lever. The fulcrum is the hinge, the load is the door itself, and the effort is applied to the handle. This lever system allows users to open heavy doors with minimal force.
Staple Remover
A staple remover is a handy tool that also functions as a 2nd class lever. The fulcrum is the pivot point at the base, the load is the staple, and the effort is applied to the handles. By squeezing the handles, the user can remove staples from paper with ease.
Nail Clipper
A nail clipper is another 2nd class lever example found in everyday life. The fulcrum is the pivot point at the base, the load is the nail, and the effort is applied to the handles. This lever system enables users to cut their nails cleanly and efficiently.
Shovel
When using a shovel to lift soil or other materials, it functions as a 2nd class lever. The fulcrum is the user's foot or the ground, the load is the material being lifted, and the effort is applied to the handle. This lever system helps users to lift heavy loads with less force.
Crowbar
A crowbar is a versatile tool that can be used as a 2nd class lever for various tasks, such as lifting heavy objects or prying open lids. The fulcrum is the edge of the crowbar that rests on a stable surface, the load is the object being lifted or the lid being pried open, and the effort is applied to the handle.
Mechanical Advantage of 2nd Class Levers
The mechanical advantage of a lever is the ratio of the load to the effort required to move it. For 2nd class levers, the mechanical advantage is always greater than 1, meaning that the effort required is less than the load being moved. The mechanical advantage can be calculated using the following formula:
Mechanical Advantage = Load / Effort
Alternatively, it can be expressed in terms of the lengths of the effort arm (de) and the load arm (dl):
Mechanical Advantage = de / dl
For example, consider a wheelbarrow with an effort arm of 1 meter and a load arm of 0.25 meters. The mechanical advantage would be:
Mechanical Advantage = 1 m / 0.25 m = 4
This means that the wheelbarrow allows the user to lift a load that is four times heavier than the effort applied.
Applications of 2nd Class Levers
2nd class levers have numerous applications in everyday life and various industries. Some of the most common applications include:
- Construction: Tools like crowbars, shovels, and wheelbarrows are essential for lifting and moving heavy materials.
- Manufacturing: Machines and tools that require precise control of force, such as presses and stamping machines, often utilize 2nd class lever principles.
- Agriculture: Farming equipment like plows and harrows use 2nd class levers to break up soil and prepare fields for planting.
- Everyday Life: Household items like nutcrackers, bottle openers, and staple removers make daily tasks easier by reducing the force required.
2nd Class Lever Examples in the Human Body
The human body also utilizes 2nd class lever systems to perform various movements efficiently. Some examples include:
- Calf Raise: When performing a calf raise, the ball of the foot acts as the fulcrum, the heel is the load, and the calf muscles provide the effort. This lever system allows for efficient plantar flexion of the foot.
- Bicep Curl: During a bicep curl, the elbow acts as the fulcrum, the forearm and hand holding the weight are the load, and the bicep muscle provides the effort. This lever system enables the arm to lift heavy objects with less force.
These examples demonstrate how the human body uses 2nd class levers to optimize movement and reduce the force required for various activities.
2nd Class Lever Examples in Nature
Nature also provides examples of 2nd class levers, where organisms use this mechanical principle to their advantage. Some notable examples include:
- Plant Tendrils: Tendrils in plants, such as those found in peas and cucumbers, coil around supports and act as 2nd class levers. The fulcrum is the point where the tendril attaches to the plant, the load is the weight of the plant, and the effort is provided by the tendril's coiling action.
- Animal Claws: Some animals, like birds of prey, use their claws as 2nd class levers to grasp and lift prey. The fulcrum is the joint at the base of the claw, the load is the prey, and the effort is provided by the muscles in the animal's leg.
These natural examples illustrate how 2nd class levers are utilized in the biological world to enhance functionality and efficiency.
2nd Class Lever Examples in Machines
Many machines and mechanical systems employ 2nd class lever principles to perform their functions. Some examples include:
- Brakes: In a bicycle or car brake system, the fulcrum is the pivot point of the brake lever, the load is the brake pad pressing against the wheel, and the effort is applied by the user's hand.
- Pliers: Pliers use a 2nd class lever system to grip and manipulate objects. The fulcrum is the pivot point at the base, the load is the object being gripped, and the effort is applied to the handles.
- Scissors: Although scissors are primarily 1st class levers, the cutting action involves a 2nd class lever system. The fulcrum is the pivot point at the base, the load is the material being cut, and the effort is applied to the handles.
These machine examples demonstrate the versatility of 2nd class levers in various mechanical systems.
2nd Class Lever Examples in Sports
Sports equipment and techniques often utilize 2nd class lever principles to enhance performance. Some examples include:
- Golf Club: When swinging a golf club, the golfer's hands act as the fulcrum, the clubhead is the load, and the effort is provided by the golfer's body. This lever system allows for powerful and controlled swings.
- Tennis Racket: In a tennis swing, the player's hands act as the fulcrum, the racket head is the load, and the effort is provided by the player's body. This lever system enables powerful and accurate shots.
- Baseball Bat: When swinging a baseball bat, the hands act as the fulcrum, the barrel of the bat is the load, and the effort is provided by the batter's body. This lever system allows for powerful hits.
These sports examples illustrate how 2nd class levers are used to optimize performance and technique.
💡 Note: The mechanical advantage of a 2nd class lever can be increased by reducing the length of the load arm or increasing the length of the effort arm. However, this may also affect the stability and control of the lever system.
In conclusion, 2nd class levers are essential tools and principles found in various aspects of life, from everyday household items to complex machines and natural systems. Understanding 2nd class lever examples and their applications can provide insights into how these simple machines make work easier and more efficient. By recognizing the role of 2nd class levers in different contexts, we can appreciate their significance in optimizing force and movement.
